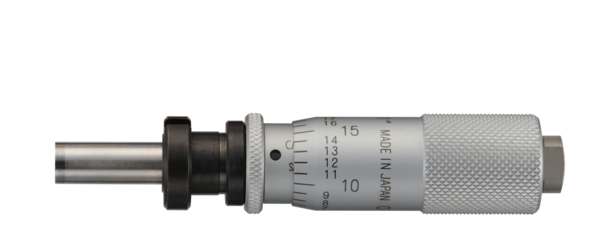

149-182-10 MITUTOYO Micrometer head – Common Type in Small Size with Carbide-Tipped Spindle – inch: 0-.5″
The MITUTOYO 149-182-10 Micrometer head – Common Type in Small Size with Carbide-Tipped Spindle – inch has the following specifications:
- Range: 0-.5″
- Accuracy: ±.0001″
- Stem dia.: .375″
- Stem: w/clamp nut
- Spindle face: Flat (carbide tip)
- Remarks: With spindle lock
Features:
- Type: Common Type in Small Size w/ Carbide-Tipped Spindle
- Carbide tipped measuring face.
Specifications:
- Available Graduations: .01mm or .001″
- Spindle Pitch: 0.5mm
- Spindle Face:
- Flat (carbide tip): More than HRA90
- Spherical (SR4)
- Long Spindle Type: More than HRC60
- Scale Surface: Hard-chrome plating
- Fixture Thickness for Clamp Nut: 11.5mm
