Mitutoyo SKU: 151-222
List price: €107.00 Offer price: €83.00 Excluding VAT


151-222_z3.eps

Microm. Head, Heavy Duty, 8 mm Spindle

0-25mm, 0,001mm

Item number: 151-222

£104.76 inc. VAT
£87.30 ex. VAT
Add to comparison

Attention (No-Russia-Clause): The contract is concluded on the condition that the parties agree that the items delivered by Mitutoyo will not be sold, (re-)exported or passed on directly or indirectly by the contractual partner to Russia, or for the use in Russia.
In the event of a breach of this agreement, Mitutoyo shall be entitled to unilaterally withdraw from individual/all existing delivery obligations and to demand compensation by the contractual partner for any damages incurred directly/indirectly in connection with this breach of the contract.
In addition, the export control provisions in of Mitutoyos “General Terms and Conditions of Sale” apply.

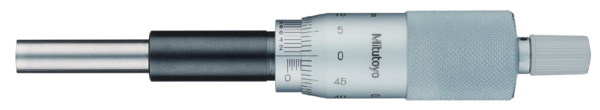

DescriptionA medium sized, standard, high resolution, non-digital Mitutoyo micrometer head with plain stem and heavy-duty Ø 8mm spindle fitted with flat tungsten-carbide tip. Ratchet stop.

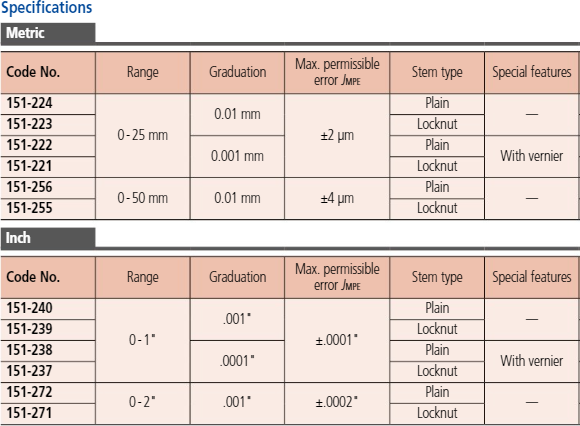

Specification
Digital/Analog:
Analog
Delivered:
In a paper box with spanner 200154
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0.001 mm
Max.
Permissible Error
J MPE:
±2 µm
Spindle end:
Flat
Spindle pitch:
0,5 mm
Stem Ø:
12 mm
Stem:
Plain
Special features:
Graduation 0.001 mm
Measuring face:
Carbide-tipped
Mass:
150 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
