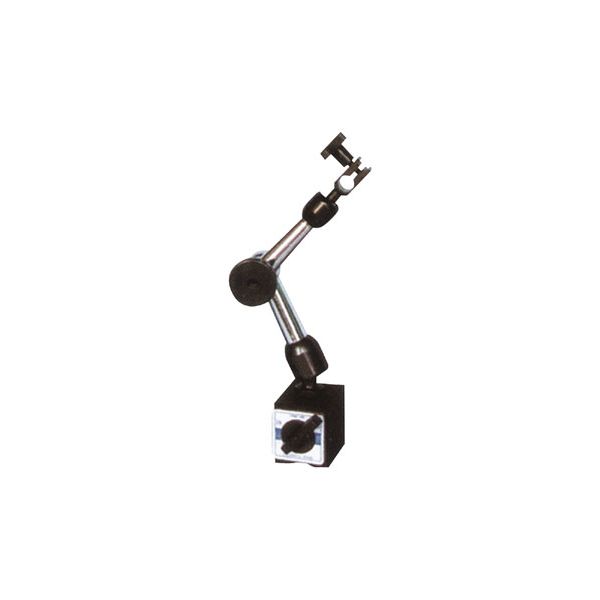

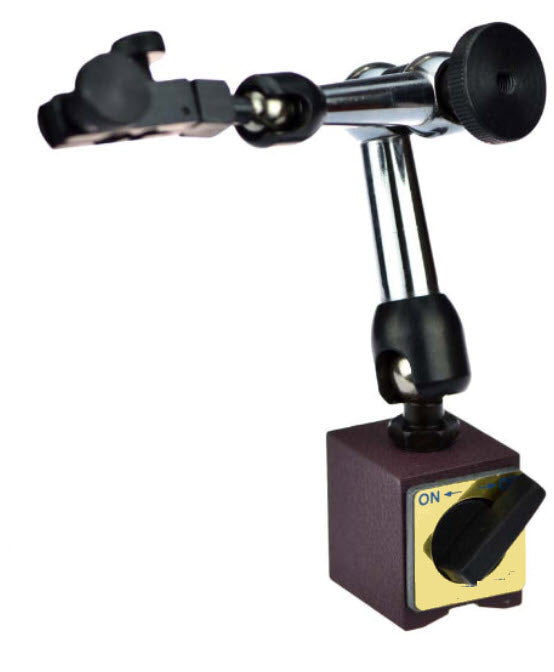

MHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mm
MHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mm
MHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mm
Roll over image to zoom in Click on image to zoom
MHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mmMHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mmMHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mm

MHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mm

MHC SKU: 625-2627
Price: €44.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
  • Pull Force (kg): 17
    Additional Information: Switch On/Off
    Pitch (mm): 1.25
    Thread Size:
    Product Name: Switch On/Off, 17Kg Mf-Hp Mini Magnetic Stand
    Type: Magnetic

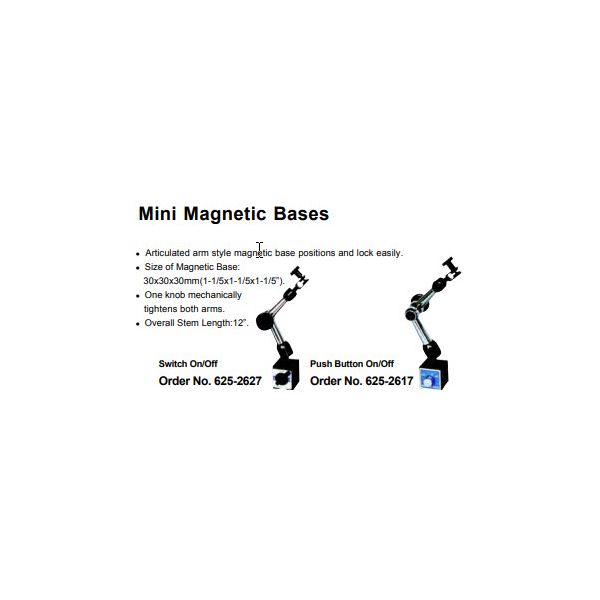

    Description: Articulated arm style magnetic base positions and locks easily. Fits dovetail. One knob mechanically tightens both arms. Overall stem length: 12".
    Size (mm): 30x30x30
    MHC 625-2627 Mini Magnetc Base 37.5 lbs force base 30 x 30 x 30mm Over all stem length 12"/300mm
    Type of stand Magnetic Bases
    Force 150N
    Top Arm 51mm L2
    Bottom Arm 56mm L1
    Stem Diameters 8mm
    Overall Height 347mm
    Base size 30x30x30mm/1.2x1.2x1.2"
    Bottom Thread M8
    Base Weight .6kg
    Colour Chrome
    Magnet Powerful on/off magnetic base

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
