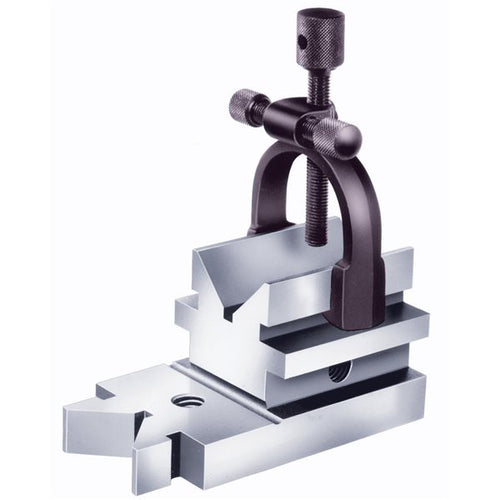

MHC 420-5481 Toolmakers Vee Block and clamp set Description : Vee Block Length x Width x Height : 3-1/2" x 1-7/8" x 1-7/8"/89 x 48 x 48mm Holding Capacity : 1-5/16"/33mm
Roll over image to zoom in Click on image to zoom
MHC 420-5481 Toolmakers Vee Block and clamp set Description : Vee Block Length x Width x Height : 3-1/2" x 1-7/8" x 1-7/8"/89 x 48 x 48mm Holding Capacity : 1-5/16"/33mm

MHC 420-5481 Toolmakers Vee Block and clamp set Description : Vee Block Length x Width x Height : 3-1/2" x 1-7/8" x 1-7/8"/89 x 48 x 48mm Holding Capacity : 1-5/16"/33mm

MHC SKU: 420-5481
Price:
€106.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Toolmakers’ V-Block & Clamp

Case hardened and ground. Two Vees, four tapped holes 3/8-16 UNC. Central hole in V for removing pins or drilling. Forged clamp has adjustable side screw to support the block and prevent tilting.

FEATURES:

  • Work Capacity: 1-5/16 (33mm) approx. dia.
  • Dimensions: 1-7/8" (48mm) sq. x 3-1/2" (90mm) long.
  • Accuracy: All surfaces (except V’s) parallel and square within .0002". Long V groove is central, parallel and square with all surfaces within .0003". Half inch V groove is central, parallel and square with all surfaces within .00015". V’s are 90° +.0000/-.0005".

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
