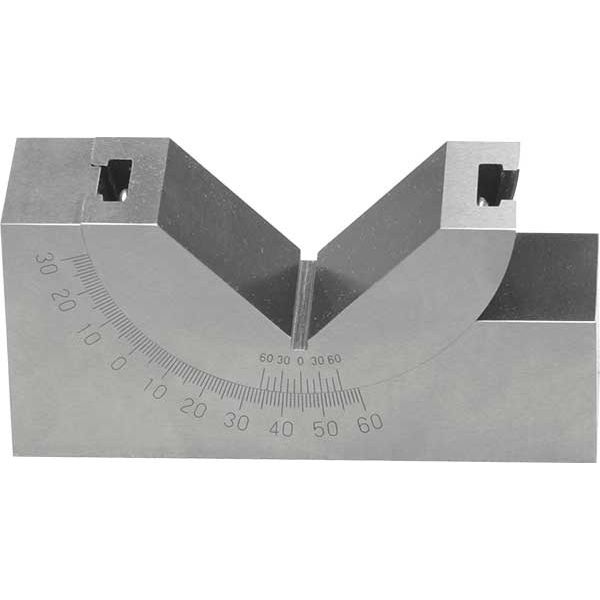

MHC 418-4950 Adjustable Angle Gauge/Tilting Vee Block 0-60, 90° 1-13/16" x 1-7/8" x 4"
MHC 418-4950 Adjustable Angle Gauge/Tilting Vee Block 0-60, 90° 1-13/16" x 1-7/8" x 4"
MHC 418-4950 Adjustable Angle Gauge/Tilting Vee Block 0-60, 90° 1-13/16" x 1-7/8" x 4"
Roll over image to zoom in Click on image to zoom
MHC 418-4950 Adjustable Angle Gauge/Tilting Vee Block 0-60, 90° 1-13/16" x 1-7/8" x 4"MHC 418-4950 Adjustable Angle Gauge/Tilting Vee Block 0-60, 90° 1-13/16" x 1-7/8" x 4"MHC 418-4950 Adjustable Angle Gauge/Tilting Vee Block 0-60, 90° 1-13/16" x 1-7/8" x 4"

MHC 418-4950 Adjustable Angle Gauge/Tilting Vee Block 0-60, 90° 1-13/16" x 1-7/8" x 4"

MHC SKU: 418-4950
Price: €83.00 Excluding VAT
  • Specifications:
    Manufactured from chrome steel
    Hardness: ≥ 58 HRC
    Micro lapped finish

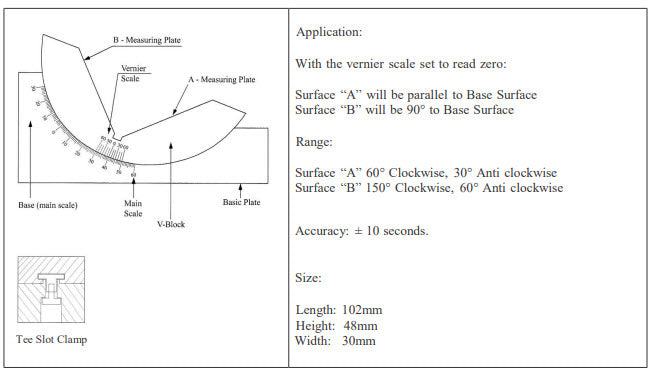

    Adjustable moving 90° vee located in a precision tee slot
    Vee movement: 60° clockwise, 30° anti clockwise
    Vernier scale reads in 10 second divisions
    Adjustable vee can be locked in position by 2 tee-nuts
  • Squareness .01mm
    Dimensions:
    Height: 46mm
    Width: 48mm
    Length: 102mm

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
