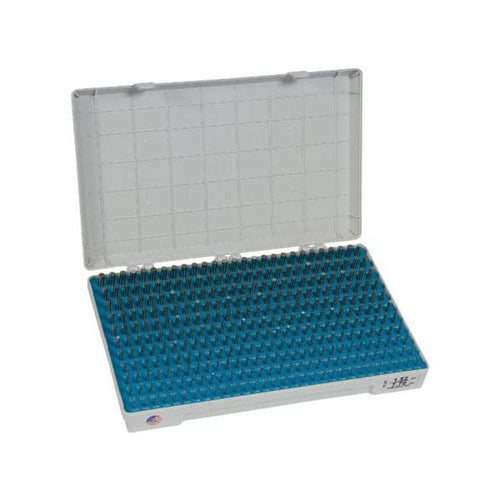

Meyer Class Z Metric Pin Gauge Set
Please specify PLUS or MINUS when ordering.
- PLUS (Go) tolerance = +0.0025mm / -0.000mm
- MINUS (No Go) tolerance = +0.000mm / -0.0025mm
-
Boxes and gauges both marked
Size and serial number laser etched on each piece (M-O not etched)
Material: 52100 Bearing Steel
No sharp edges
51mm overall length

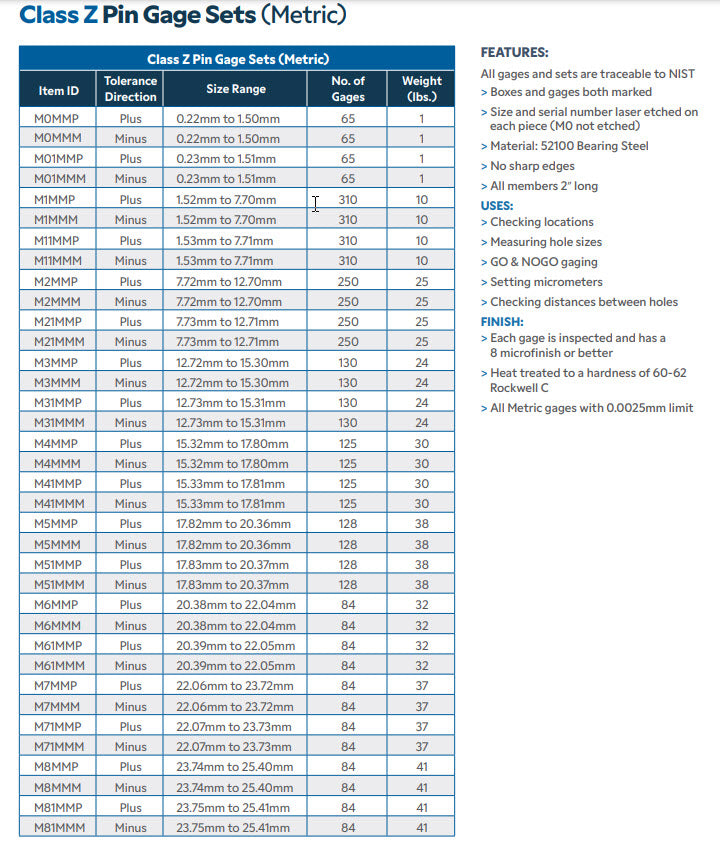

All sets in .02mm increments
USES:
Checking locations
Measuring hole sizes and depth

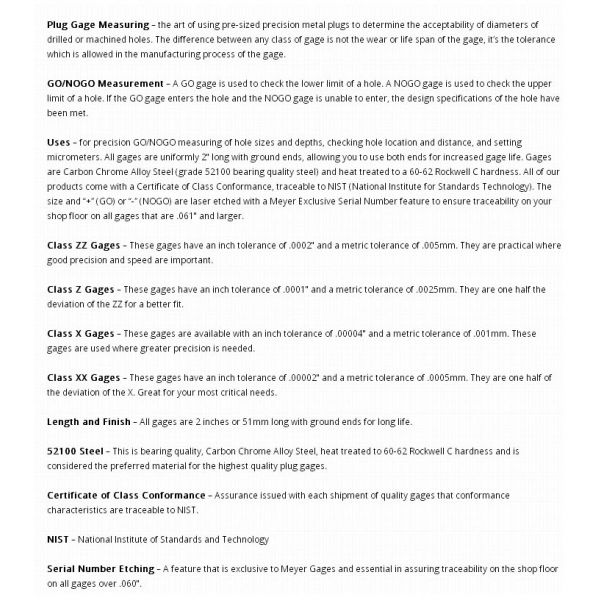

GO & NO/GO gauging
Setting micrometers
Checking distances between holes
FINISH: Centerless lapped
Each gauge is inspected and has a 8 microfinish or better
Heat treated to a hardness of 60-62 Rockwell C
Carriage is extra ex USA

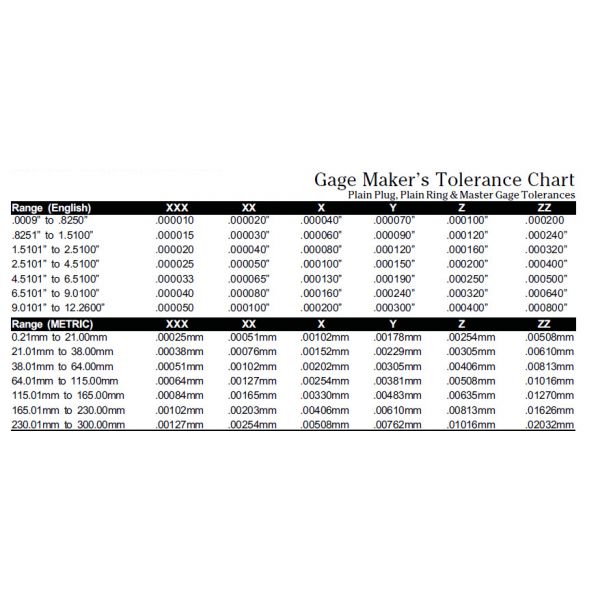

All metric gauges with .0025mm tolerance limit
