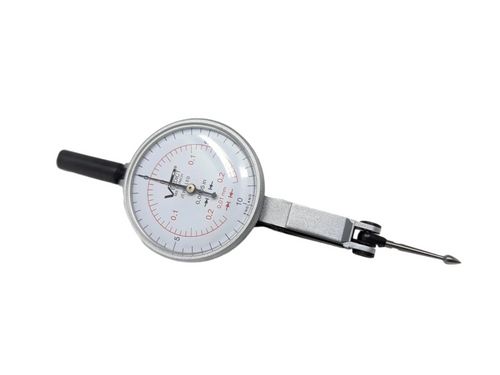

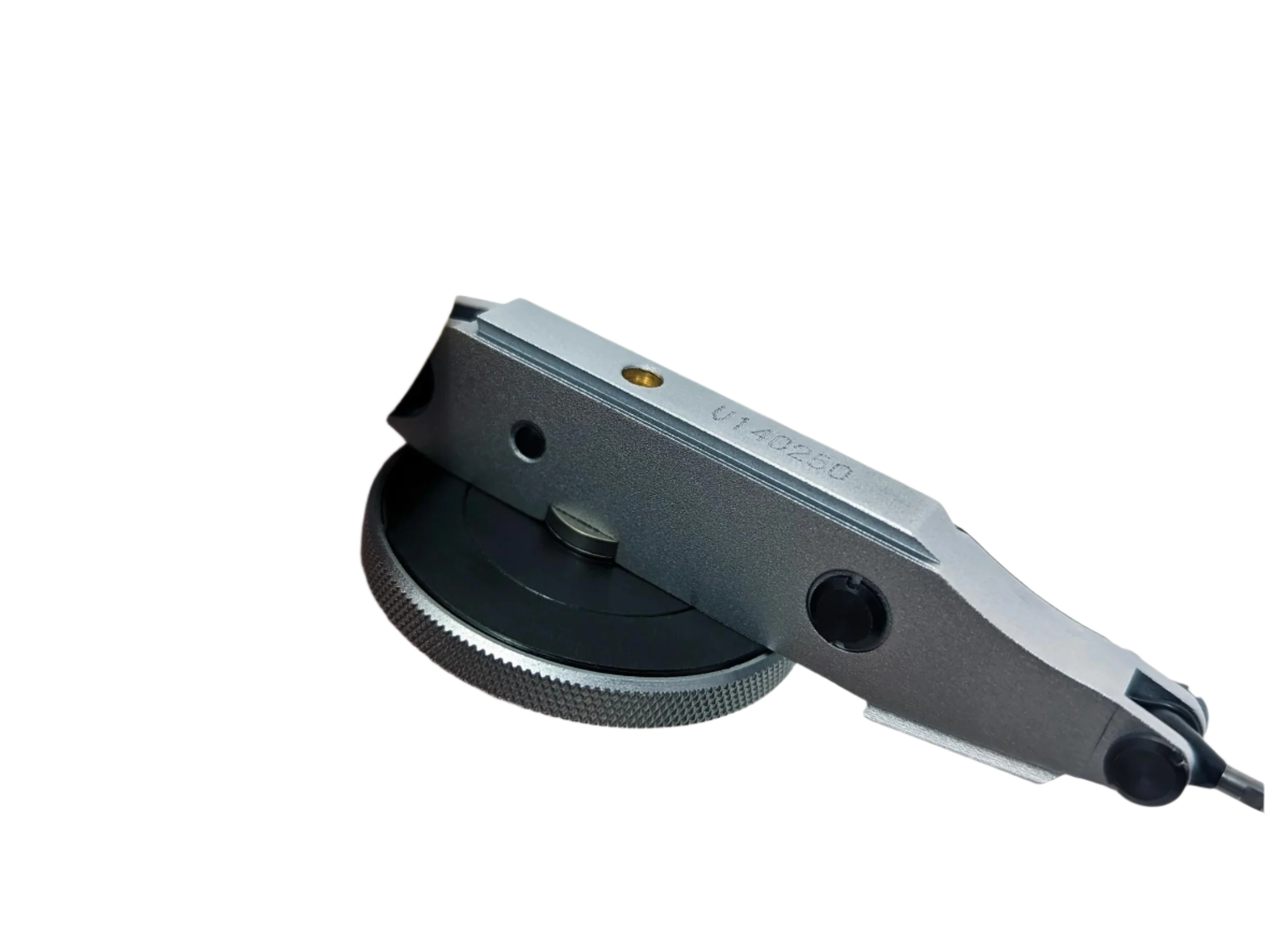

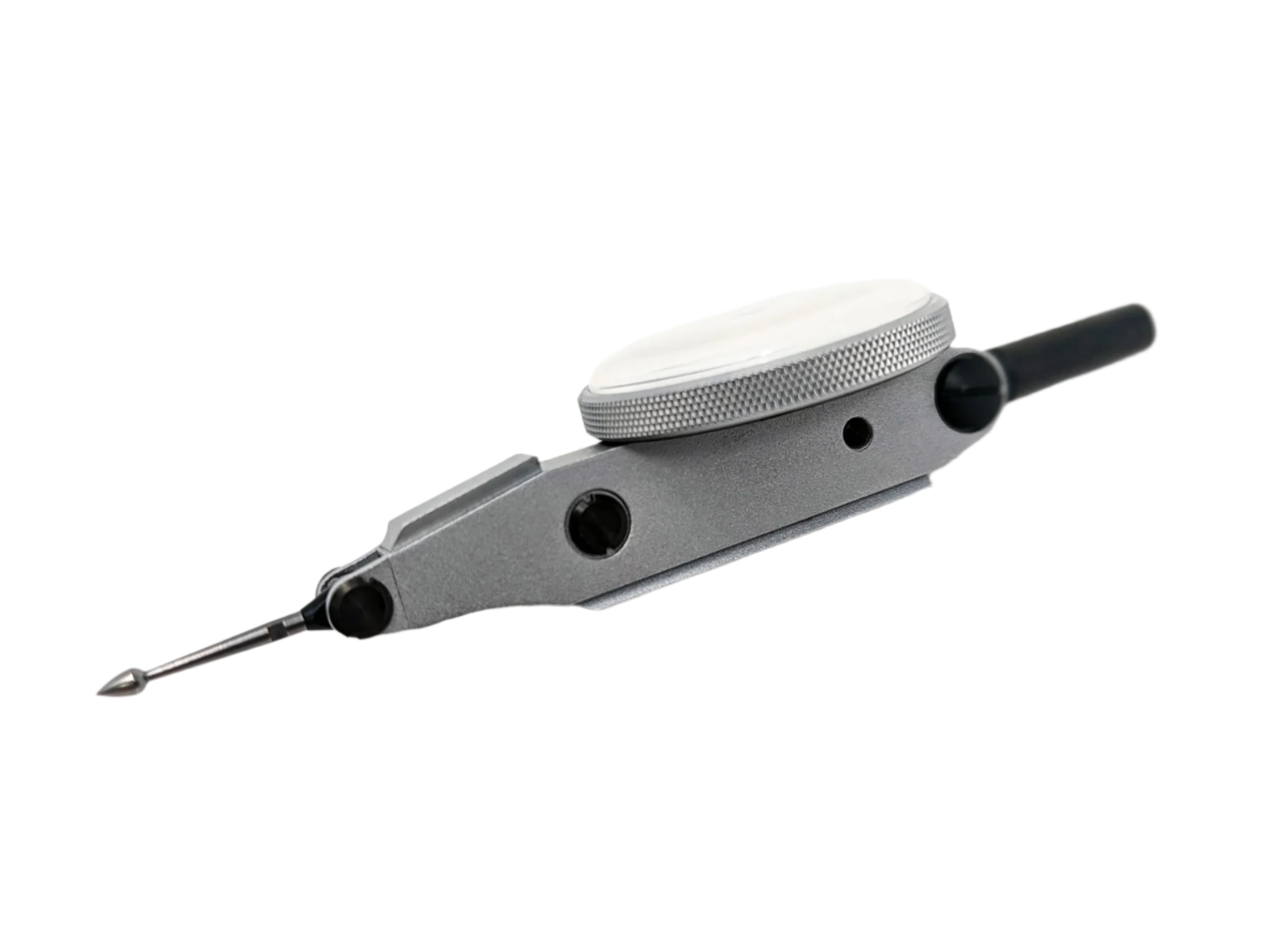

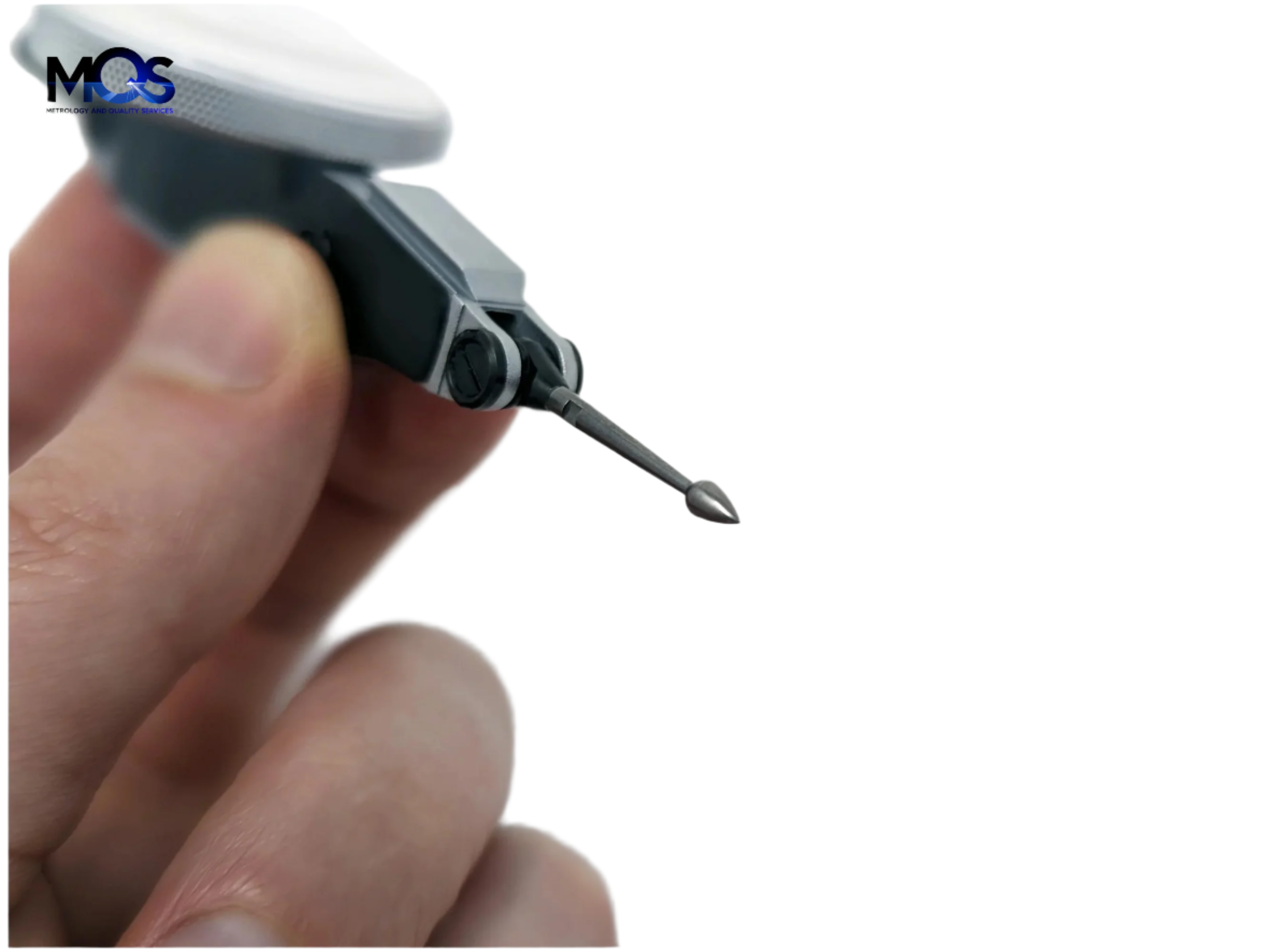

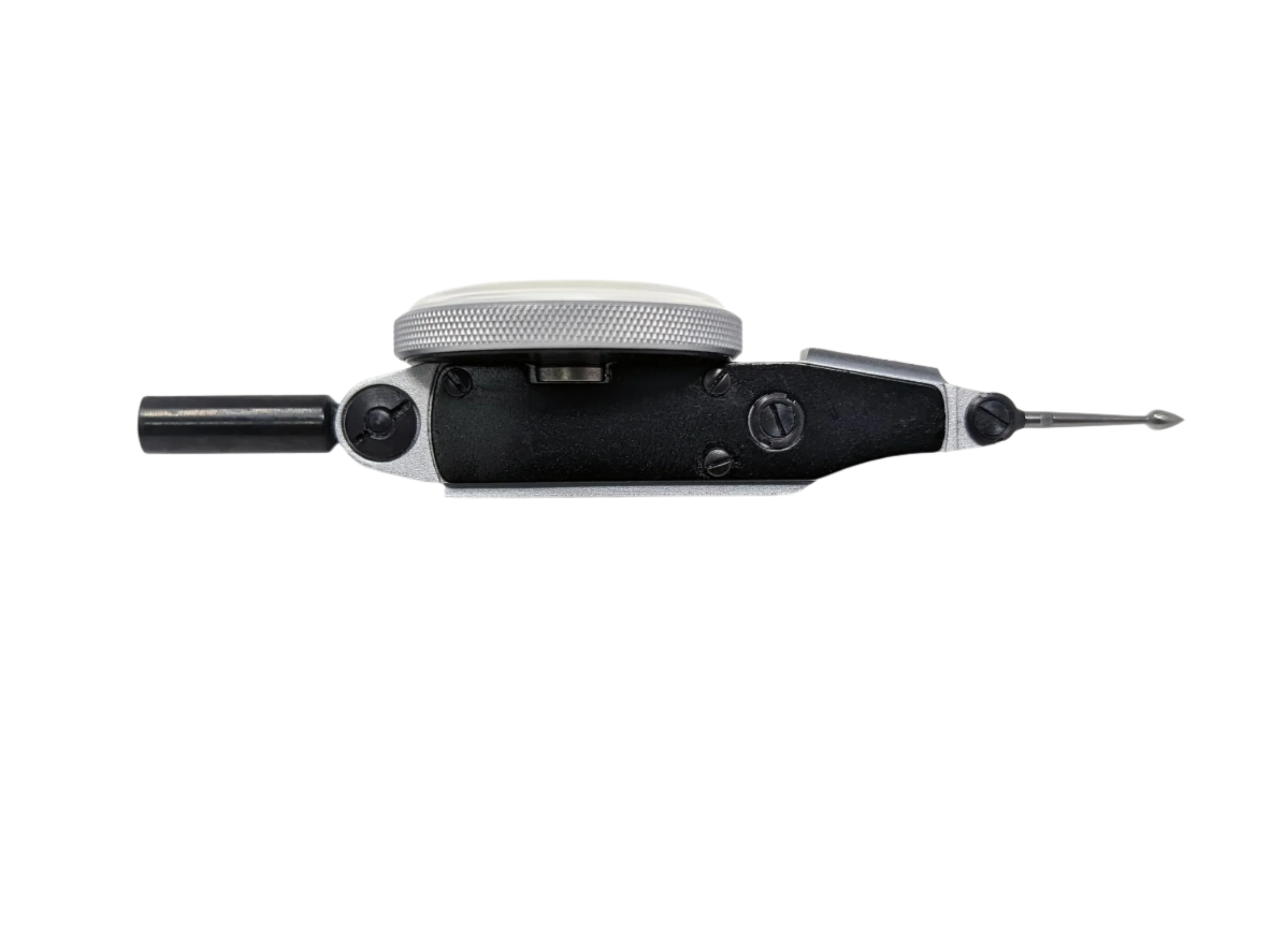

The world-famous Metrinch DTI is the British-engineered solution to the measuring challenges when working with both metric and imperial units.
The Metrinch DTI has a clear and easy-to-use display that gives instantly accurate measurements in both metric and imperial units without swapping tools or machine downtime.
Risks of error from conversion tables and repositioning are no longer an issue
Key features
- Worm mechanism
- Clamping facilities by means of dovetail or end spigot
- Dial rotates for zero setting
- Automatic reversal movement
- Jewelled mechanism
- Stylus swivels through an arc of 180 degrees
- Unidirectional hand travel
- Lever pivots are mounted in long-life ball bearings
- Fitted with 1/4 inch diameter spigot
- Swivel spigot standard on all models
Specifications
- Product code: 08/3001
- Model: Metrinch 1
- Dial diameter: 1 3/8 inch / 36 mm
- Reading: 0.0005 inch / 0.01 mm
- Graduation: 0-10-0
- Range: 0.020 inch / 0.44 mm
- Stylus length: 0.770 inch / 19.5 mm
