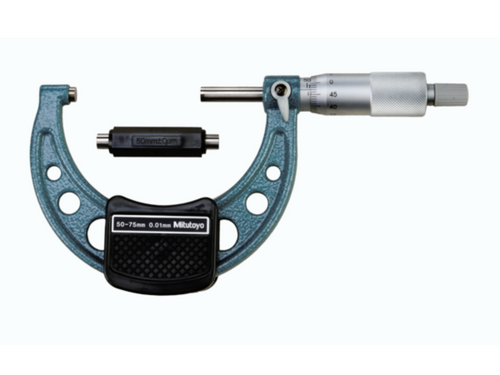

Metric Analogue Outside Micrometer 50-75mm, Ratchet Stop, 103-139-10

Series 103
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

      All images are for representation only.

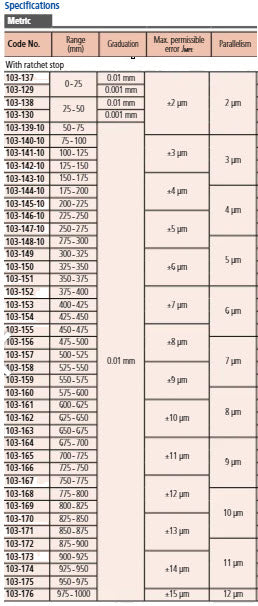

      Specifications

      • Digital/Analog: Analog
      • Inch-Metric: Metric
      • Range: 50- 75 mm
      • Graduation: 0,01 mm
      • Maximum Permissible Error J MPE: ±2 µm
      • Accuracy: ±2 µm
      • Flatness: 0,6 µm
      • Parallelism: 2 µm
      • Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
      • Scale: Thimble and sleeve satin chrome finish, ø18 mm
      • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
      • Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
      • Mass: 175 g

      Application information will be added shortly.
