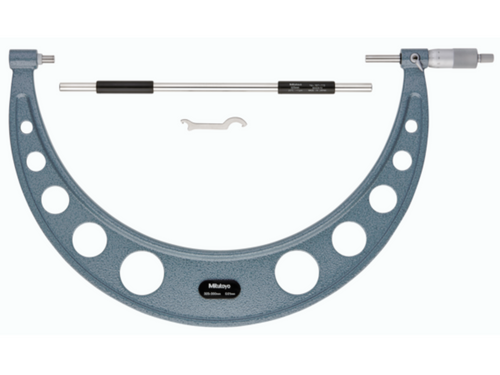

Metric Analogue Outside Micrometer 475-500mm, Ratchet Stop 103-156
Series 103
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

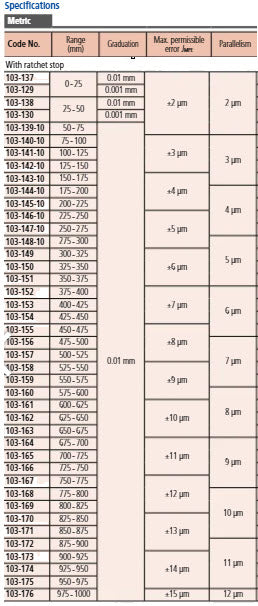

Specifications
-
Digital/Analog: Analog
-
Inch-Metric: Metric
-
Range: 475 - 500 mm
-
Graduation: 0,01 mm
-
Maximum Permissible Error J MPE: ±2 µm
-
Accuracy: ±2 µm
-
Flatness: 0,6 µm
-
Parallelism: 2 µm
-
Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
-
Scale: Thimble and sleeve satin chrome finish, ø18 mm
-
Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
-
Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
-
Mass: 175 g
