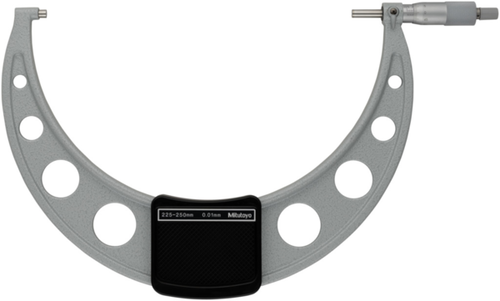

Mitutoyo Metric Analogue Outside Micrometer 225-250mm, Ratchet Stop 103-146-10
Roll over image to zoom in Click on image to zoom
Mitutoyo Metric Analogue Outside Micrometer 225-250mm, Ratchet Stop 103-146-10Mitutoyo Metric Analogue Outside Micrometer 225-250mm, Ratchet Stop 103-146-10Mitutoyo Metric Analogue Outside Micrometer 225-250mm, Ratchet Stop 103-146-10Mitutoyo Metric Analogue Outside Micrometer 225-250mm, Ratchet Stop 103-146-10

Mitutoyo Metric Analogue Outside Micrometer 225-250mm, Ratchet Stop 103-146-10

MitutoyoSKU: 103-146-10
Price:
€196.19 €268.75
 More payment options

SS - Product Addons

Select product(s) to see addons appear.

This message only appears in theme editor.

Description

Metric Analogue Outside Micrometer 225-250mm, Ratchet Stop 103-146-10

Series 103
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

    Specifications

    • Digital/Analog: Analog
    • Inch-Metric: Metric
    • Range: 225 - 250 mm
    • Graduation: 0,01 mm
    • Maximum Permissible Error J MPE: ±2 µm
    • Accuracy: ±2 µm
    • Flatness: 0,6 µm
    • Parallelism: 2 µm
    • Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
    • Scale: Thimble and sleeve satin chrome finish, ø18 mm
    • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
    • Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
    • Mass: 175 g

      All images are for representation only.
