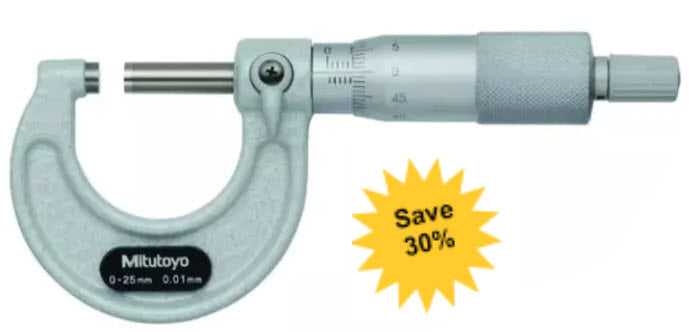

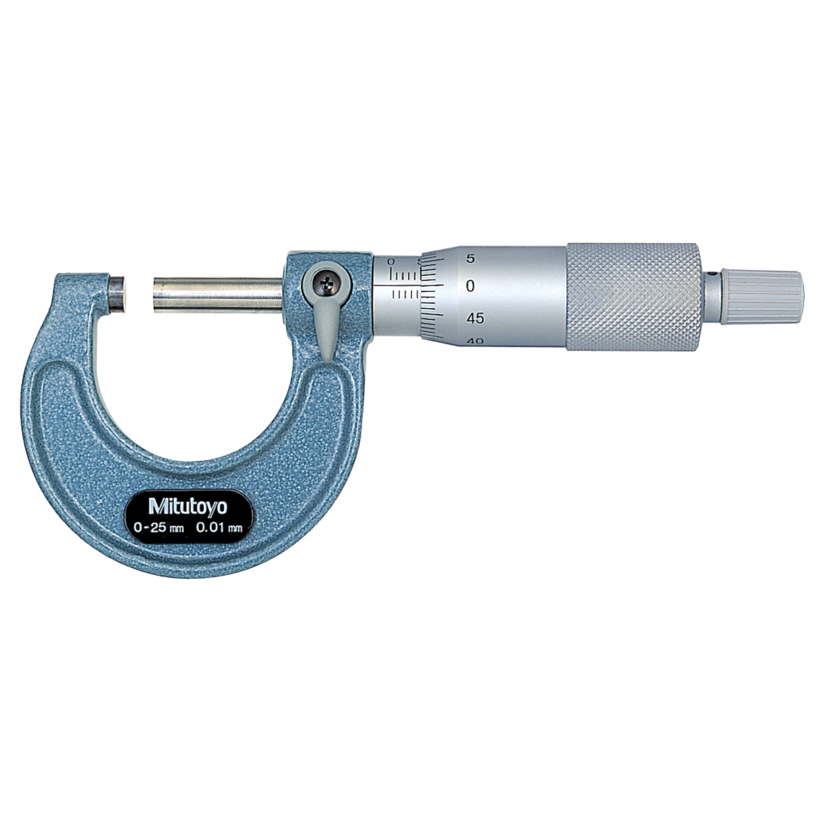

Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)
Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)
Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)
Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)
Roll over image to zoom in Click on image to zoom
Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)

Outside Micrometer. Ratchet Stop Economy Design Micrometer 0-25mm Mitutoyo 103-137 (0.01mm)

Mitutoyo SKU: 103-137
List price: €70.00 Offer price: €49.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Metric Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

    ,

    • Range: 0-25mm
    • Resolution: 0.01mm
    • Accuracy: ± 0.002mm
    • Parallelism: (2+R/100) μm – R = max range
    • Flatness: 0.0006mm
    • Measuring Force: 5-10N
    • Measuring face: Carbide-tipped, micro-lap finish
    • Measuring Spindle: With spindle lock, 6.35mm diameter
    • Spindle pitch: 0.5mm
    • Scale: Thimble and sleeve satin chrome finish, ø18mm
    • Ratchet stop
    • Analogue
    • Metric

    Application information will be added shortly.
