Mitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet Stop
Mitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet Stop
Mitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet Stop
Mitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet Stop
Roll over image to zoom in Click on image to zoom
Mitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet StopMitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet StopMitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet StopMitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet Stop

Mitutoyo Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet Stop

Mitutoyo SKU: 103-131
List price: €80.00 Offer price: €62.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

Imperial Analogue Outside Micrometer 0-1", 0.0001", Ratchet Stop 103-131 Ratchet Stop

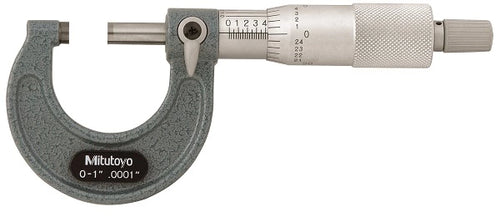

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
Specification
Digital/Analog:
Analog
Delivered:
Including box, key, certificate of inspection
Inch-Metric:
Inch
Range:
0 - 1 "
Graduation:
0,0001"
Max.
Permissible Error
J MPE:
±0,0001"
Flatness:
0,000024"
Parallelism:
0,00008"
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
175 g

    All images are for representation only.

    Technical information will be added shortly.

    Application information will be added shortly.

    Product videos and documents will be added shortly.
