Mark-10 User Configurable Adapter PTA / PTAF

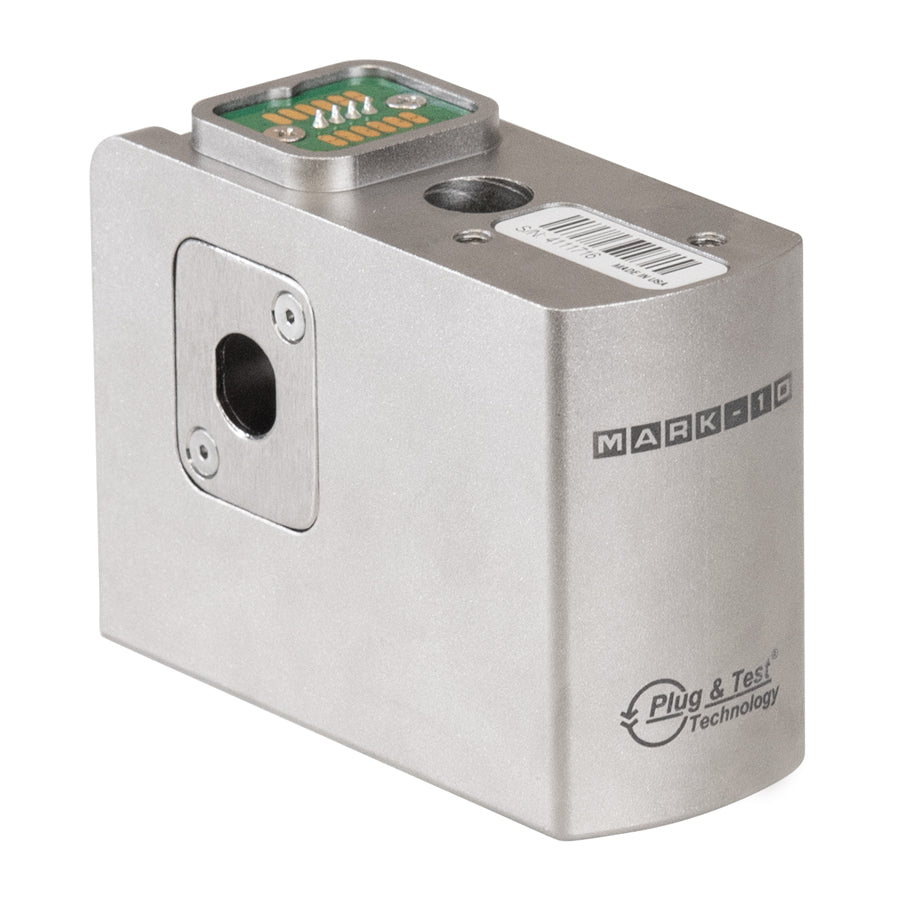

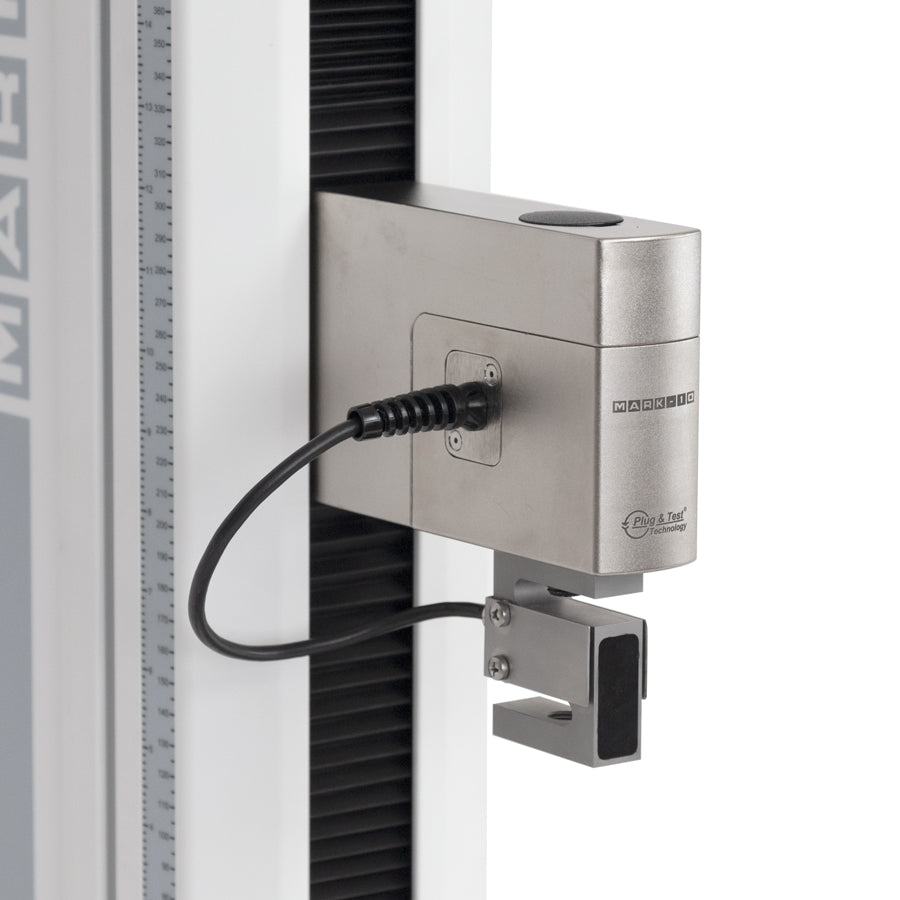

Plug & Test® user-configurable adapter for F105 / F305 / F505 / F505H test frames, with software

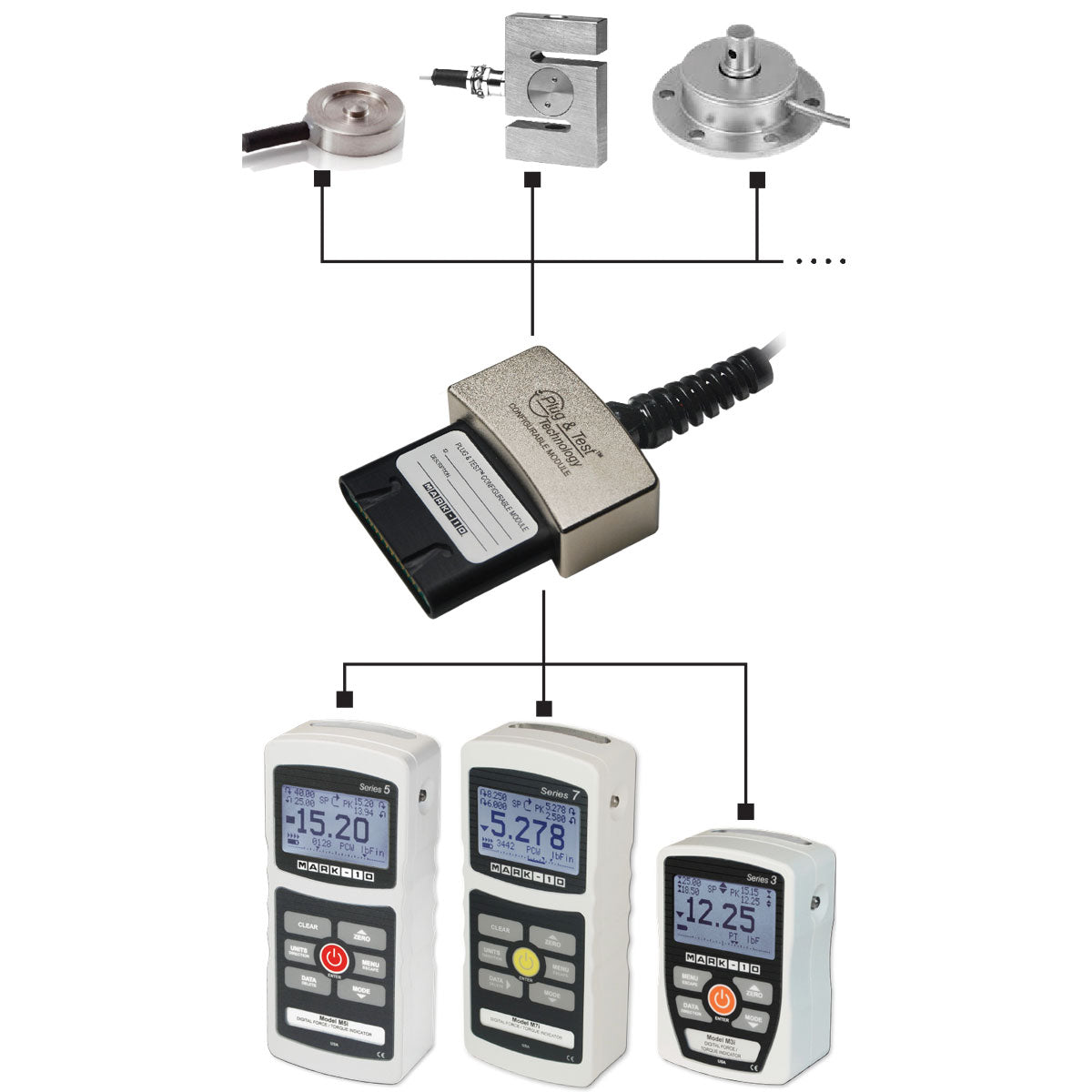

Connect common strain gage-based load cells, force sensors, and torque sensors to Models M7I, M5I, and M3I indicators and Series F test frames with these user-configurable adapters.
Sensor capacity and resolution may be configured via an included software utility, which includes a library of common force capacities from 0.12 to 750,000 lbF (0.5 N to 4,000 kN), and torque capacities from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm). An identification number may be configured, which is displayed upon indicator power-up or the indicator’s Information screen.
Through Plug & Test® technology, all configuration and calibration information is saved within the adapters. This flexibility allows for interchangeability between multiple sensors with any Mark-10 indicator or Series F test frame.
- Compatible with strain gage-based load cells, force sensors, and torque sensors

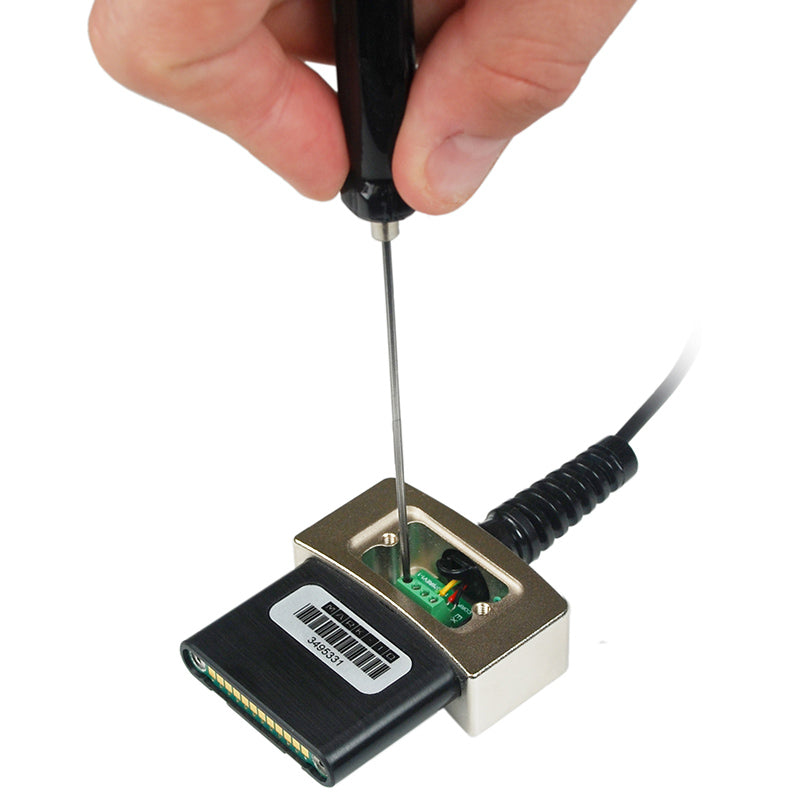

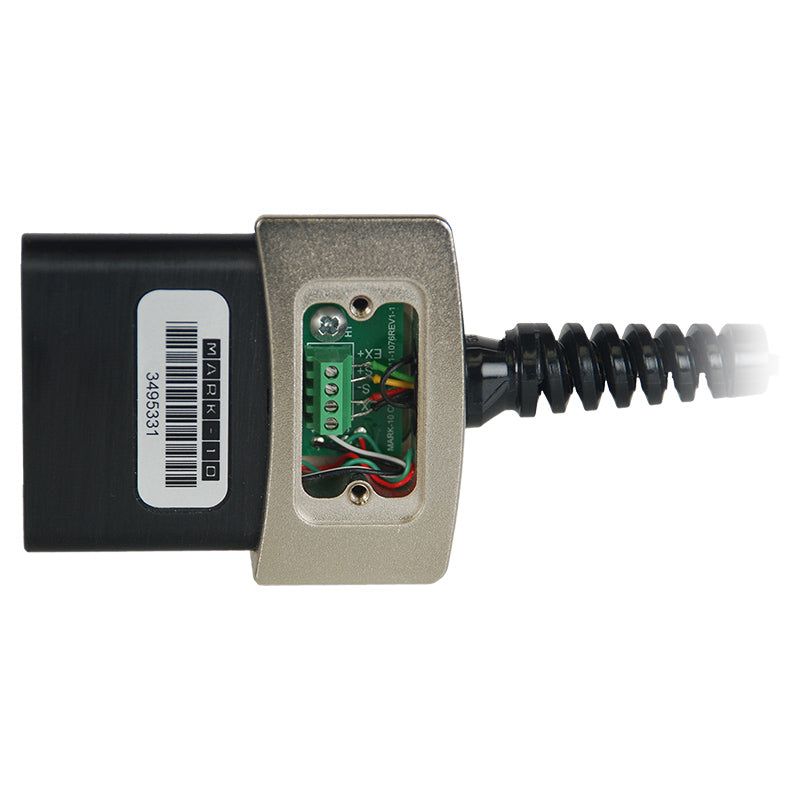

- Screw terminal block allows for easy connection of sensor wires
- Configure sensor capacity, resolution, and identification number via included software utility
- Program the adapter via USB or RS-232 through the indicator

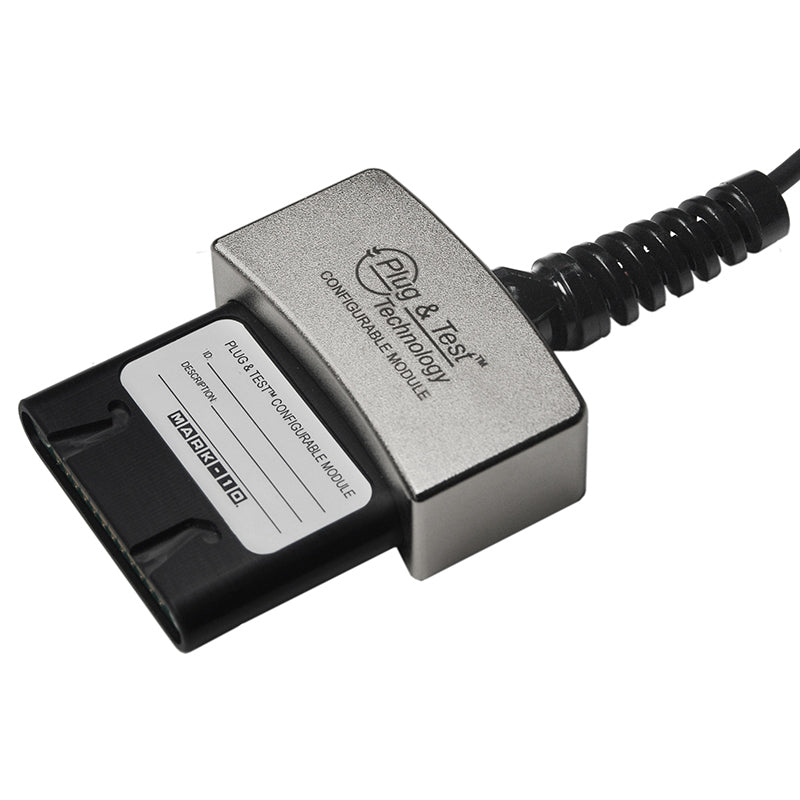

- Supplied with a strain relief, user-writeable identification label
