Mark-10 Series F + IntelliMESUR® IMT Advanced Tension / Compression Force Testers (Tablet Control Panel) 1,500 lbF / 6.7 kN F1505S-IMT

Series F + IntelliMESUR^® IMT Advanced Tension / Compression Force Testers (Pre-Configured Tablet Control Panel)

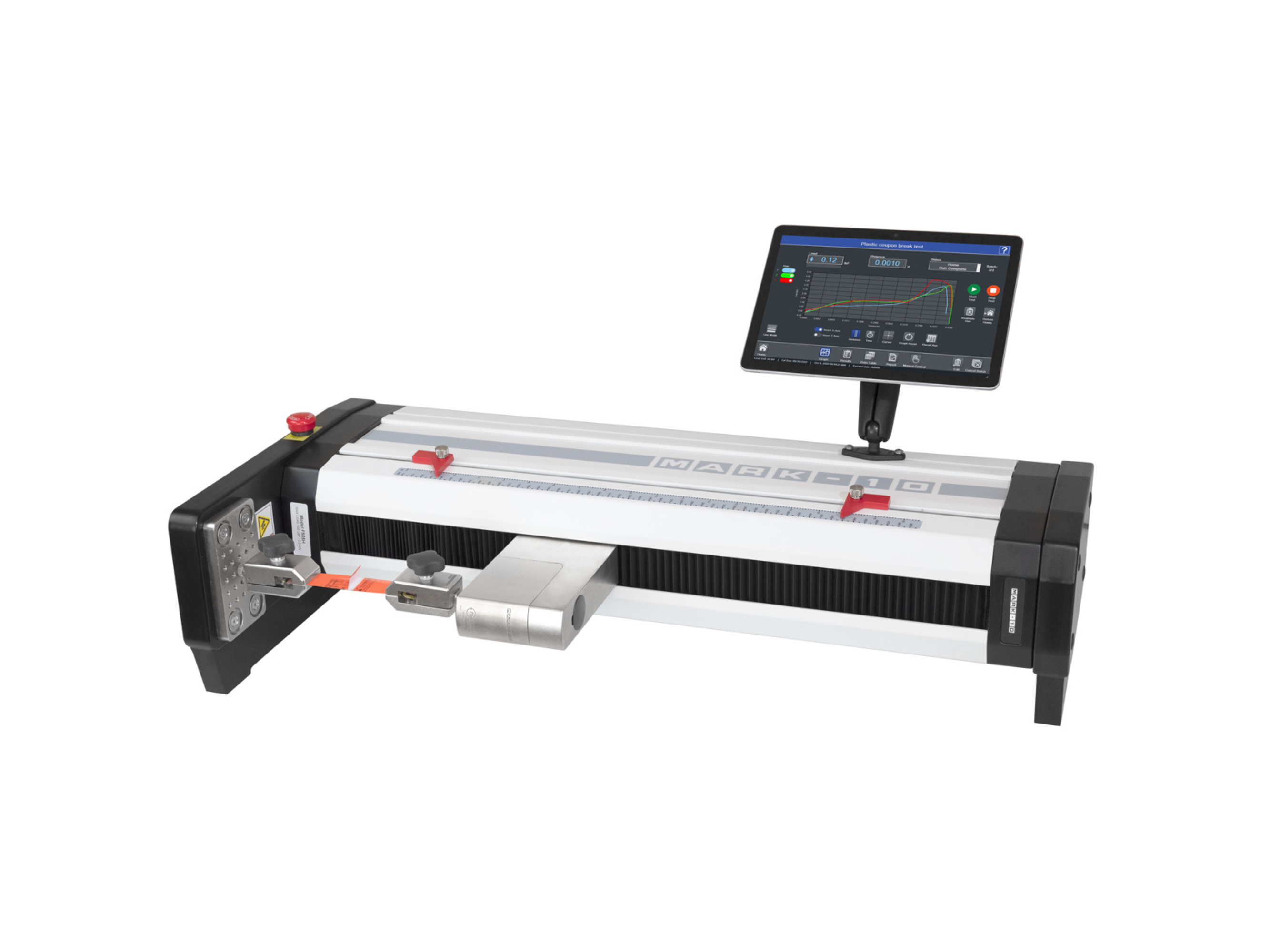

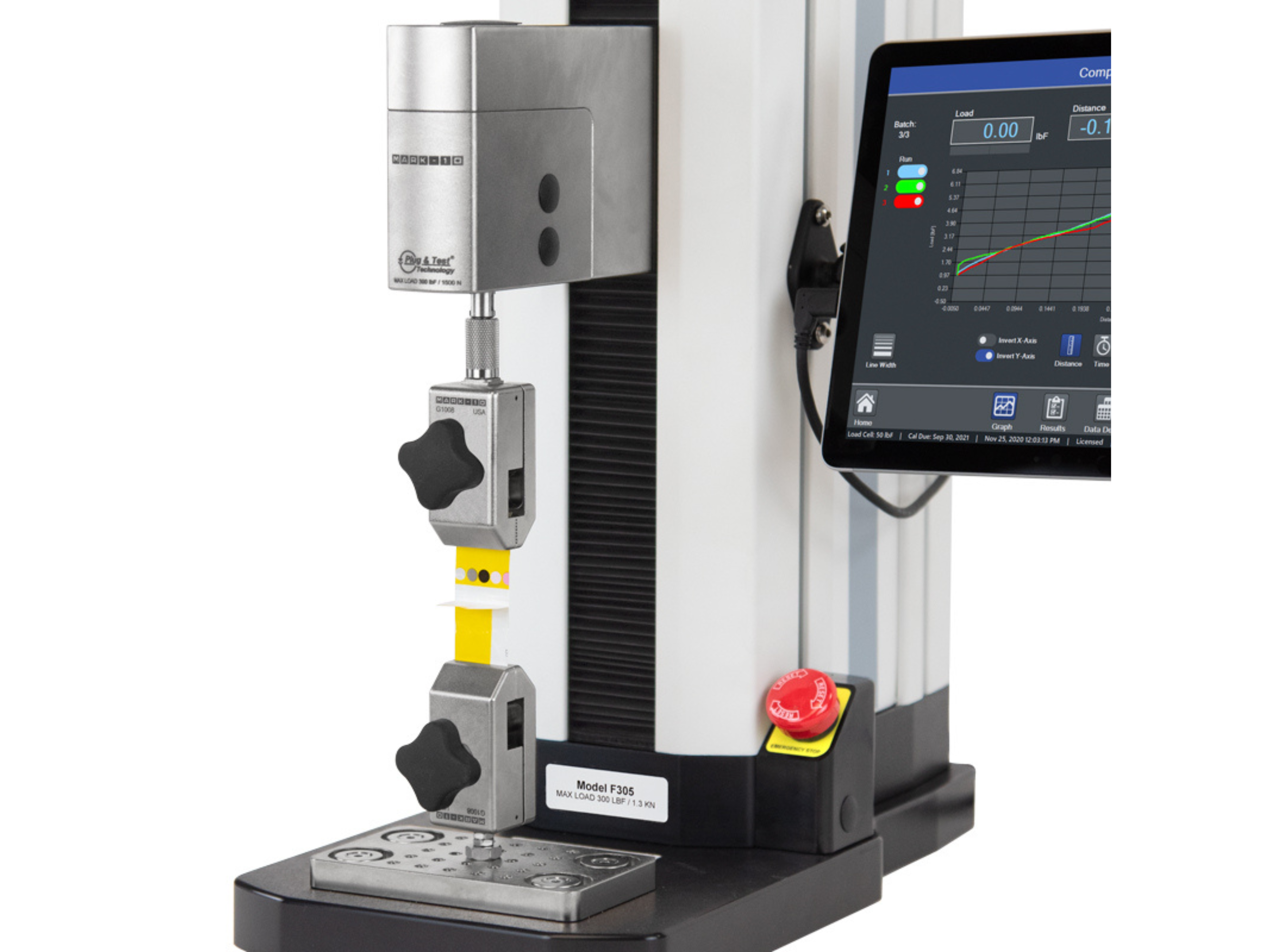

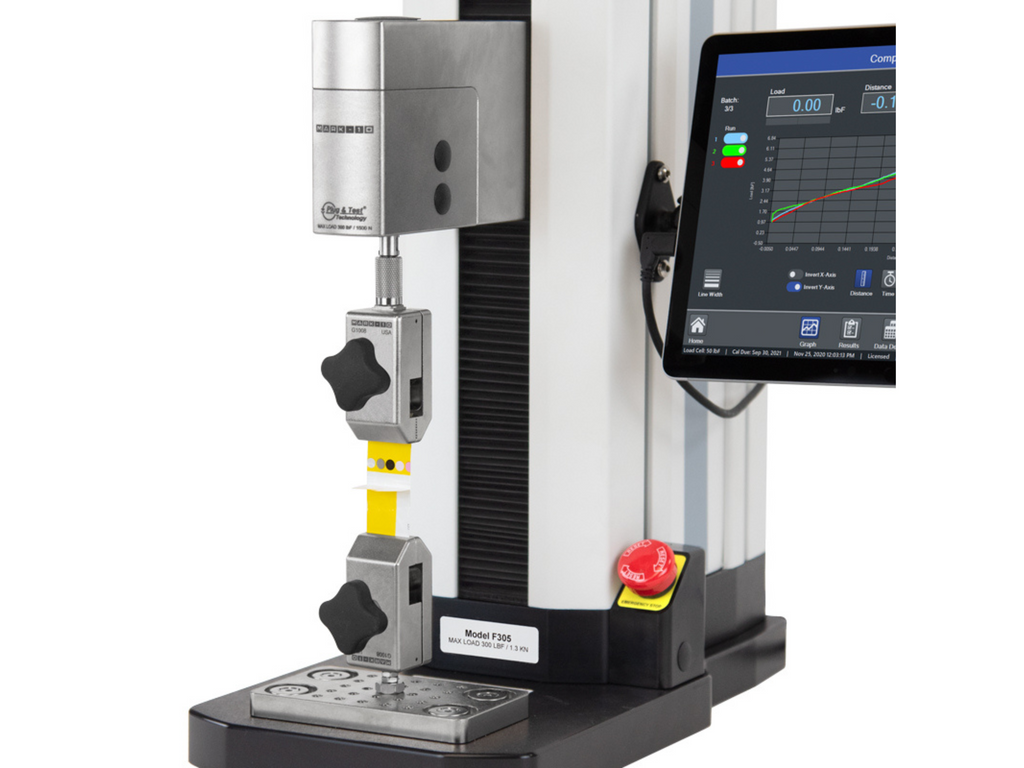

This family of force testers is designed for tension and compression force testing applications, with force capacities up to 500 lbF (2.2 kN). Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

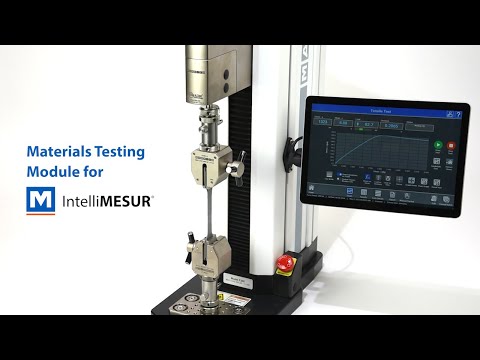

Characterize and analyze material behavior with the optional Materials Testing Calculations Module , featuring a suite of common calculations such as tensile strength, Young’s modulus, yield point, and more.

Coefficient of Friction (COF) Measurement is also available through an optional module.

Click to View Product Brochure

Click for IntelliMESUR® / EasyMESUR® Comparison Chart

*Please note this item is the base unit only and may require additional modules and accessories dependant on the exact measurement requirement. Please see related items or contact our sales team who will assist you with selecting the correct modules and accessories required.

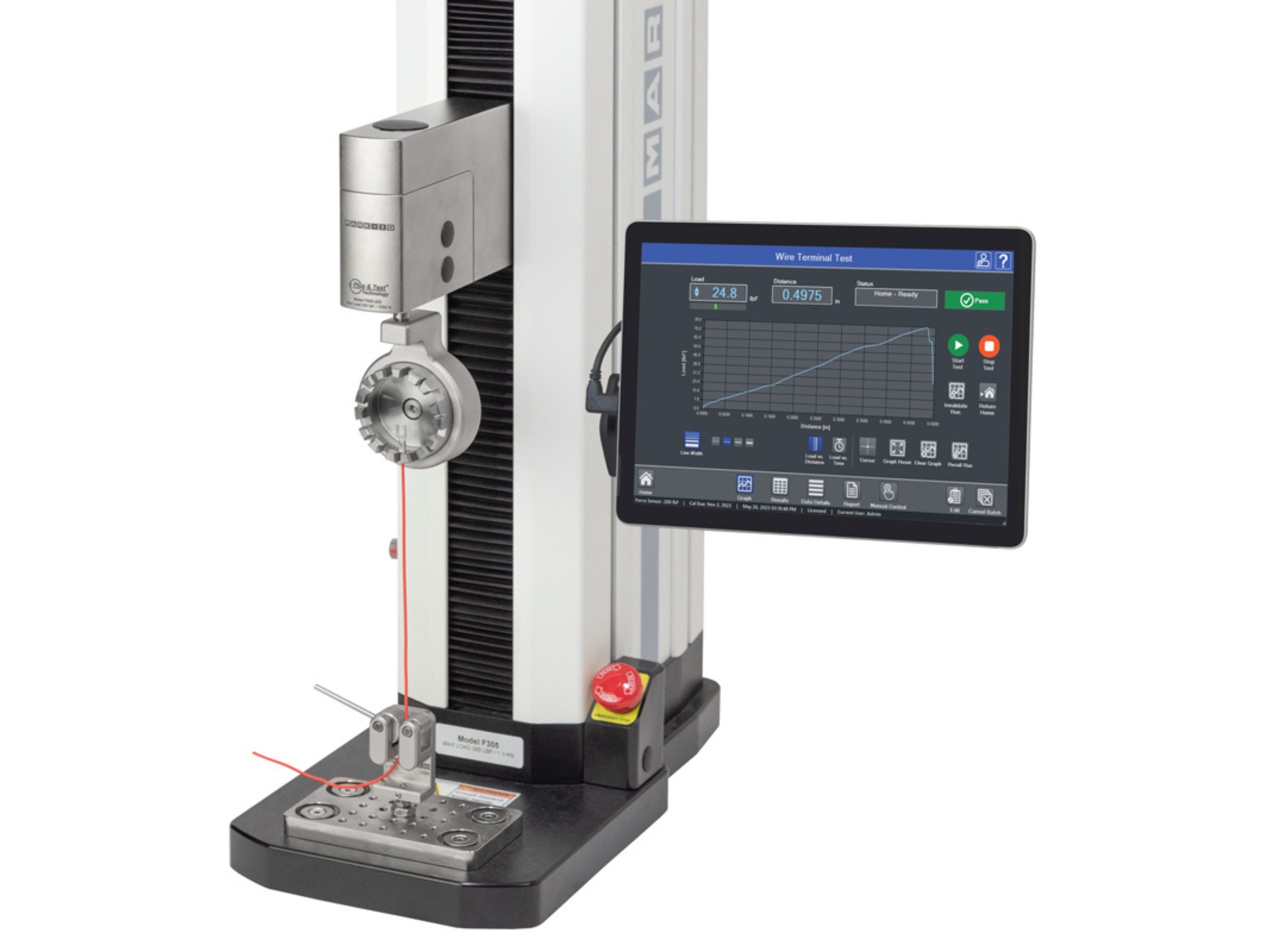

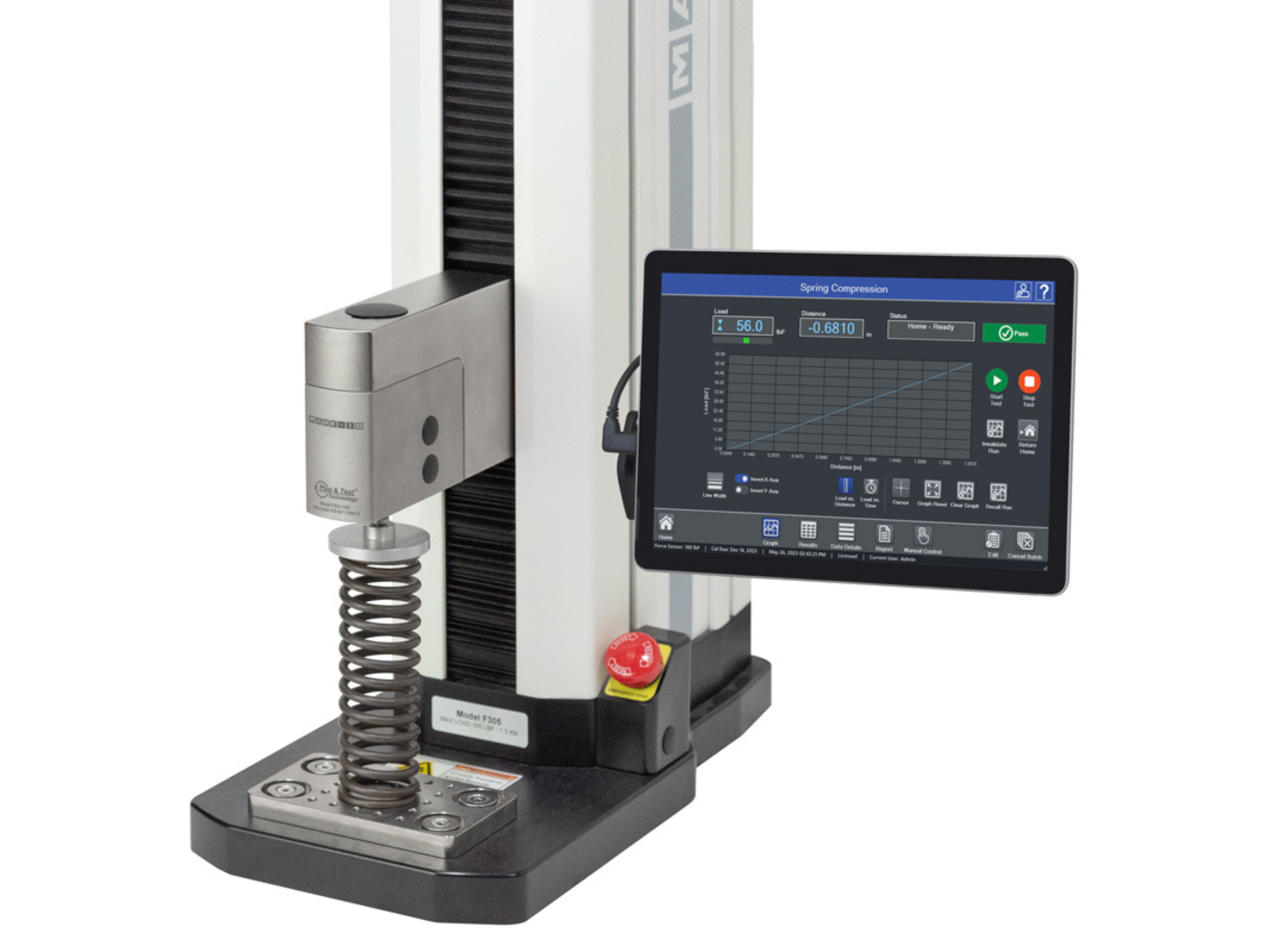

IntelliMESUR^® is an advanced, integrated force measurement system. Select a pre-loaded 10.1” tablet with mounting bracket or use your own Windows device. With IntelliMESUR^®, you can create and run a wide range of basic and multi-step tests, including:

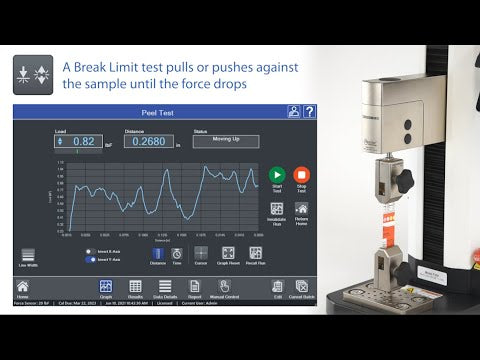

• Limit testing to a load, break, or distance
• Height measurement
• Load holding

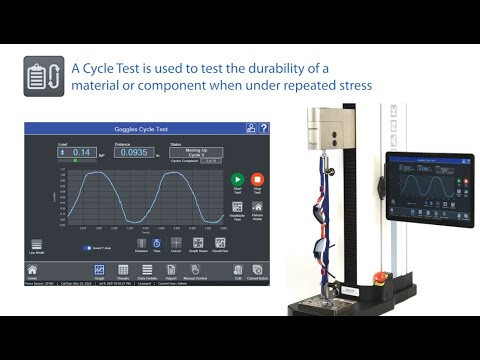

• Cycle testing

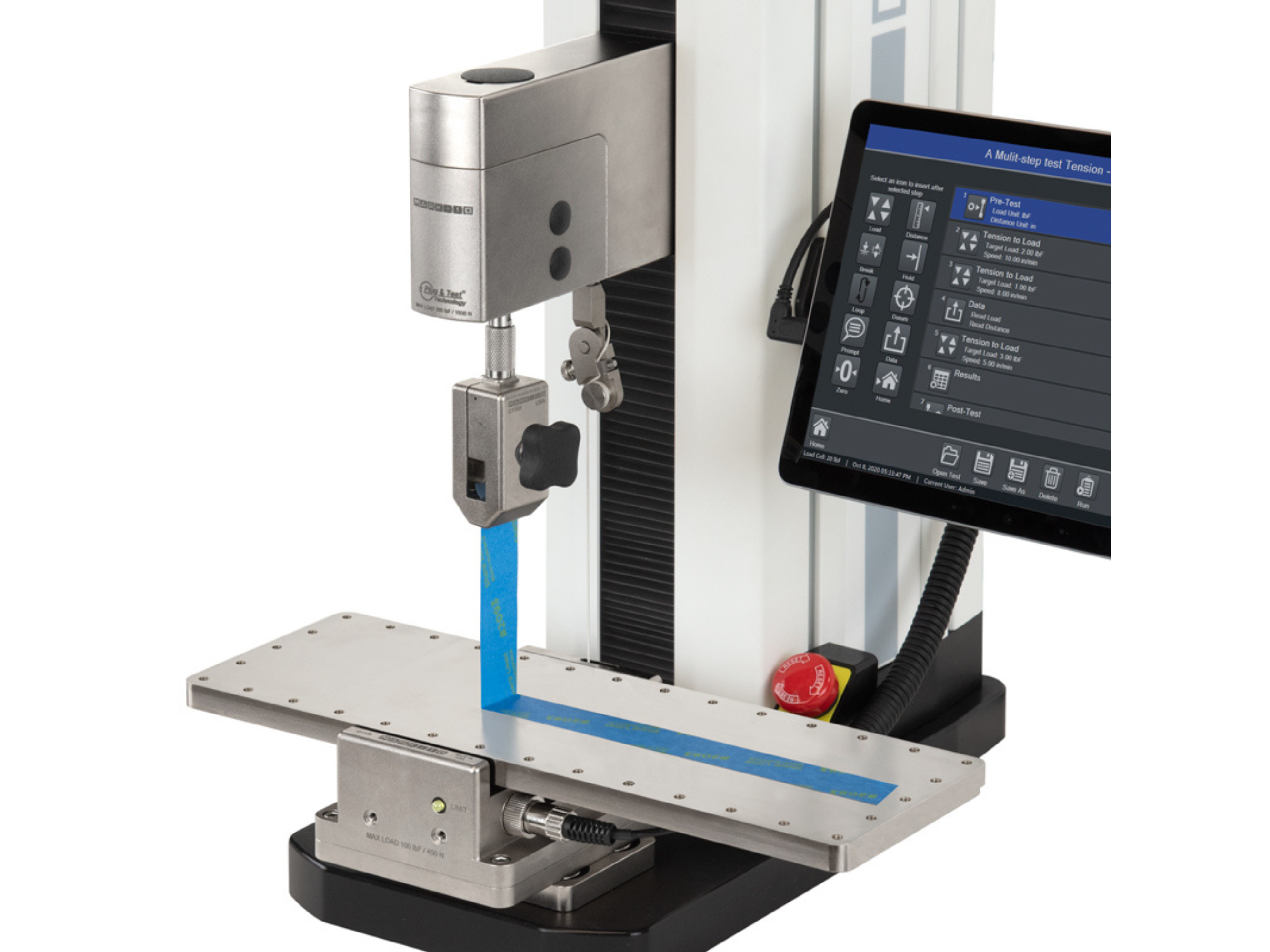

• Multi-step testing, utilizing any combination of the above functions
• Materials testing, including stress, strain, Young's modulus, yield point, and other common calculations via the optional Materials Testing Calculations module.

Run individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report.

For best performance with the Load Holding function, use a force sensor with a capacity as close as possible to the target load.

Included with base system.

The F105-IMT, F305-IMT, F505-IMT, and F505H-IMT advanced test frames include the following accessories:

(1) Control panel, mounting bracket, and hardware
(1) Mounting bracket, column end (F505H only)
(1) USB cable
(1) #10-32M medium hook
(1) 5/16-18M large hook
(1) #10-32F 2” diameter compression plate
(1) #10-32 F/F coupler
(1) Adapter, 5/16-18M to #10-32F
(1) Set screw, #10-32 x 3/4”
(2) Hex nut, #10-32
(1) Power cord
(1) Allen wrench set

F755 / F755S / F1505 / F1505S

The F755-IMT, F755S-IMT, F1505-IMT, and F1505S-IMT advanced test frames include the following accessories:

(1) Control panel, mounting bracket, and hardware
(1) USB cable
(1) Eye end kit for base
Includes: (1) eye end, (1) anchor pin, (2) lock rings
(2) Spanner wrench
(1) Power cord
(1) Allen wrench set
