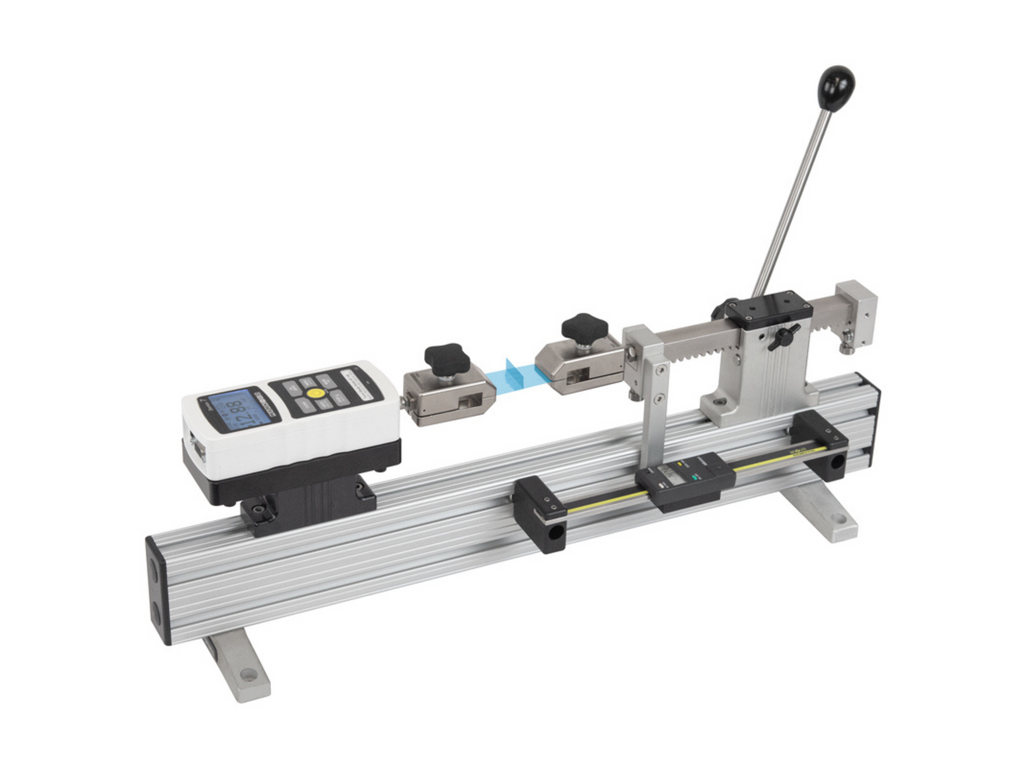

Manual Test Stand TSA750H
The lever operated Force Measurement Test Stand Model TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750 lbF (3.75 kN) of tensile or compressive force. Made of rugged, machined aluminium components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.
The TSA750 and TSA750H test stands include the following accessories:
- (1) G1009 compression plate, 2” dia.
- (1) G1028 small hook
- (1) G1030 thread adapter, 5/16-18M to #10-32F
- (1) G1035 large hook
- (1) G1038 medium hook
- (1) G1041 thread adapter, 5/16-18M to #1/2-20M
- (1) G1042 extra large hook
- (1) G1091 thread coupler, 1/2-20F, 1/2-20F
- (1) 5/16-18 stud with jam nuts
- (1) #10-32 stud with jam nuts
- (1) Wrench 5/16-3/8
- (1) Base (TSA750)
- (2) Mounting leg with hardware (TSA750H)
- (1) Additional column cap with hardware (TSA750H)
- (4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
- (4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
- (1) Allen wrench set
The stand will require a force gauge and accessories, sold separately.
All images are for representation only.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
