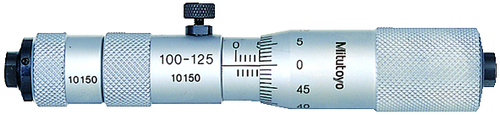

Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001
Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001
Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001
Roll over image to zoom in Click on image to zoom
Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001

Main Unit for Tubular Inside Micrometer Carbide Tipped 100-125mm 139-001

Mitutoyo SKU: 139-001
List price: €216.00 Offer price: €168.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
A Mitutoyo inside micrometer head designed for standalone use or in conjunction with optional interchangeable extension tubes. Satin-chrome finished.

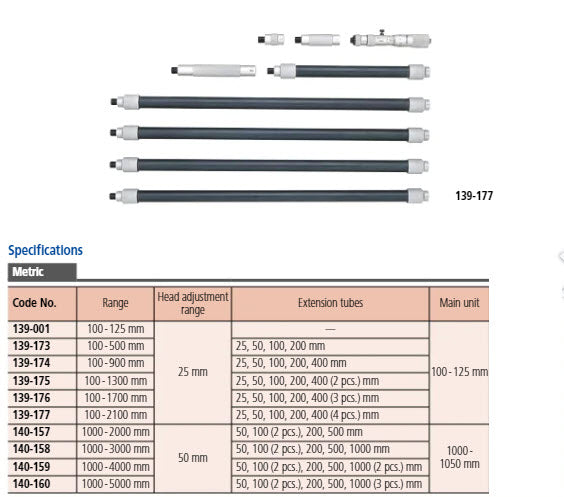

Specification
Inch-Metric:
Metric
Measuring span:
25 mm
10 mm(139-203), 25 mm (139-204)
Graduation:
0.01 mm
Spindle feed error:
3 µm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
ø13 mm (139-203, 139-204)
Measuring spindle:
Spindle pitch 0.5 mm
Measuring face:
Carbide
Extension rods:
25 mm, 50 mm, 100 mm, 200 mm
Delivered:
Including box, key, micrometer head
Mass:
490 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
