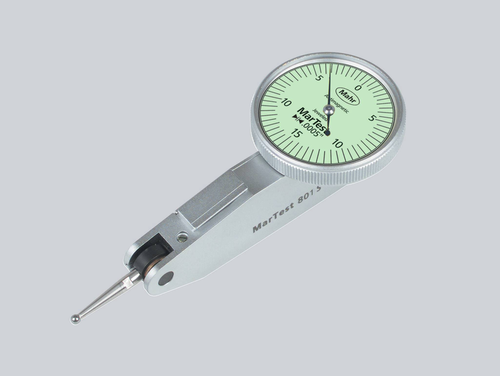

Mahr Test Indicators 4305950, Graduation: .0005", Model: 801S, Range: .030", Face diameter 1.1'', Force 0.15N

Roll over image to zoom in Click on image to zoom

Mahr Test Indicators 4305950, Graduation: .0005", Model: 801S, Range: .030", Face diameter 1.1'', Force 0.15N

Name: Mahr Test Indicators 4305950, Graduation: .0005", Model: 801S, Range: .030", Face diameter 1.1'', Force 0.15N
Brand: Mahr
SKU: 4305950
Price: 86.0 EUR
Availability: InStock

MahrSKU: 4305950

Price:

€86.00 €144.00

Quantity:

MarTest 801 S

Art. no. 4305950

Test indicator MarTest 801 S
Factory standard
Measuring range mm: ± .015"
Graduation value inches: .0005"
Package contains: spanner for changing the styli, stylus dia. ø .0008", mounting shaft 800a3/8, test certificate, instruction manual, case

Product type	801 S
Measuring range inches	± .015"
Pointer rotation (inches)	.03"
Deviation range fe (inches)	.0004"
Total deviation range fges (inches)	.0005"
Partial measuring range ft (inches)	.0002"
Measuring value hysteresis fu (inches)	.00012"
Repeatability fw (inches)	.0001"
Measuring force	0.15 N
Figur on dial face	15-0-15
Dial color	Green
Scale diameter (inches)	1.1"

Product Information
Part Number	4305950
Measuring Range	0.03"
Graduation	.0005"
Accuracy	.0004"
Unit of Measurement	Inch
Measuring Force	0.15N
Tip Diameter Ø	.08"
Length	.58"
Repeatability	±.0001"
Dial Reading	15-0-15
Dial Face Size Ø	1.1"
Hysteresis	.00012"
Stem Diameter	3/8"
Calibration Code	CAL14 B1

Mahr Test Indicators 4305950, Graduation: .0005", Model: 801S, Range: .030", Face diameter 1.1'', Force 0.15N

Description

MarTest 801 S

Art. no. 4305950
