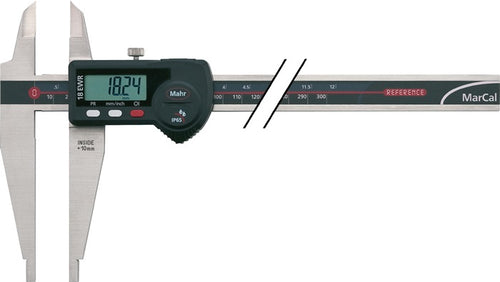

Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65
Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65
Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65
Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65
Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65
Roll over image to zoom in Click on image to zoom
Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65

Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65

Mahr SKU: 4112714
List price: €1,840.00 Offer price: €920.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

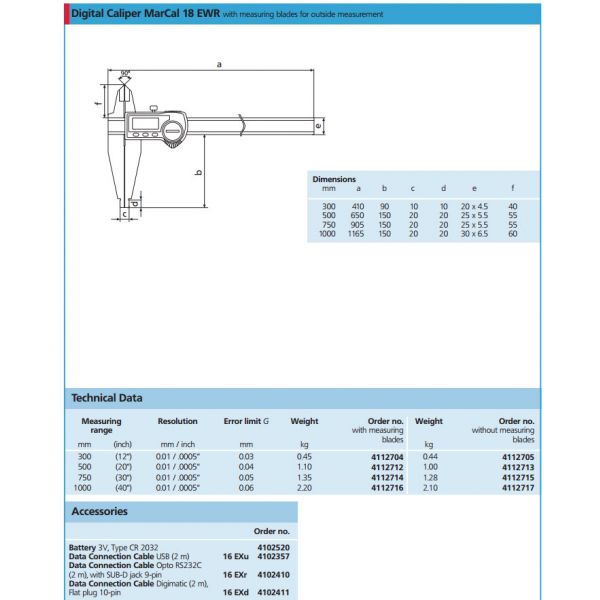

  • Measuring Range: 0-30″/750mm
  • Resolution: .0005″/0.01mm
  • Error Limit: .002″/0.05mm
  • Weight: 1.35kg

Features:

  • AUTO-ON/OFF
  • DATA (Data transmission via connection cable)
  • ON/OFF
  • PRESET (for entering a numerical value)
  • RESET (set display to zero)
  • mm/inch
  • LOCK function (key lock)

Features:

  • Measuring blades for outside measurements
  • High contrast analog display
  • Locking screw above
  • Rounded measuring blades for inside measurements
  • Slide and beam made of hardened stainless teel
  • Immediate measurements due to the Reference System
  • Raised guideways for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • Digit height 10mm
  • Data Interface: USB, Opto, RS232C, Digimatic, Wireless
  • Battery life 3 years
  • IP 65
  • Includes Battery, Instruction Manual, and Case

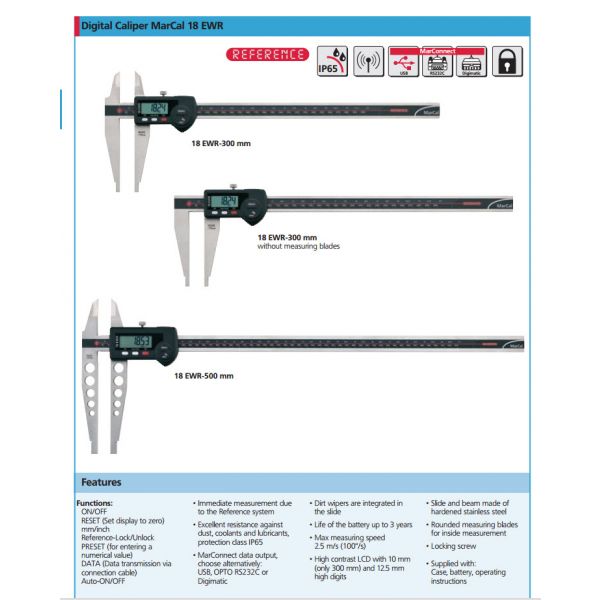

MarCal 18 ERW Digital Calipers with Measuring Blades




Mahr MarCal 4112714 Digital Caliper 18 EWR with blades, 36"/750mm, Resolution .01mm/.0005", Data Output , IP65
