Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm
Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm
Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm
Roll over image to zoom in Click on image to zoom
Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mmMahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mmMahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm

Mahr Indicator Granite Grade 0 Stand 820 FG Code 4431100 Working range 130mm/0-5.1'' working range, Mount Diameter 8mm With Fine Adjustment 0.2mm

Mahr SKU: 4431100
Price: €790.49 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

MarStand 820 FG

Art. no. 4431100

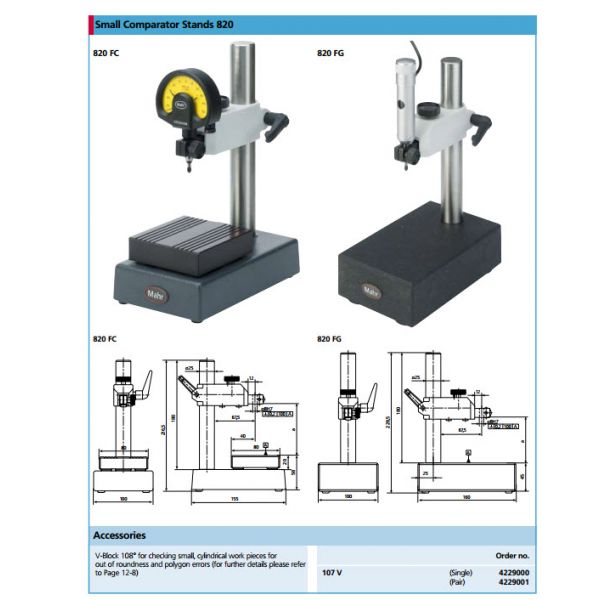

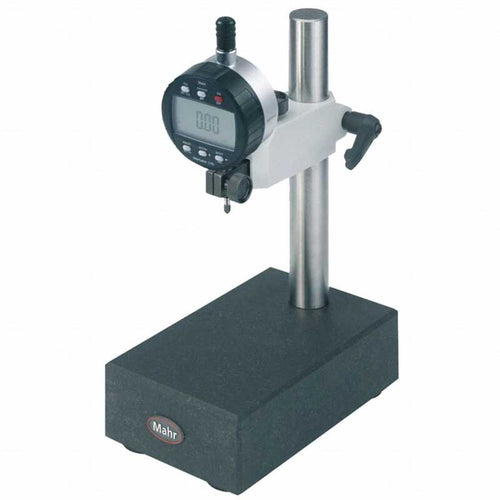

Small comparator stand, plate made of granite MarStand 820 FG
Working range a: 0 - 130 mm
Mounting hole: 8H7
Fine adjustment

  • Stable design
  • Table plate made of black granite, lapped
  • Rugged, ground stainless steel column
  • Strong, rigid parallel spring-loaded system for precision adjustment
  • Adjustable support arm for indicating instrument
Working range a 0 - 130
Flatness tolerance DIN 876 t1 = 4(1 + L/1000) µm, L in mm
Fine adjustment range mm 0.4 mm
Mounting hole 8H7
Product weight 3.2 kg
