Mahr SKU: 43371624
List price: €430.00 Offer price: €395.00 Excluding VAT

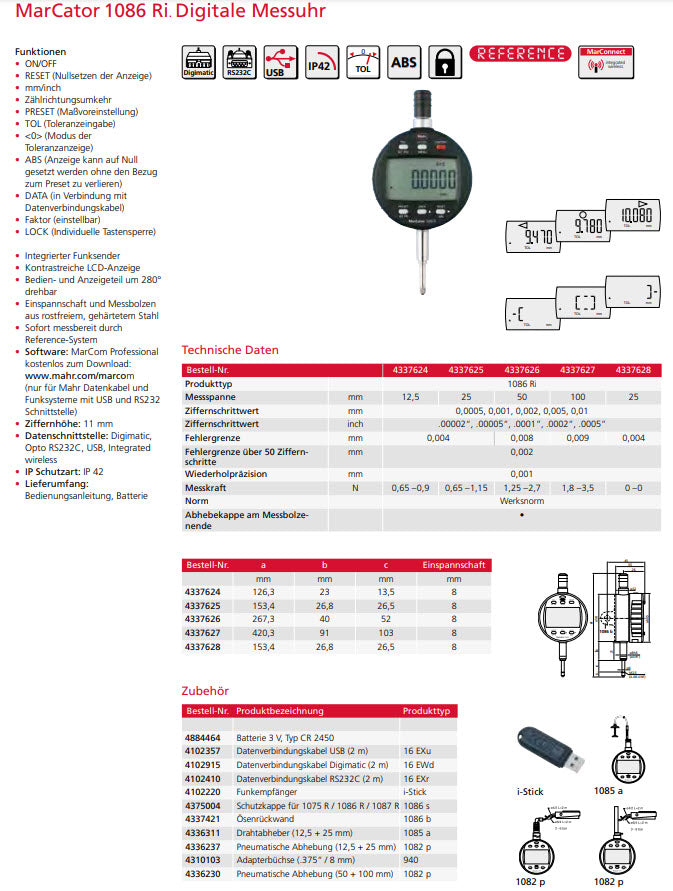

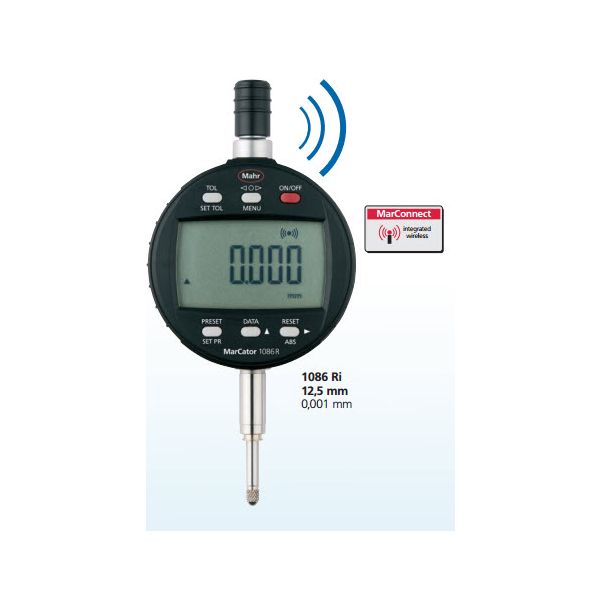

The Mahr 4337624 Digital Indicator 1086 Ri has the following specifications:

  • Measuring Range: 0-12.5mm/.5″
  • Resolution switchable: 0.0005 / 0.001 / 0.002/ 0.005 / 0.01 mm
  • Span of error: 0.005mm
  • Measuring Force: 0.65 – 0.90N
  • Weight: 130G
  • Mounting Shank: 8h6

Features:

  • Integrated wireless data transmission.
  • Immediate measurement due to the reference system.
  • Individual button can be locked – lock functions.
  • Operating and display unit can be rotated to 280 degree.
  • High contrast lcd with 11mm high digits.
  • Operating temperature approx 3 years(2000 work hrs/year).
  • Maximum measuring speed 1.5m/s.
  • Marconnect data output: choose either USB, OPTO TS232C, digimatic or integrated wireless.
  • Operating temperature 10-40 degree c.
  • Class of protection IP42 in accordance to IEC 60523.
  • Supplied with: battery, operating instructions.

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
