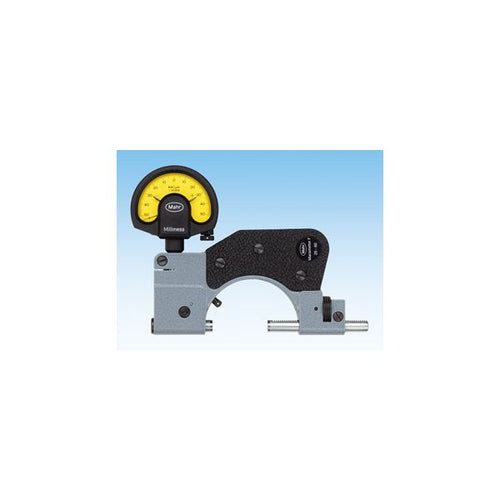

Mahr 4450001 Snap Gauge 840F carbide anvils. Range : 25-60mm/1-2.36", Force : 7.5 N , Flatness : ≤0.2 microns, Parallelism : ≤ 1 micron : Indicator not included
Mahr 4450001 Snap Gauge 840F carbide anvils. Range : 25-60mm/1-2.36", Force : 7.5 N , Flatness : ≤0.2 microns, Parallelism : ≤ 1 micron : Indicator not included
Mahr 4450001 Snap Gauge 840F carbide anvils. Range : 25-60mm/1-2.36", Force : 7.5 N , Flatness : ≤0.2 microns, Parallelism : ≤ 1 micron : Indicator not included
Roll over image to zoom in Click on image to zoom
Mahr 4450001 Snap Gauge 840F carbide anvils. Range : 25-60mm/1-2.36", Force : 7.5 N , Flatness : ≤0.2 microns, Parallelism : ≤ 1 micron : Indicator not includedMahr 4450001 Snap Gauge 840F carbide anvils. Range : 25-60mm/1-2.36", Force : 7.5 N , Flatness : ≤0.2 microns, Parallelism : ≤ 1 micron : Indicator not includedMahr 4450001 Snap Gauge 840F carbide anvils. Range : 25-60mm/1-2.36", Force : 7.5 N , Flatness : ≤0.2 microns, Parallelism : ≤ 1 micron : Indicator not included

Mahr 4450001 Snap Gauge 840F carbide anvils. Range : 25-60mm/1-2.36", Force : 7.5 N , Flatness : ≤0.2 microns, Parallelism : ≤ 1 micron : Indicator not included

Mahr SKU: 4450001
List price: €1,595.00 Offer price: €1,360.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

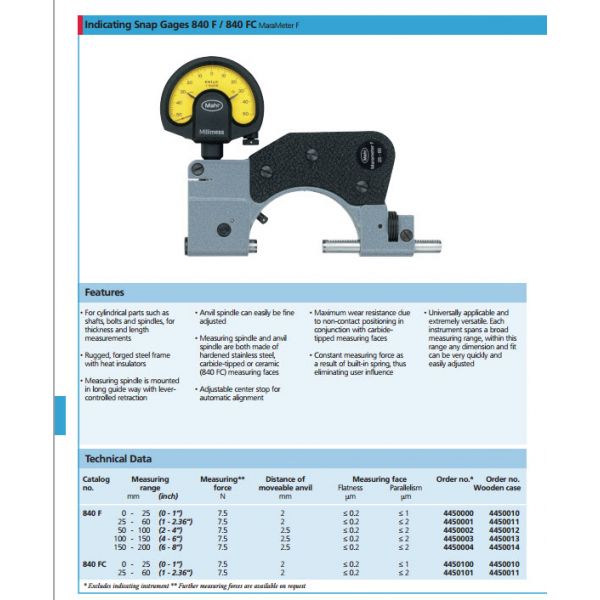

Mahr Indicating Snap Gauge, 25-60mm/1-2.36" 840F - 4450001

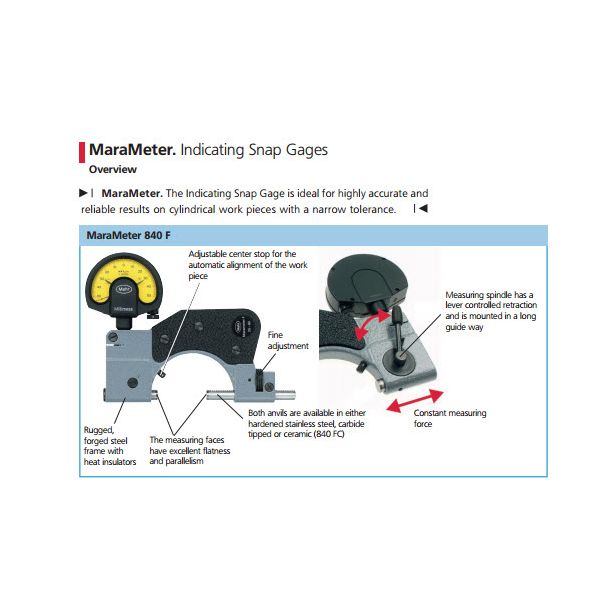

  • For cylindrical parts such as shafts, bolts and spindles, for thickness and length measurements.
  • Rugged, forged steel frame with heat insulators.
  • Measuring spindle is mounted in long guide way with lever-controlled retraction.
  • Anvil spindle can easily be fine adjusted.
  • Measuring spindle and anvil spindle are both made of hardened stainless steel, carbide-tipped or ceramic (840 FC) measuring faces.
  • Adjustable center stop for automatic alignment.
  • Maximum wear resistance due to non-contact positioning in conjunction with carbide-tipped measuring faces.
  • Constant measuring force as a result of built-in spring, thus eliminating user influence.
  • Universally applicable and extremely versatile. Each instrument spans a broad measuring range, within this range any dimension and fit can be very quickly and easily adjusted.
  • Measuring Force N: 7.5
  • Supplied with: Wooden case, steel flat contact points 903
Repeatability Distance of Measuring Force
fw µm Moveable Anvil Flatness µm Parallelism µm
≤0.5 2mm ≤0.2 ≤ 1

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
