Mahr SKU: 4429010
Price: €6,500.00 Excluding VAT

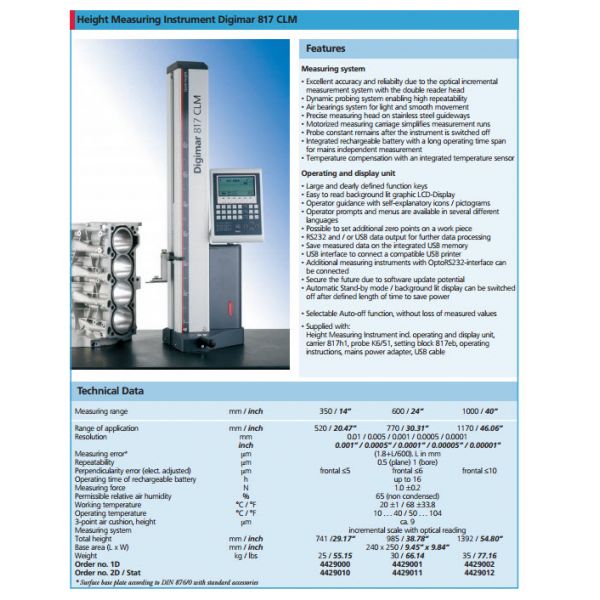

  • Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head
  • Dynamic probing system enabling high repeatability
  • Air bearings system for light and smooth movement
  • Precise measuring head on stainless steel guideways
  • Motorized measuring carriage simplifies measurement runs
  • Probe constant remains after the instrument is switched off
  • Integrated rechargeable battery with a long operating time span for mains independent measurement
  • Temperature compensation with an integrated temperature sensor

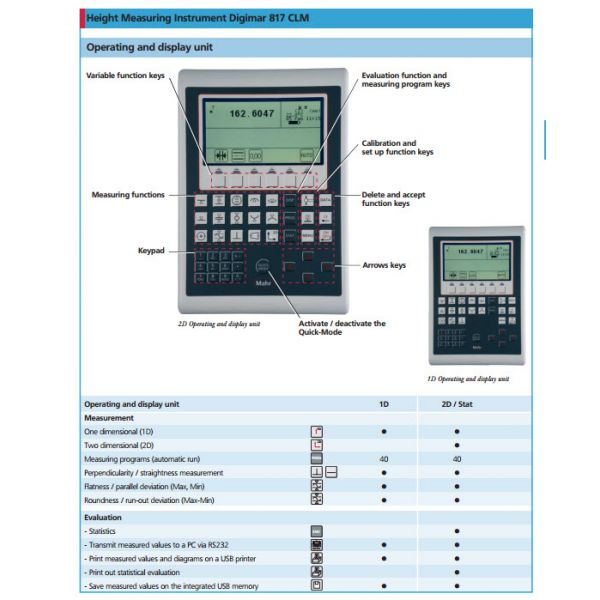

Operating and Display Unit:

  • Large and clearly defined function keys
  • Easy to read background lit graphic LCD display
  • Operator guidance with self-explanatory icons / pictograms
  • Operator prompts and menus are available in several languages
  • Possible to set additional zero points on a work piece
  • RS232 and / or USB data output for further data processing
  • Save measured data on the integrated USB memory or on a USB stick
  • USB interface to connect a compatible USB printer
  • Additional measuring instruments with Opto RS232-interface can be connected
  • Secure the future due to software update potential
  • Automatic stand-by switch mode
  • Selectable Auto-off function, without loss of measured values
