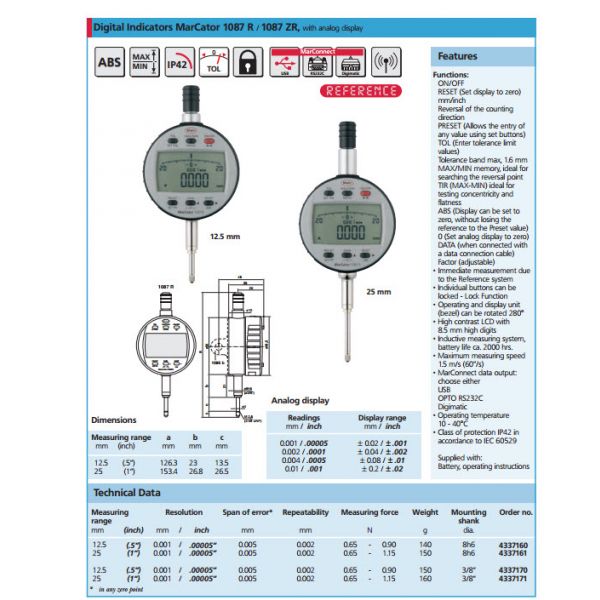

Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''
Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''
Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''
Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''
Roll over image to zoom in Click on image to zoom
Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''

Mahr 4337170 Digital Indicators MarCator 1087 R, Range 12.5mm/.5'' Resolution 0.001 mm / .00005“ Accuracy 0.005mm Repeatability 0.002mm Force 0.65 - 0.90N Stem 3/8''

Mahr SKU: 4337170
List price: €368.00 Offer price: €290.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
Functions:
ON/OFF
RESET (Set display to zero)
mm/inch
Reversal of the counting
direction
PRESET (Allows the entry of any value using set buttons)
TOL (Enter tolerance limit values)
ABS (Display can be set to zero, without losing the reference to the Preset value)
<0> (Tolerance GO / NO GO display mode)
DATA (when connected with a data connection cable)
Factor (adjustable)
• Immediate measurement due to the Reference system
• Individual buttons can be locked - Lock Function
• Operating and display unit (bezel) can be rotated 280°
• High contrast LCD with 11 mm high digits
• Inductive measuring system, battery life ca. 2000 hrs.
• Maximum measuring speed 1.5 m/s(60”/s)
• Lifter protection cap on the measuring spindle
• MarConnect data output: choose either USB OPTO RS232C Digimatic
• Operating temperature 10 - 40°C
• Class of protection IP42 in accordance to IEC 60529 Supplied with: Battery, operating instructions
Mahr 4337170 Digital Indicators MarCator 1087 R

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
