Mahr 4337062 Digital Indicators 1087 Accuracy:0.005mm Model:1087B Range:12.5mm/0.5" Repeatability:0.002mm Resolution:0.001mm/0.00005" Stem:8mm
Mahr 4337062 Digital Indicators 1087 Accuracy:0.005mm Model:1087B Range:12.5mm/0.5" Repeatability:0.002mm Resolution:0.001mm/0.00005" Stem:8mm
Roll over image to zoom in Click on image to zoom
Mahr 4337062 Digital Indicators 1087 Accuracy:0.005mm Model:1087B Range:12.5mm/0.5" Repeatability:0.002mm Resolution:0.001mm/0.00005" Stem:8mmMahr 4337062 Digital Indicators 1087 Accuracy:0.005mm Model:1087B Range:12.5mm/0.5" Repeatability:0.002mm Resolution:0.001mm/0.00005" Stem:8mm

Mahr 4337062 Digital Indicators 1087 Accuracy:0.005mm Model:1087B Range:12.5mm/0.5" Repeatability:0.002mm Resolution:0.001mm/0.00005" Stem:8mm

Mahr SKU: 4337062
List price: €380.00 Offer price: €275.00 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Magnetic Stand 7010S-10
Part number: 7010S-10  → View product
7033-10 Jointed Magnetic Stand 352mm Working Radius
Part number: 7033-10  → View product
Gauge Stand 7001-10 with Hardened Steel Anvil, D=58mm Serrated Anvil Range 0-95mm
Part number: 7001-10  → View product
Gauge Stand with Hardened Steel Anvil, D=58mm Flat Anvil 7002-10
Part number: 7002-10  → View product
Gauge Stand with Hardened Steel Anvil 90x90mm, Square Anvil, 7007-10
Part number: 7007-10  → View product
Gauge Stand with Hardened Steel Anvil 110x110mm, Square Anvil 215-405-10
Part number: 215-405-10  → View product
Gauge Stand with Hardened Steel Anvil 150x150mm, Square Anvil 215-505-10
Part number: 215-505-10  → View product
Gauge Stand with Granite Base 150x200mm 215-151-10
Part number: 215-151-10  → View product
Gauge Stand with Granite Base 200x250mm 215-153-10
Part number: 215-153-10  → View product
Gauge Stand with Granite Base 120x180mm 215-150-10
Part number: 215-150-10  → View product
Mitutoyo 7822 Contact Element Set, M2,5x0,45, 6 pcs. , Metric
Part number: 7822  → View product
MHC 605-0022 Contact Point set 22 pieces Thread 4 x 48 UNF
Part number: 605-0022  → View product
MHC 605-0023 Contact Point set 22 pieces Thread M2.5 X.45
Part number: 605-0023  → View product
Mitutoyo Limit Stickers Set Red 10 pcs. Item number: 136420
Part number: 136420  → View product
Mitutoyo Limit Stickers Set Green 10 pcs. Item number: 136421
Part number: 136421  → View product
Mitutoyo Limit Stickers Set Yellow 10 pcs. Item number: 136422
Part number: 136422  → View product

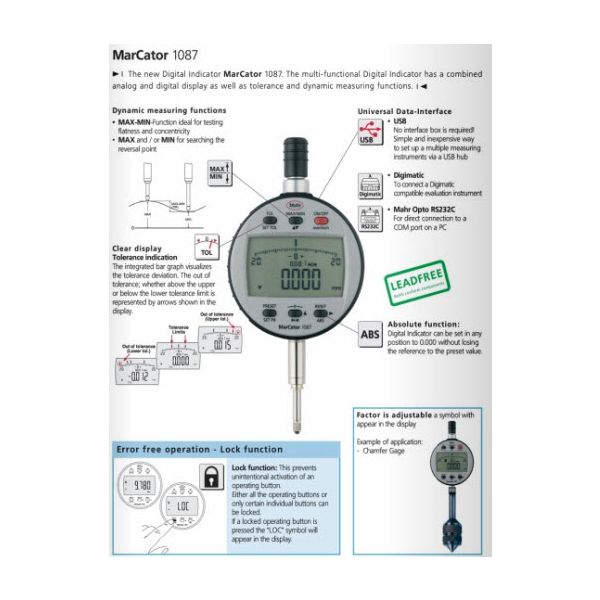

Mahr Digital Indicators 10871087Z & 1087B
The multi-functional Digital Indicator with a combined analog and digital display; plus tolerance and dynamic measuring functions.
Universal Data-Interface: USB Digimatic or RS232C
Tolerance indication The integrated bar graph visualizes the tolerance deviation.
The out of tolerance; whether above the upper or below the lower tolerance limit is represented by arrows shown in the display
Error free operation with the Lock-Function prevents unintentional activation of a operating button
Analogue display Display range
0.001mm/0.00005" +/-0.02mm / +/- .001"
0.002mm/0.0001" +/-0.04mm / +/- .002"
0.004mm/0.0005" +/-0.08mm / +/- .01"
0.01mm/0.001" +/-0.2mm / +/- .02"

MarCator Digital Indicator 1087 B for 2 point inside measurement

Mahr 4337062 Digital Indicators 1087 Accuracy: 0.005mm Model:1087B Range:12.5mm/0.5"

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
