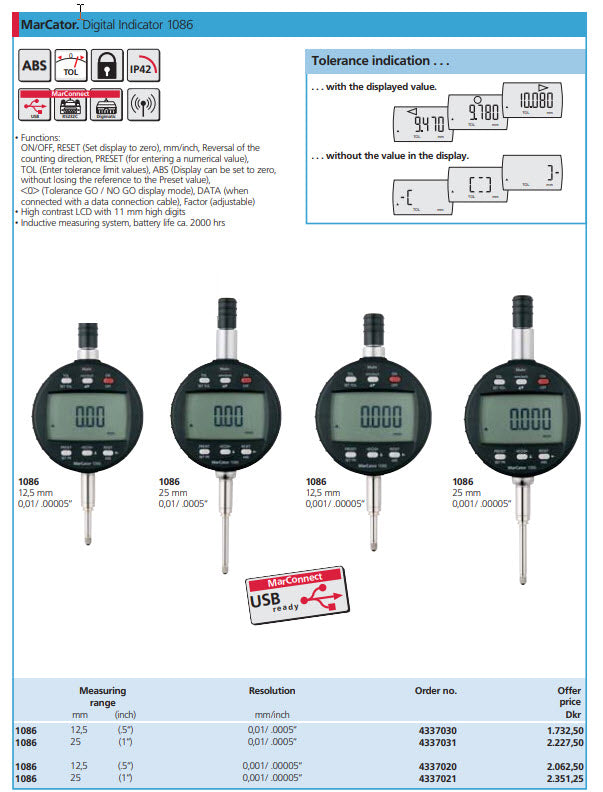

Mahr 4337050 Digital Indicators 1086Z Accuracy: .005mm Model: 1086Z Range: 12.5mm/0.5" Repeatability: 0.002mm Resolution: 0.00005"/0.001mm Stem: 3/8"

Roll over image to zoom in Click on image to zoom

Mahr 4337050 Digital Indicators 1086Z Accuracy: .005mm Model: 1086Z Range: 12.5mm/0.5" Repeatability: 0.002mm Resolution: 0.00005"/0.001mm Stem: 3/8"

Name: Mahr 4337050 Digital Indicators 1086Z Accuracy: .005mm Model: 1086Z Range: 12.5mm/0.5" Repeatability: 0.002mm Resolution: 0.00005"/0.001mm Stem: 3/8"
Brand: Mahr
SKU: 4337050
Price: 250.0 EUR
Availability: InStock

MahrSKU: 4337050

Price:

€250.00 €575.00

Quantity:

Integrated tolerance function with clear representation.
Manufactured after the RoHS guideline on the restriction of dangerous materials in electrical appliances.
MarConnect data communication over USB, Opto RS232C or Digimatic.
USB direct data output.
Large 11mm digit display, tolerance, preset, and Go/NoGo display.
Button lockout feature, ABS zero set, on/off, inch/metric.

Brand	MAHR FEDERAL
Stem	3/8"
Measuring Range	0 - .5"/12.5mm"
Type	MarCator 1086 USB Indicator
Data Output	USB direct data output.
Display Type	Large 11mm digit display, tolerance, preset,and Go
Prop. 65	Yes
Repeatability	.0001"
Resolution	.00005"/.001mm
Country of Origin	GERMANY

Product Information
Part Number	4337050
Measuring Range	12.5mm/0.5"
Accuracy	+/-.003mm/.00015"
Unit of Measurement	Metric Inch
Measuring Force	0.8-2N
Stem Diameter	3/8"

Mahr 4337050 Digital Indicators 1086Z Accuracy: .005mm Model: 1086Z Range: 12.5mm/0.5" Repeatability: 0.002mm Resolution: 0.00005"/0.001mm Stem: 3/8"
