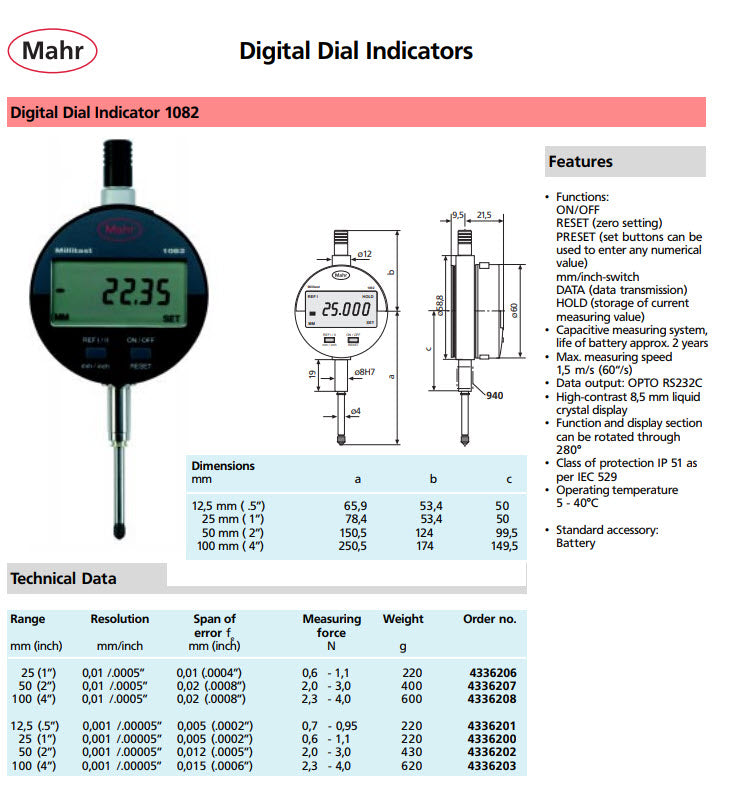

Functions: ON/OFF
RESET (zero setting)
PRESET (set buttons can be used to enter any numerical value)
mm/inch-switch
DATA (data transmission)
HOLD (storage of current measuring value)
• Capacitive measuring system, life of battery approx. 2 years
• Max. measuring speed 1,5 m/s (60“/s)
• Data output: OPTO RS232C
• High-contrast 8,5 mm liquid crystal display
• Function and display section can be rotated through 280°
• Class of protection IP 52 as per IEC 529
• Operating temperatur5 - 40°C
| Style of Indicator |
Standard Type Digital |
| Measurement units |
Inch/Metric |
| IP Rating |
IP52 |
| Mounting Diameter |
8mm |
| Measuring Range |
2"/50mm |
| Resolution |
.00005"/.001mm |
| SPC Output |
Yes |
| Accuracy |
.0002"/.005mm |
| Back |
Flat |
| Digital, Non-Digital |
Digital |
