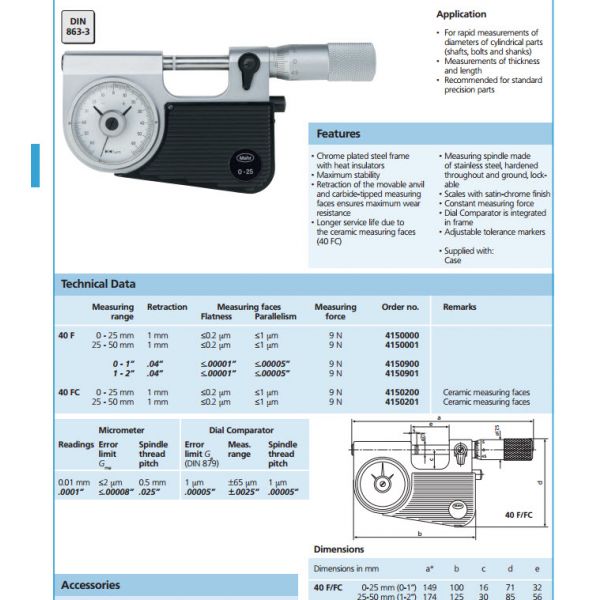

The Mahr 4150900 Micrometer W/ Dial Comparator has the following specifications:
- Measuring Range: 1-2″
- Measuring Force: 9N
- Retraction: .04″
- Measuring Faces Flatness: .00001″
- Measuring Faces Parallelism: .00005″
Applications:
- For rapid measurements of diameters of cylindrical parts (shafts, bolts and shanks)
- Measurements of thickness and length
- Recommended for standard precision parts
Features:
- Chrome plated steel frame with heat insulators
- Maximum stability
- Retraction of the movable anvil and carbide-tipped measuring faces ensures maximum wear resistance
- Longer service life due to the ceramic measuring faces (40 FC)
- Measuring spindle made of stainless steel, hardened throughout and ground, lockable
- Scales with satin-chrome finish
- Constant measuring force
- Dial Comparator is integrated in frame
- Adjustable tolerance markers
- Supplied with: Case
No technical information is currently available.
No application information is currently available.
