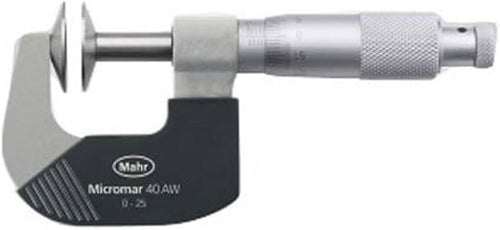

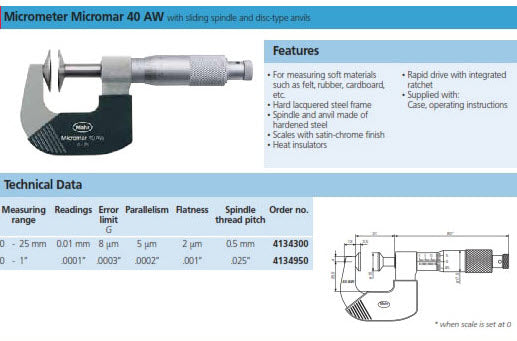

The Mahr 4134300 Vernier Disc Micrometer has the following specifications:
- Measuring Range: 0-25mm
- Error limit : 8µm
- Readings: 0.01mm
- Spindle thread pitch: 0.5mm
- Parallelism: 5µm
- Flatness: 2µm
Features:
- For measuring soft materials such as felt, rubber, cardboard, etc.
- Hard lacquered steel frame
- Spindle and anvil made of hardened steel carbide tipped
- Scales with satin-chrome finish
- Heat insulators
- Rapid drive with integrated ratchet
- Supplied with: Case, operating instructions
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
