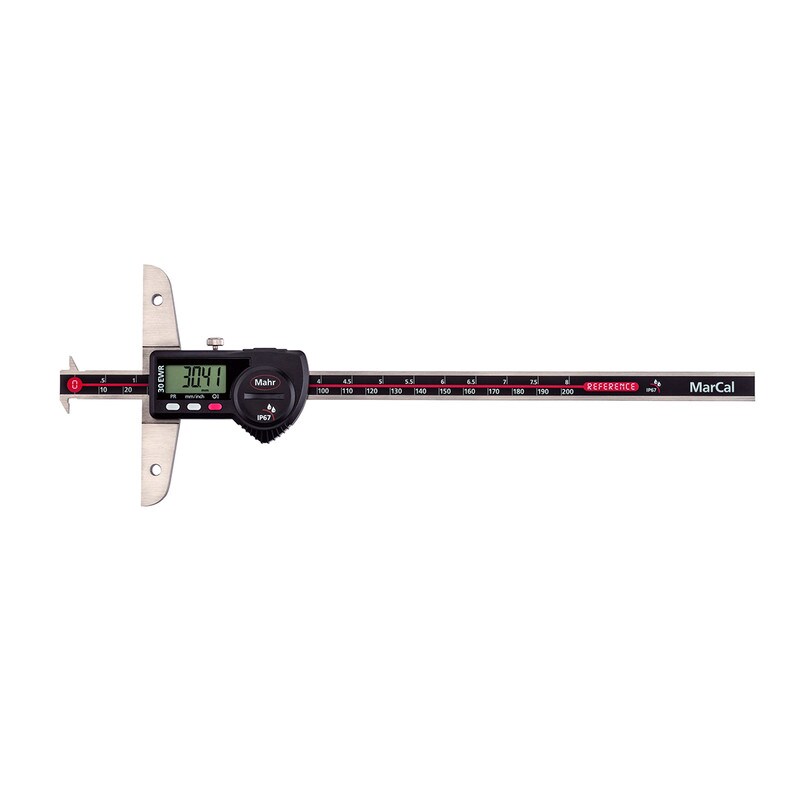

Mahr 4126524 30 EWR-D Digital Depth Gauge 300mm/12", Data output
Mahr 4126524 30 EWR-D Digital Depth Gauge 300mm/12", Data output
Mahr 4126524 30 EWR-D Digital Depth Gauge 300mm/12", Data output
Roll over image to zoom in Click on image to zoom
Mahr 4126524 30 EWR-D Digital Depth Gauge 300mm/12", Data outputMahr 4126524 30 EWR-D Digital Depth Gauge 300mm/12", Data outputMahr 4126524 30 EWR-D Digital Depth Gauge 300mm/12", Data output

Mahr 4126524 30 EWR-D Digital Depth Gauge 300mm/12", Data output

Mahr SKU: 4126524
Price:
€695.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Functions:
• ON/OFF
• AUTO-ON / OFF
• mm/inch
• LOCK function (key lock)
• RESET (set display to zero)
• PRESET (for entering a numerical value)
• DATA (Data transmission via connection cable)
• High contrast analogue display
• Locking screw above
• Lapped guideway
• Measuring surfaces made of steel
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideways for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide
• Digit height: 8,5 mm
• Data interface: USB, Opto RS232C, Digimatic
• Energy supply: Battery life approx. 3 years
• IP protection category: IP 67
• Scope of delivery: Battery, Instruction manual, Case

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
