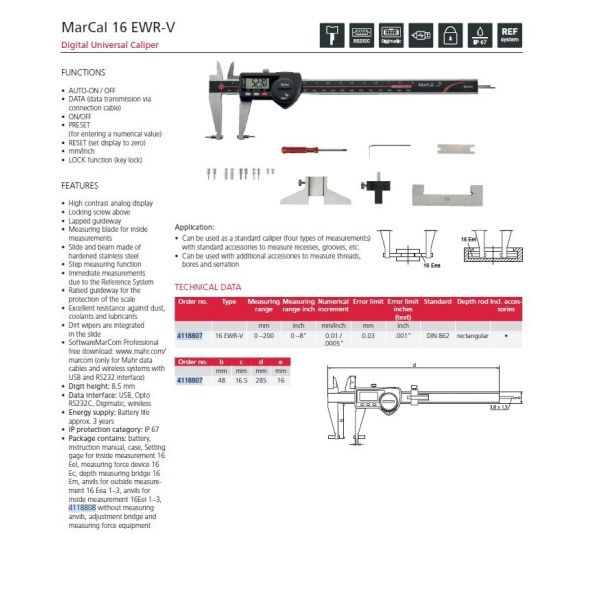

Digital Universal Caliper MarCal 16 EWR-V
Measuring range mm: 0 - 200 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Depth rod: rectangular
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67

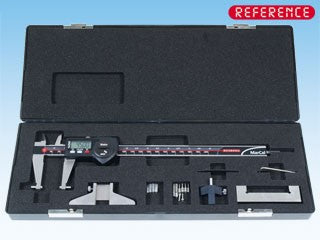

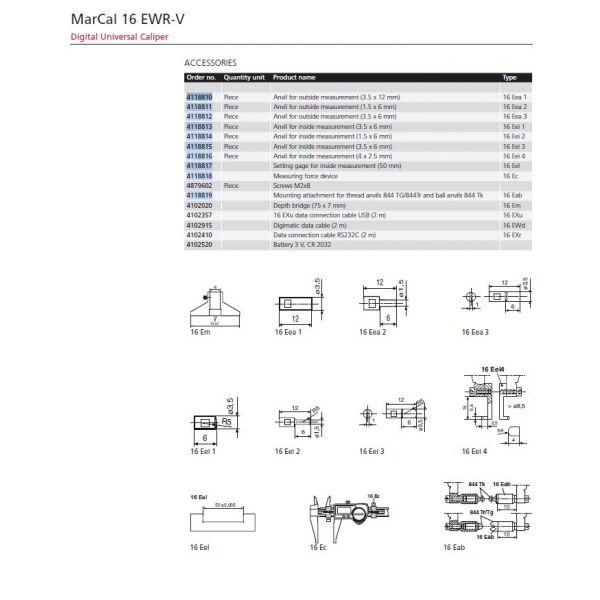

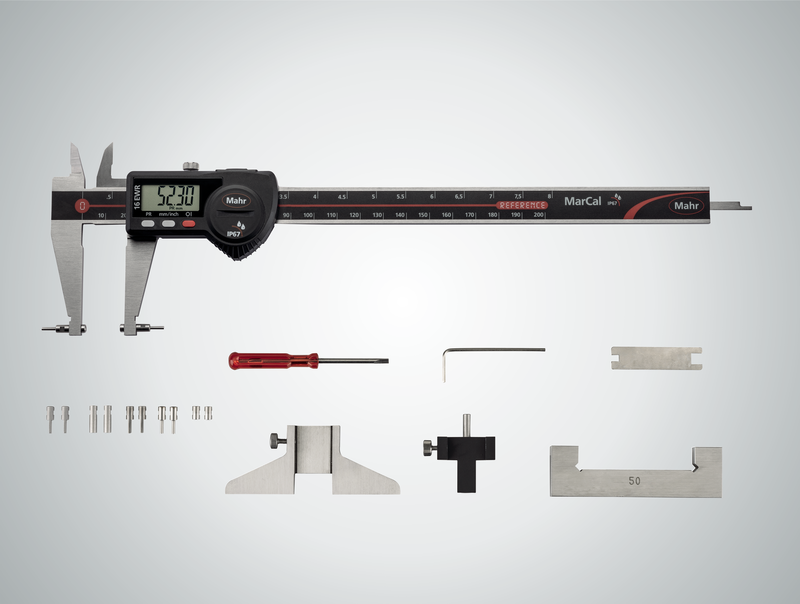

Package contains: setting gage for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1-3, anvils for inside measurement 16Eei 1-3, 4118808 without measuring anvils, adjustment bridge and measuring force equipment, battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
