Description

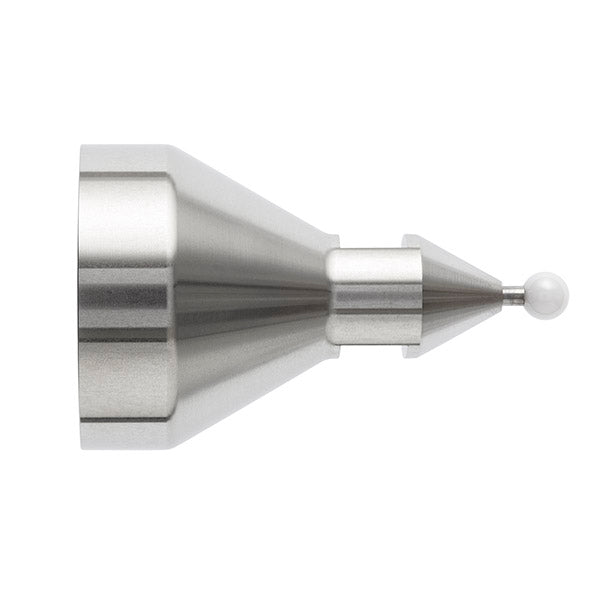

Faro styli are specially designed for use with Faro arms. Zirconia is a particularly tough ceramic material with hardness and wear characteristics approaching those of ruby. Its surface properties make it an ideal material for aggressive scanning applications on cast iron components.
Equivalent to Q-Mark part number: QMFARO-30
Technical table
| Ball diameter (mm) | 3 |
|---|---|
| Centre styli | false |
| EWL (mm) | 5.4 |
| Holder material | Stainless steel |
| Overall length (mm) | 43 |
| Stem diameter (mm) | 2.5 |
| Stem material | Tungsten carbide |
| Thread | M6 |
| Tip material | Zirconia |
Technical documentation
