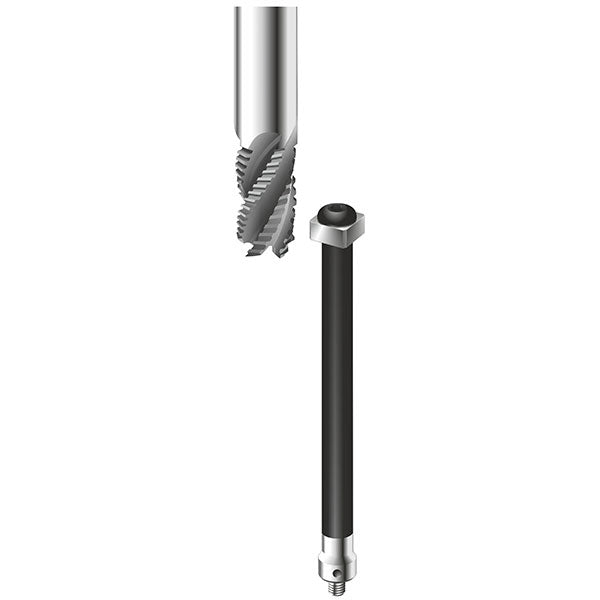

Tool setting styli are fitted with a precision ground tip to ensure high squareness and parallelism.
Technical table
| Chamfer | N |
|---|---|
| Dimension A (mm) | 10 |
| Dimension B (mm) | 10 |
| Dimension C (mm) | 5 |
| Length (mm) | 96.5 |
| Number of faces | 4 |
| Overall length (mm) | 96.5 |
| Stem material | Aluminium |
| Thread | M4 |
| Tip material | Tungsten carbide |
Technical documentation
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
