Description

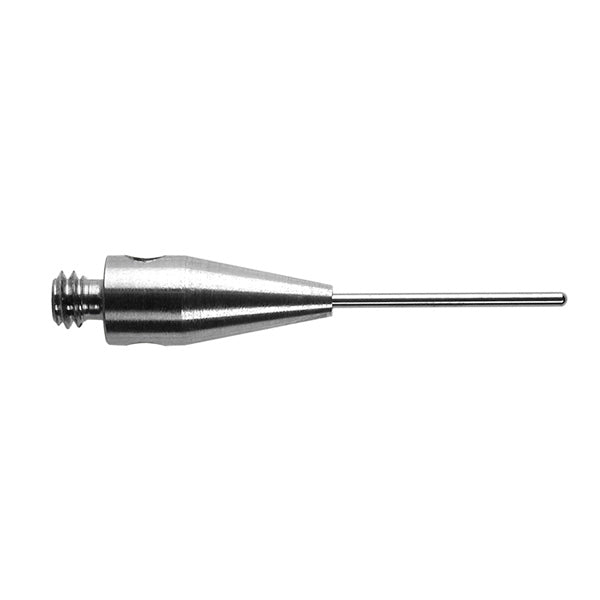

Renishaw M2 Spherical styli
Cylinder styli can be used in situations where correct contact with a ball stylus cannot be guaranteed, such as applications with sheet metal, pressed components or thin work pieces. Tungsten carbide tips are ideal for applications demanding a hardwearing interface with an inspected item.
Equivalent to Q-Mark part number: TM2-0515-BC
Technical table
| Ball diameter (mm) | 0.5 |
|---|---|
| Cylinder diameter (mm) | 0.5 |
| EWL (mm) | 7.75 |
| Overall length (mm) | 15.25 |
| Stem material | Stainless steel |
| Thread | M2 |
| Tip material | Tungsten carbide |
