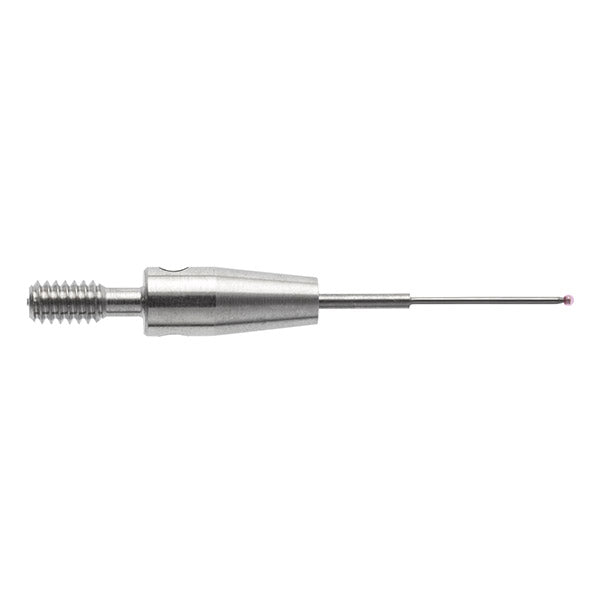

Renishaw M2 Straight Styli with ruby ball
Styli centres are designed to provide maximum probing flexibility with a single probe, allowing custom stylus configurations. Ruby is regarded as the industry standard to stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters.
Equivalent to Q-Mark part number: STR2C-0519.
Technical table
| Ball diameter (mm) | 0.5 |
|---|---|
| Centre styli | true |
| EWL (mm) | 7 |
| Holder material | Stainless steel |
| Overall length (mm) | 18.5 |
| Stem diameter (mm) | 0.34 |
| Stem material | Tungsten carbide |
| Thread | M2 |
| Tip material | Ruby |
Technical documentation
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
