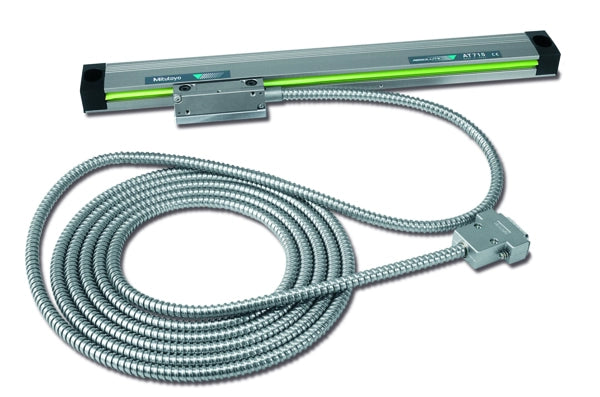

Linear Scale AT715 700mm/28" 539-813R Coolant Proof IP67 Absolute Linear Scales

Mitutoyo SKU: 539-813R
Price: €396.39 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
This linear scale is based on electro magnetic induction principle thus offering you high enviroment protection IP level, in the mean time reference point is not necessary after each power on.

Only compatible with KA series display units.

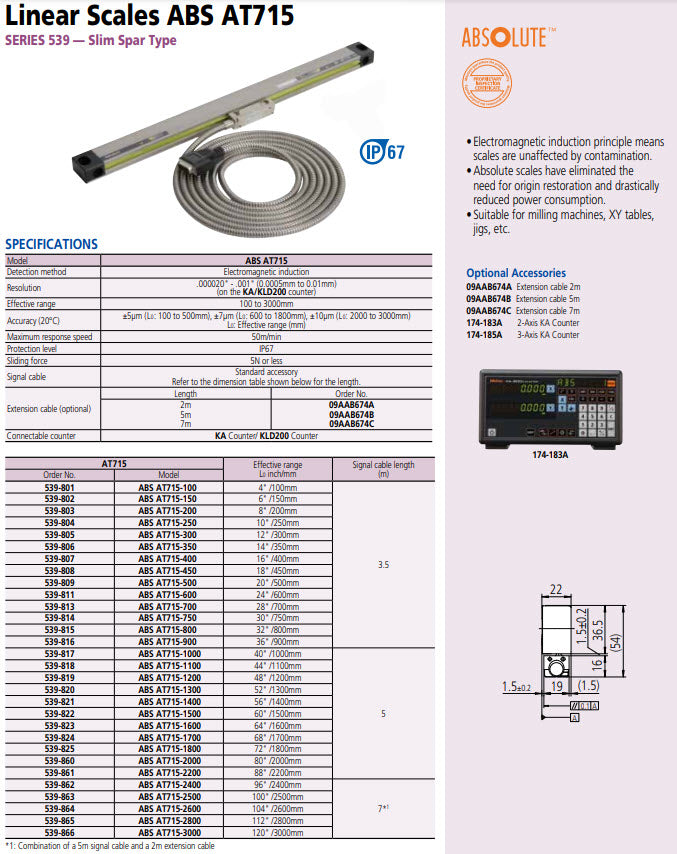

Specification
Measuring method:
Electromagnetic induction system
Accuracy:
100 to 500 mm ±5 µm
600 to 1800 mm ±7 µm
2000 to 3000 mm ±10 µm
Max. drive speed:
50 m/min
Signal period:
20 µm
Resolution:
0,001 / 0,005 (switchable via Counter)
Cable length:
3.5 m
