Mitutoyo SKU: 542-187
List price: €1,018.00 Offer price: €789.00 Excluding VAT

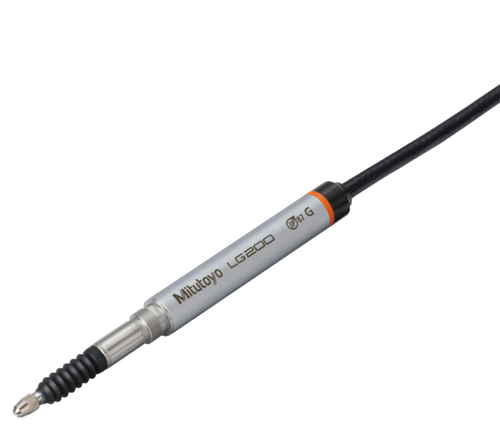

This slim type linear gauge allows you to meet a variety of measurement needs.

  • Differential square wave signal output enables use for a wide range of applications.
  • Due to its compact design, you can install it even where space is restricted.
  • Its photoelectric scale delivers high precision across the entire measuring range.
  • Extremely long-lasting due to linear ball-bearings in the spindle unit.
  • Perfect for use in tough environments, they come with a high IP class of IP67G.

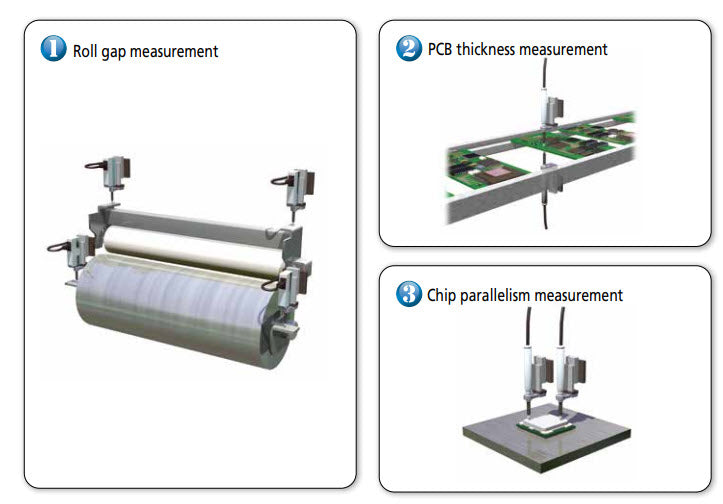

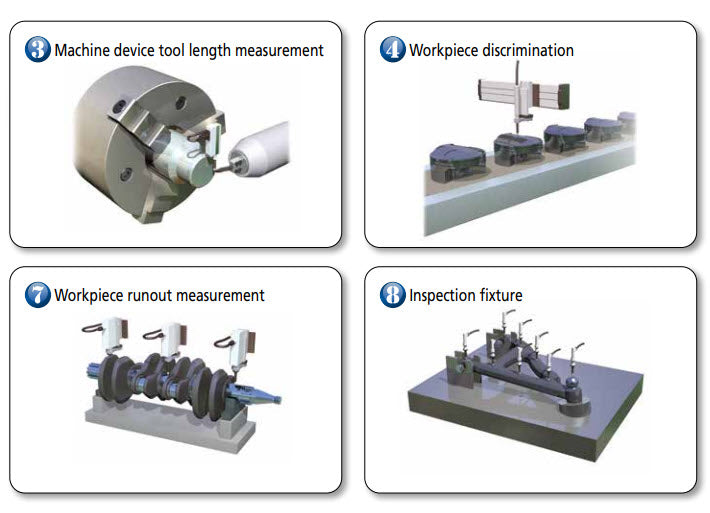

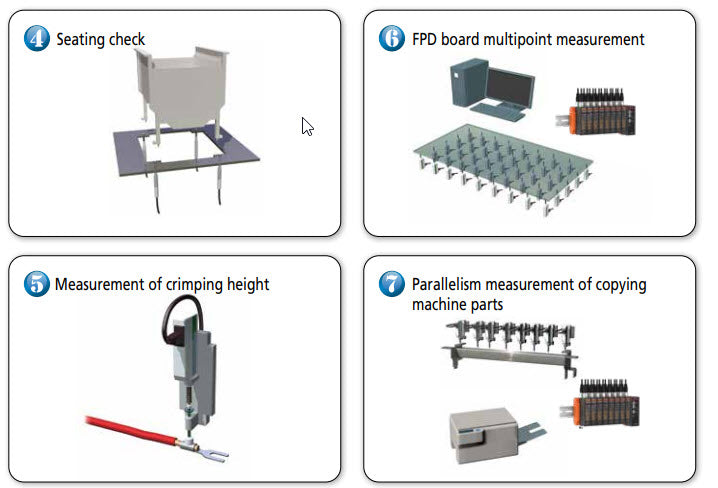

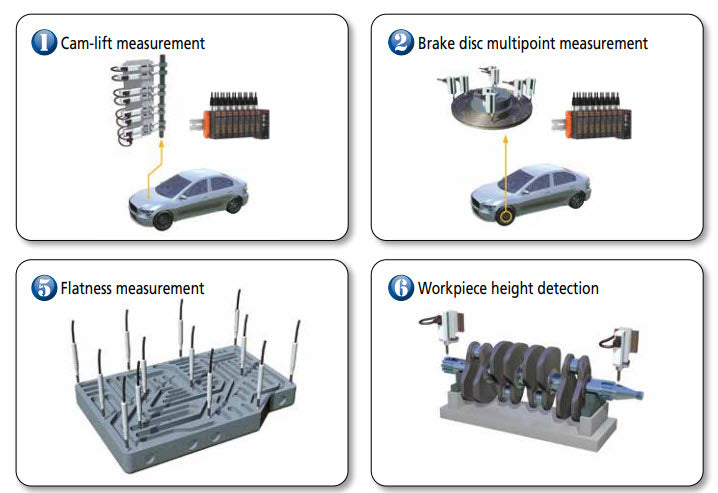

  • Ideal for in-line measurement and embedded in automatic machines.

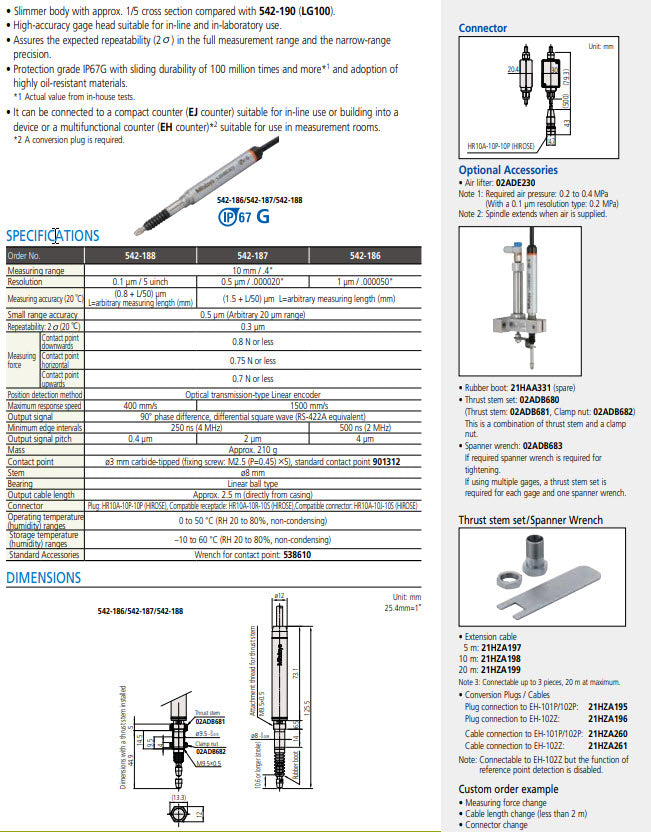

Specification
Range:
0 - 10 mm
Accuracy:
1.5+ L/50) µm L=measured length in mm
Measuring force:
0.8 N with spindle down, 0.75 N spindle horizontal, 0.7 N spindle upwards
Resolution:
0.0005 mm/.00002"
Scale:
Photoelectric linear encoder
Stem ∅:
8 mm
Contact point:
Ø 3 mm carbide ball,
thread: M 2.5 x 0.45
Signal pitch:
0.4 µm
Cable length:
2 m
Power supply:
5 V (4.5 V to 5.2 V), 80 mA max.
Max. response speed:
1500mm/s
Output signal:
90° phase difference, differential square wave (RS-422A equivalent)
minimum edge distance
500 ns (0.1 µm type),
250 ns (0.1 and 0.5 µm type)
Environmental conditions:
0° C to 50° C (20% to 80% rel. humidity, no condensation) °C
Bearing type:
Linear ball bearing

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
