Mitutoyo SKU: 542-192
List price: €959.00 Offer price: €743.00 Excluding VAT

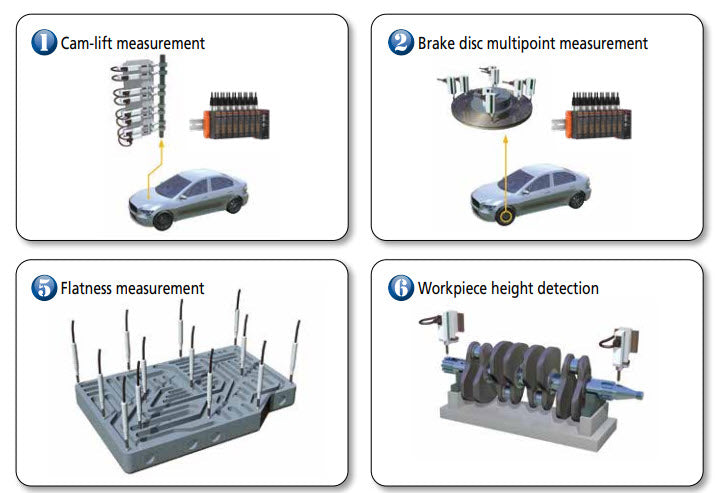

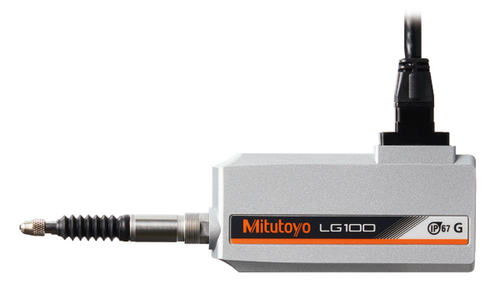

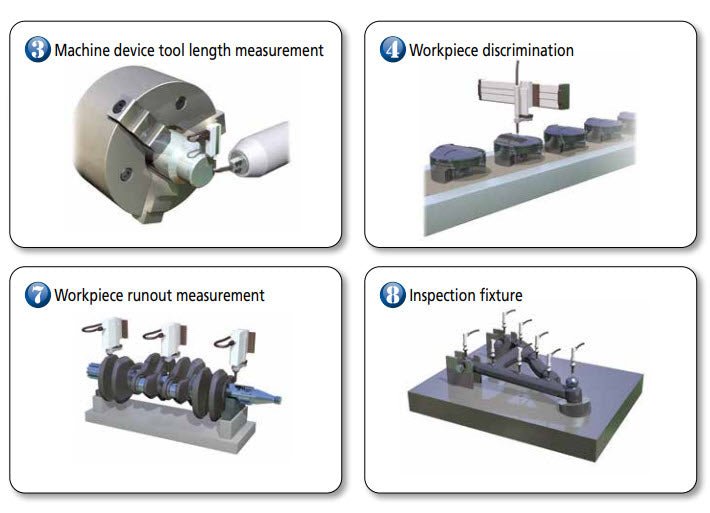

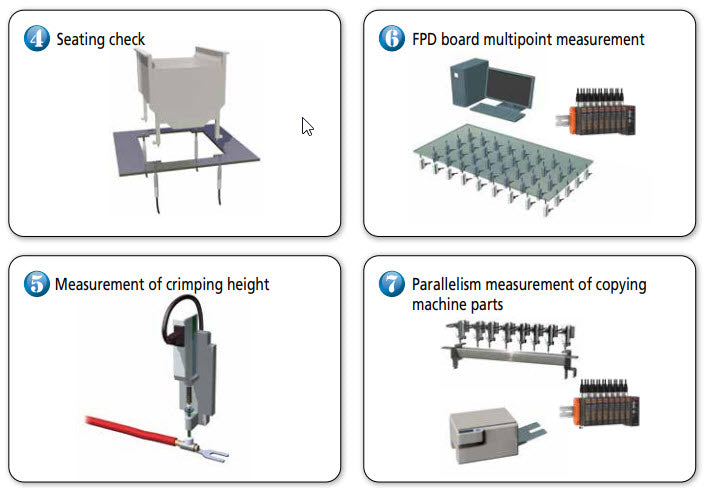

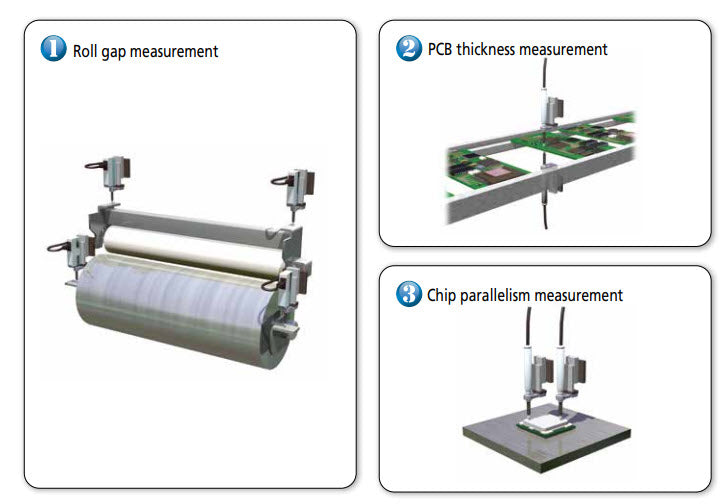

The LG100 is a very robust and economical linear gauge for in-line use and automatic machines, in combination with the EJ Counter. EH-counters can be used as well.

  • The advanced construction of the plunger guidance assembly makes it very resistant to external shocks and vibrations.
  • Its differential square-wave signal output allows for a wide range of applications.
  • Long-lasting due to linear ball-bearings in the spindle unit.
  • Repeatability of 0.3 µm.
  • Narrow range accuracy: 0.5 µm (20 µm range).
  • Operation temperature range: 0 - 50°C.

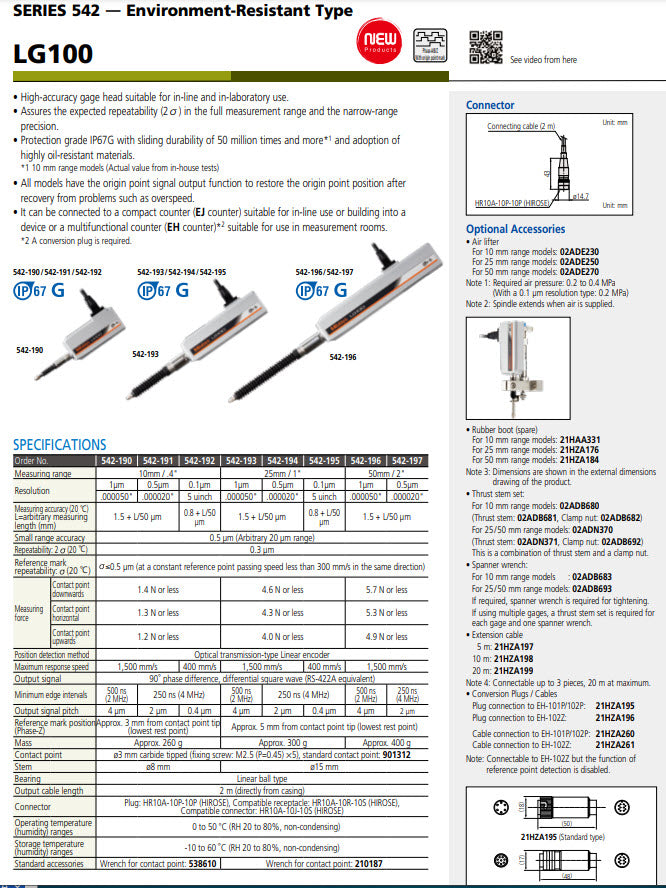

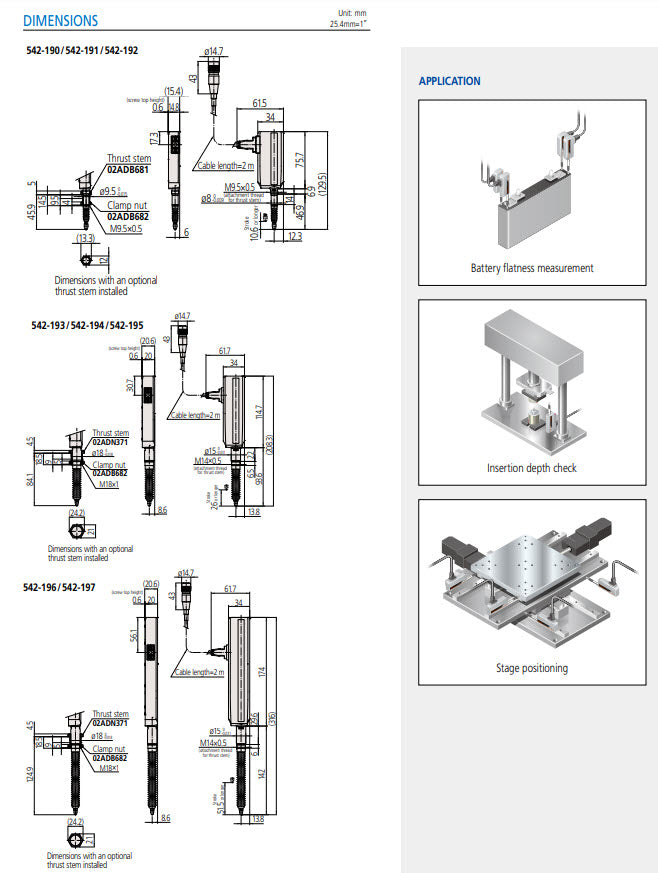

Features
Range:
0 - 10 mm
Accuracy:
(0.8+L/50) μm
L=measured length in mm
Measuring force:
1.4 N with spindle down,
1.3 N with spindle horizontal,
1.2 N with spindle upwards
Resolution:
0.0001 mm
Stem ∅:
8 mm
Cable length:
2 m
Mass:
260 g
Scale:
Photoelectric linear encoder
Max. response speed:
400 mm/s
Contact point:
Ø3 mm carbide ball, thread: M 2.5 x 0.45
Output signal:
90° phase difference, differential square wave (RS-422 equivalent)
Environmental conditions:
0°C to 50°C (20% to 80% rel. humidity, no condensation) °C
Bearing type:
Linear ball bearing
Signal pitch:
0.4 µm
Power supply:
DC 5 V ±0.2 V ripple voltage200 mVpp max
Minimum edge distance:
500 ns (1 μm type),
250 ns (0.5/0.1 μm type)
Scale reference point:
3 mm from the lowest rest point
(10 mm type),
5mm from the lowest rest point
(25/50 mm type)

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
