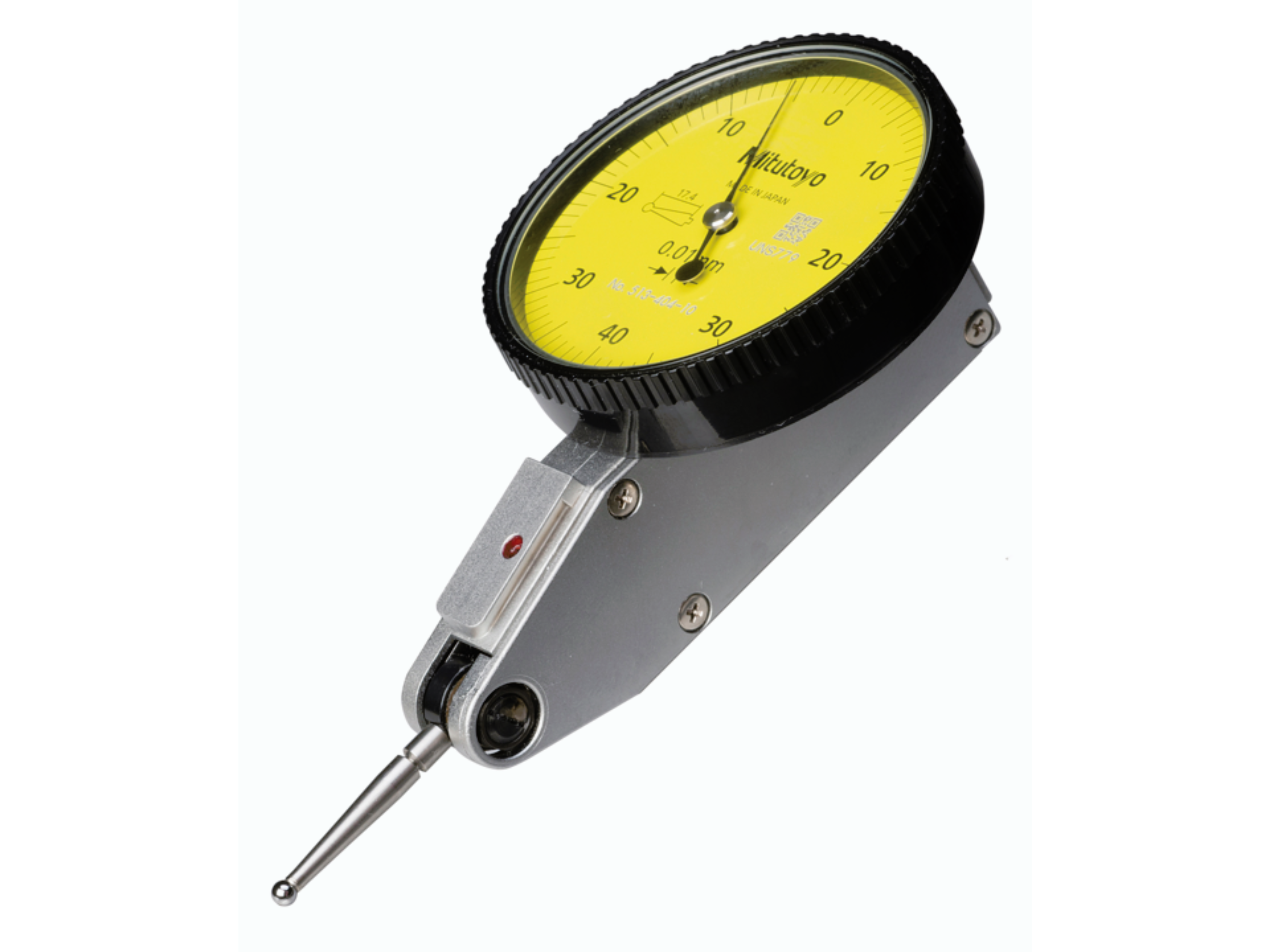

Lever-Type Dial Indicator 0.8mm 0.01mm Ø40mm 513-404-10T

Roll over image to zoom in Click on image to zoom

Lever-Type Dial Indicator 0.8mm 0.01mm Ø40mm 513-404-10T

Name: Lever-Type Dial Indicator 0.8mm 0.01mm Ø40mm 513-404-10T
Brand: Mitutoyo
SKU: 513-404-10T
Price: 114.98 EUR
Availability: InStock

MitutoyoSKU: 513-404-10T

Price:

€114.98 €157.50

Quantity:

This is a dial test indicator (lever type) set which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the crystal

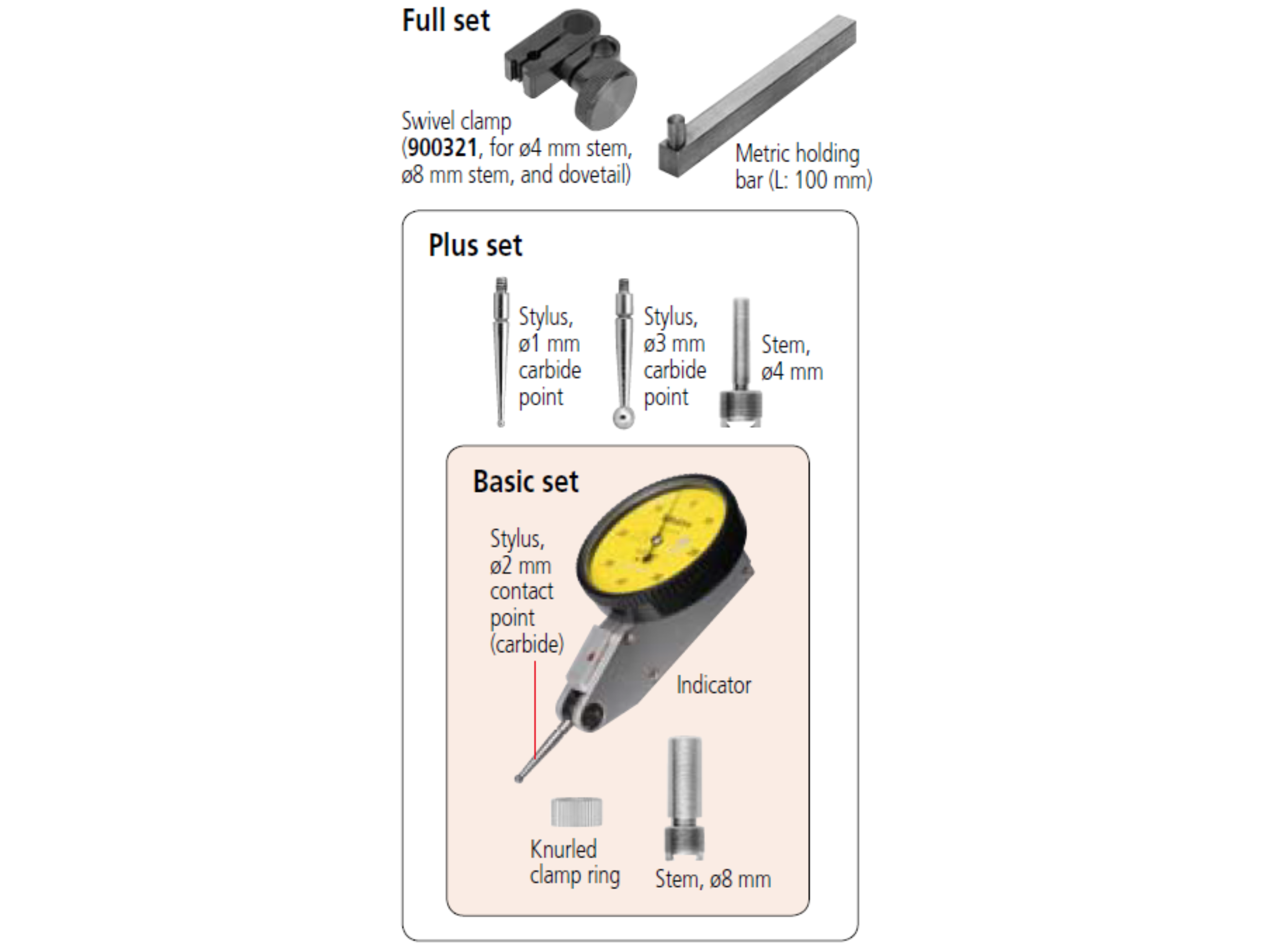

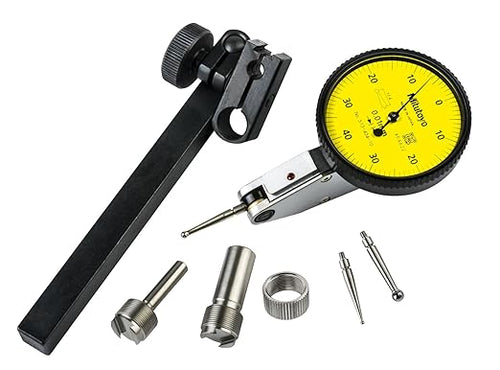

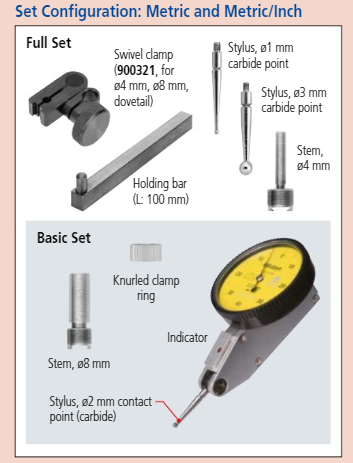

Set Consists of:
8mm & 4mm Stem
Swivel clamp fo 4mm & 8mm dovetail stem
Stylus 1mm diameter carbide point
Stylus 3mm diameter carbide point
100mm Holding Bar

Product Information

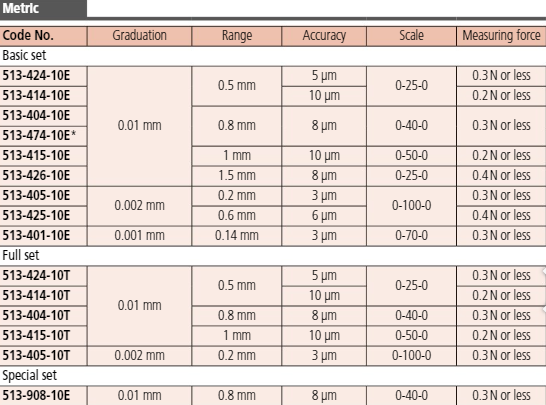

Part Number	513-404-10T
Measuring Range	0.8mm
Resolution	0.01mm
Graduation	.01mm
Accuracy	.008mm
Unit of Measurement	Metric
Measuring Force	≤0.3N
Type	Horizontal

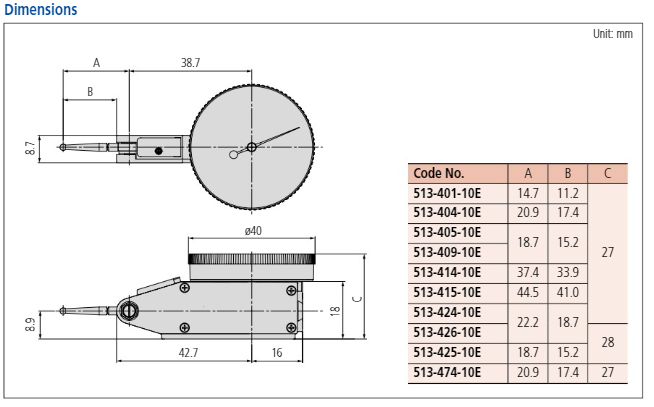

Length	20.9mm
Repeatability	.003mm

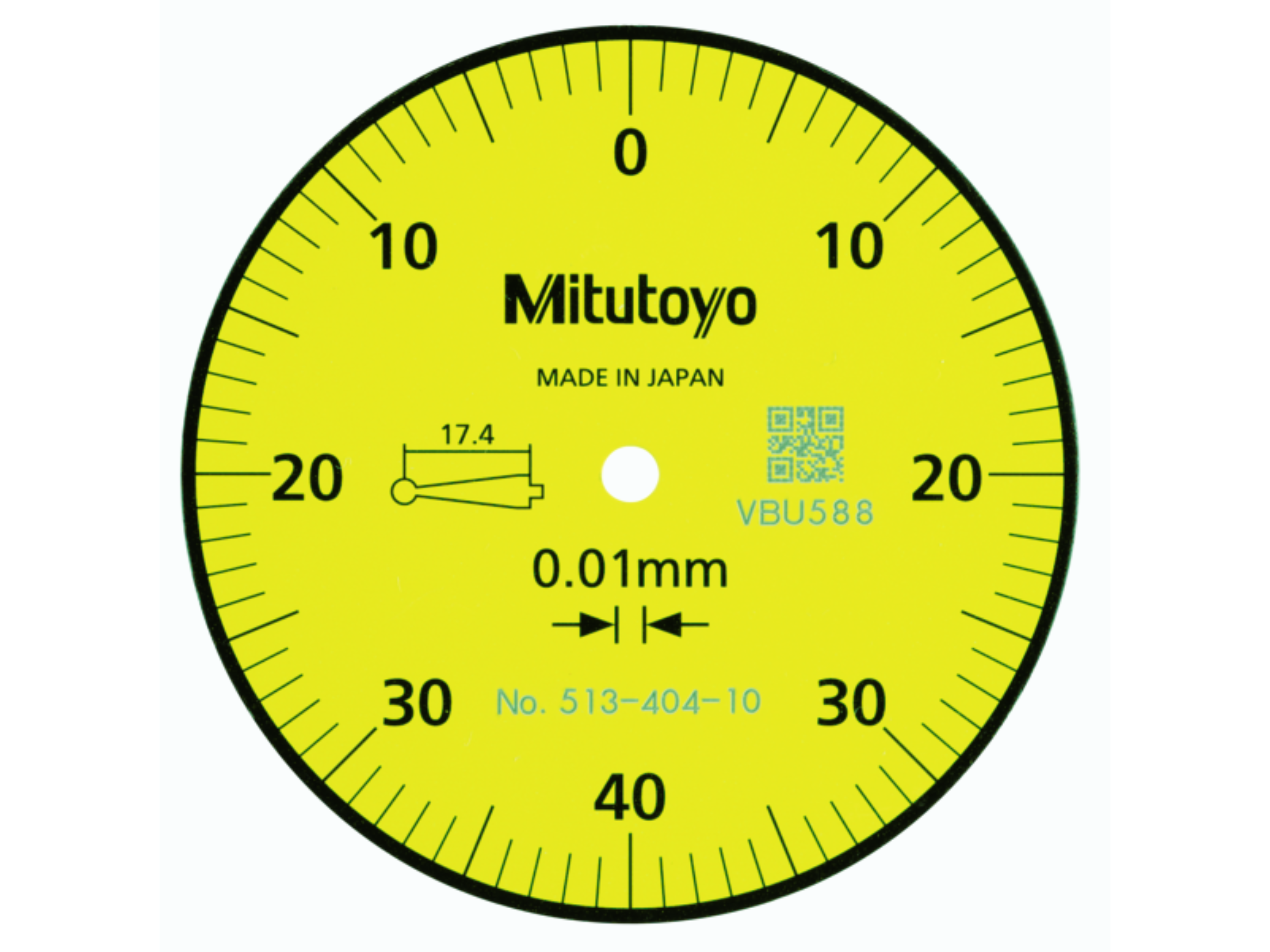

Dial Reading	0-40-0
Dial Face Size Ø	40mm
Hysteresis	.003mm
Stem	4mm
Calibration Code	CAL14 B1
Stem	4mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	Full set

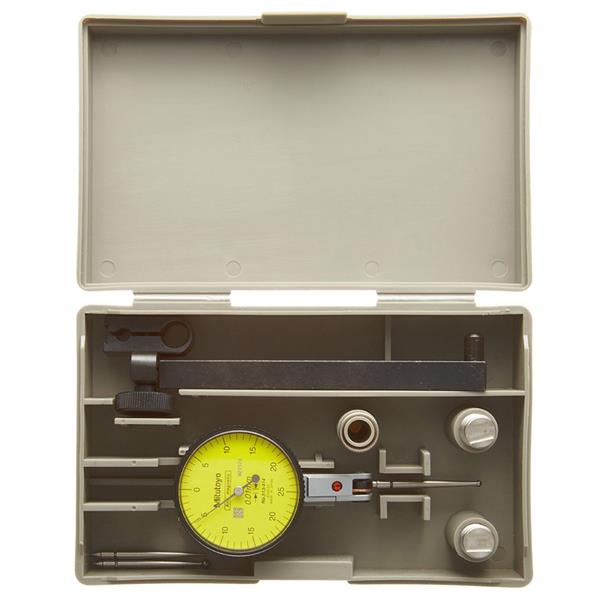

Delivered:	In a box with stem ø8/4 mm, stylus ø1/2/3 mm, swivel clamp / holding bar
Range:	0.8 mm
Dial reading:	0-40-0
Graduation:	0.01 mm
MPE any 10 scale divisions:	5 µm
MPE any 1/2 revolution:	6 µm
MPE measuring range:	8 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Measuring force:	0.01-0.3 N
Carbide stylus tip ø2 mm No.:	103006
Mass:	45 g
Contact point:	Thread M 1.7 x 0.35
