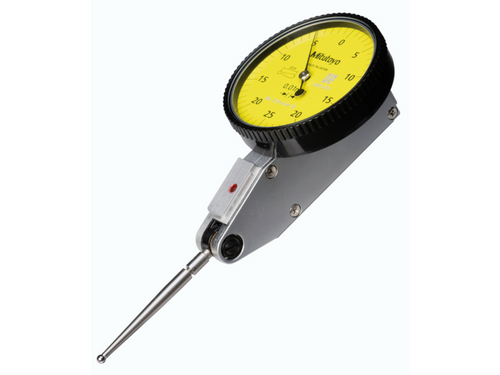

Lever-Type Dial Indicator 0.5mm 0.01mm Ø40mm 513-414-10A

Roll over image to zoom in Click on image to zoom

Lever-Type Dial Indicator 0.5mm 0.01mm Ø40mm 513-414-10A

Name: Lever-Type Dial Indicator 0.5mm 0.01mm Ø40mm 513-414-10A
Brand: Mitutoyo
SKU: 513-414-10A
Price: 122.28 EUR
Availability: InStock

MitutoyoSKU: 513-414-10A

Price:

€122.28 €167.50

Quantity:

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	513-414-10A
Measuring Range	0.5mm
Resolution	0.01mm
Graduation	.01mm
Accuracy	.005mm
Unit of Measurement	Metric
Measuring Force	≤0.2N
Type	Horizontal
Length	37.4mm
Repeatability	.003mm

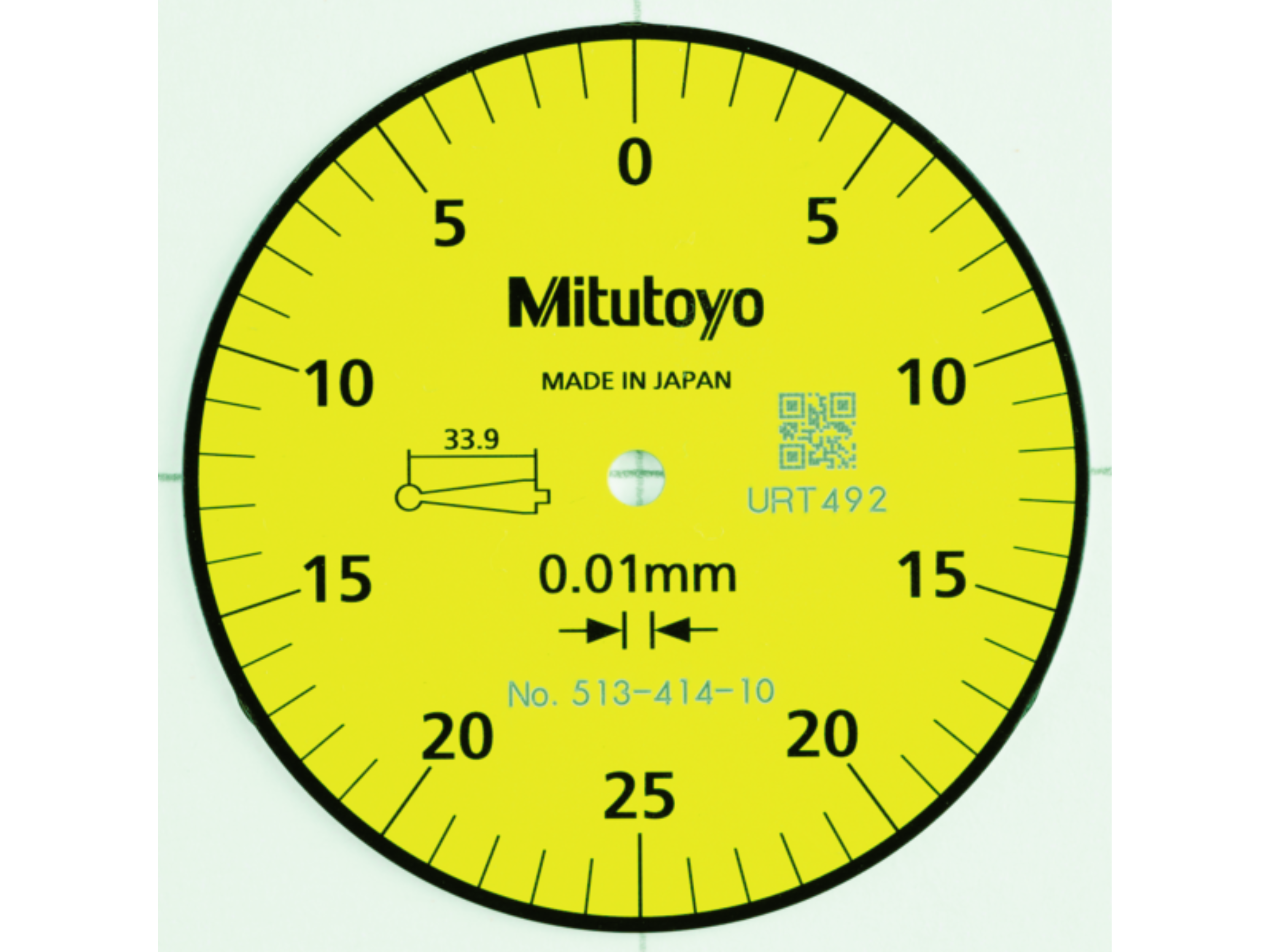

Dial Reading	0-25-0
Dial Face Size Ø	40mm
Hysteresis	.004mm
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric

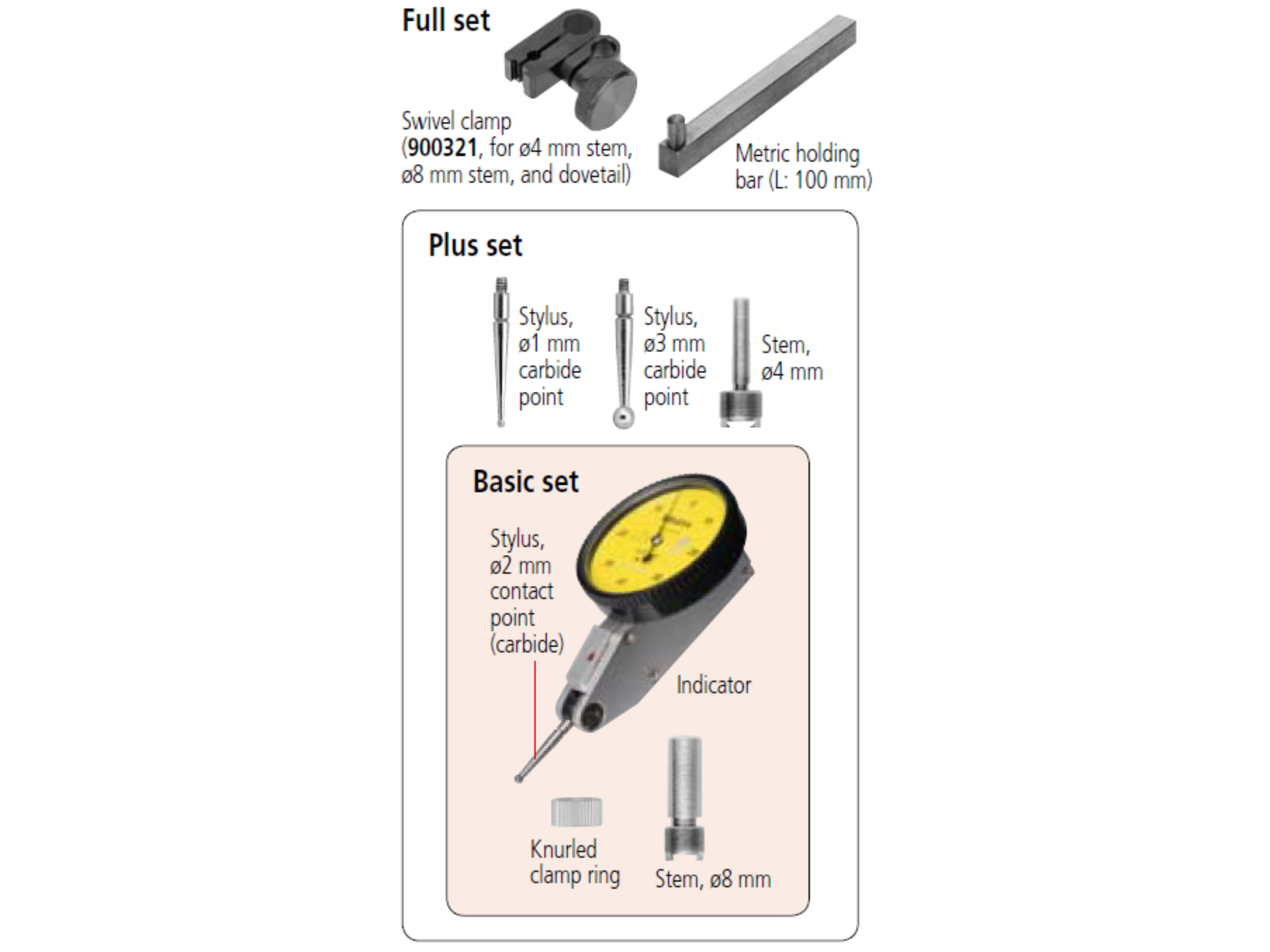

Type:	Plus set
Delivered:	In a box with stem ø8/4 mm, stylus ø1/2/3 mm
Range:	0.5 mm
Graduation:	0.01 mm
MPE any 10 scale divisions:	5 µm
MPE measuring range:	10 µm
H MPE (Hysteresis):	4 µm
R MPE (Repeatability):	3 µm
Carbide stylus tip ø2 mm No.:	131324
Mass:	45 g
Contact point:	Thread M 1.7 x 0.35
