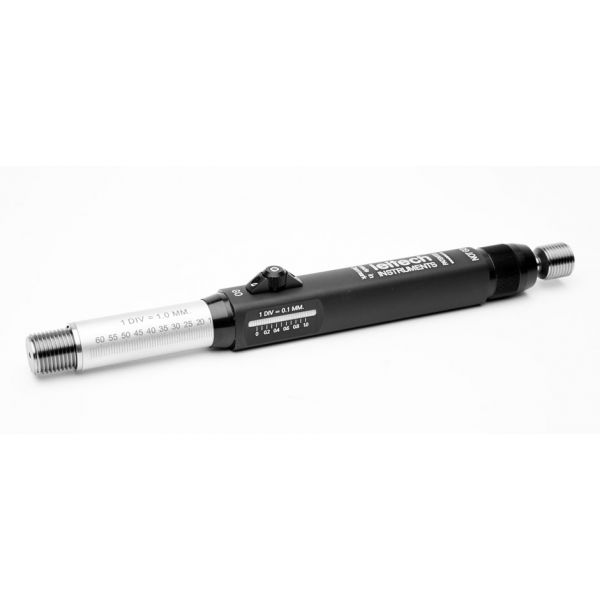

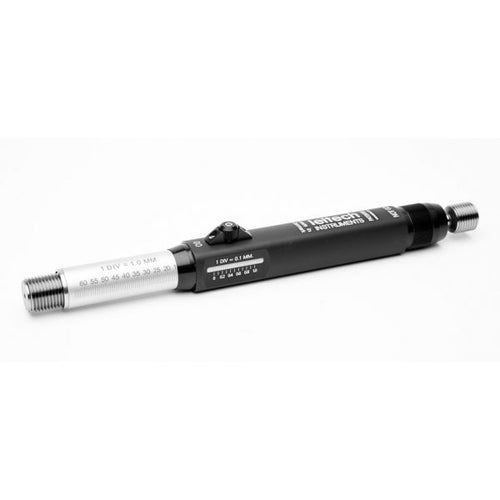

Leitech Combi Gauge Inch Hi Resolution

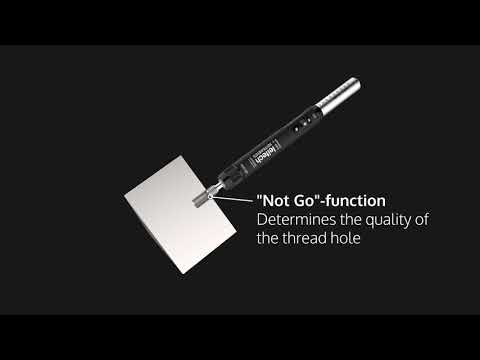

The Leitech Combi Gauge represents the basic patented idea in The System Leitech - the capability of measuring both thread quality and thread depth in one single operation.
When the Combi Gauge is screwed in to a thread hole, the scale divided telescope sleeve is pushed up in the handle. The thread depth can then be read directly on the sleeve.
Leitech High-Resolution Gauge, which has a measuring accuracy of 0.005".
If measurement of depth of the thread hole is not needed – we recommend a Traditional Leitech Gauge.
- Resolution: 0.025" per division. Max thread depth resolution is 1/2 division =0.012"
- Accuracy of the etching on the scale is +/-0.000040"
- Repeatability: Repeatable to the width of one line, which is 0.003" / 0.005" (3 to 5 thousandths)

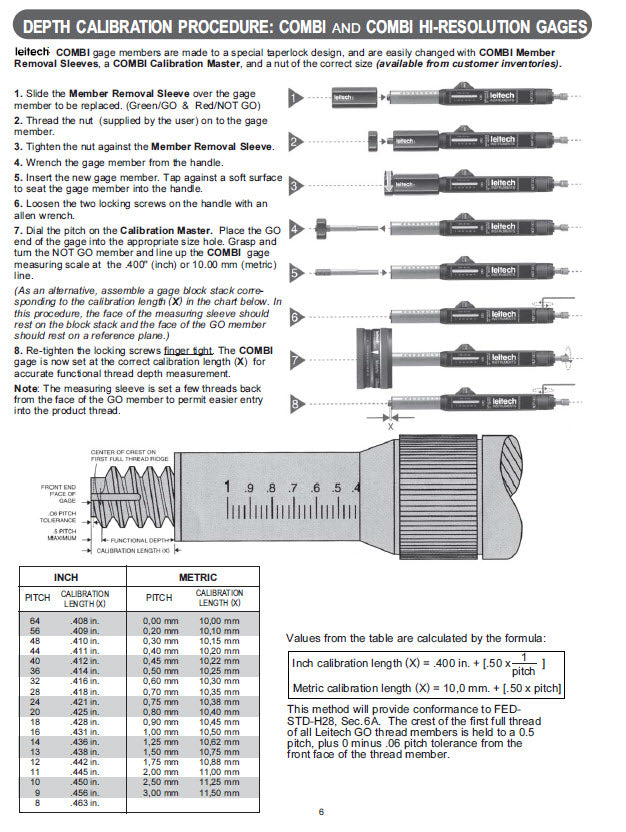

- Accuracy of Depth - Depends on depth calibration of the gauge, and operator proficiency.
| Class | 2B |
|---|---|
| Size | 3-48UNC |
| Standard | ANSI 2B |
| Measurement units | Inch |
| Measuring depth max. L.47 |
.47" |
No technical information is currently available.
No application information is currently available.
