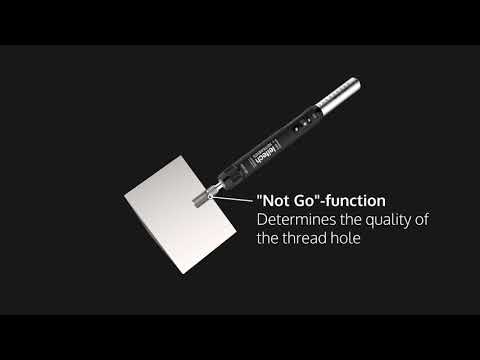

The Leitech Combi Gauge represents the basic patented idea in The System Leitech - the capability of measuring both thread quality and thread depth in one single operation.
When the Combi Gauge is screwed in to a thread hole, the scale divided telescope sleeve is pushed up in the handle. The thread depth can then be read directly on the sleeve.

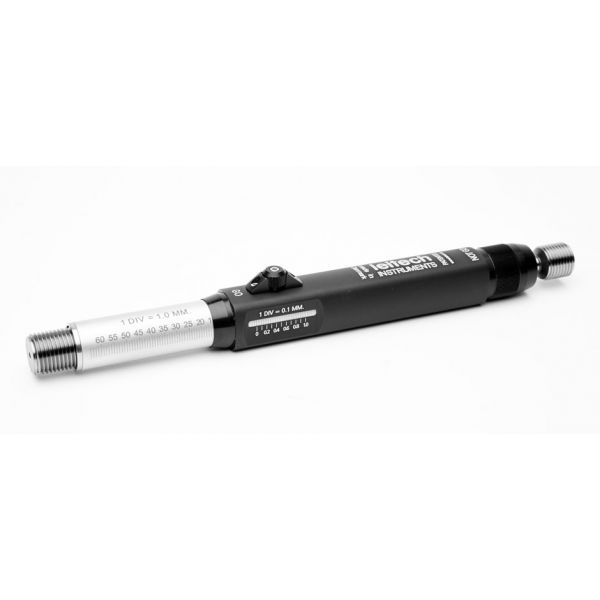

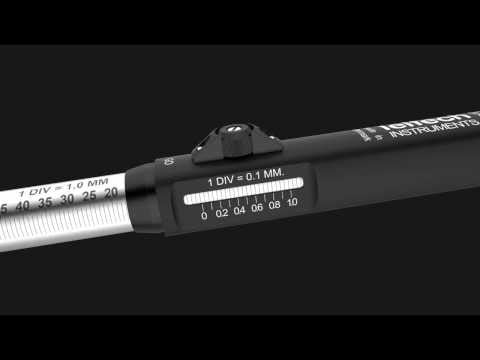

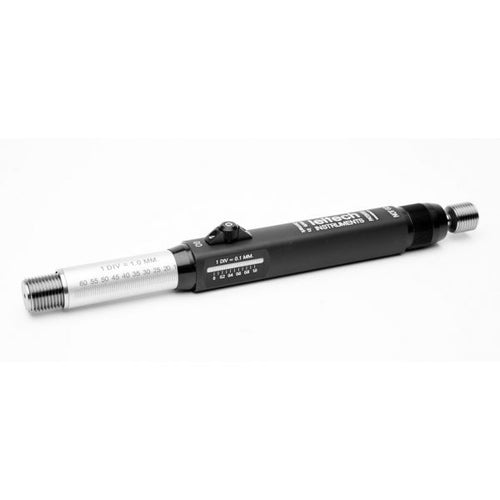

Leitech High-Resolution Gauge, which has a measuring accuracy of 0.1 mm
If measurement of depth of the thread hole is not needed – we recommend a Traditional Leitech Gauge.
- Accuracy of the etching on the scale is +/-1um (1micro-meter) (+/-0.000040").
- Repeatability: Repeatable to the width of one line, which is 0.003" / 0.005" (3 to 5 thousandths) / 0.08mm / 0.13mm.

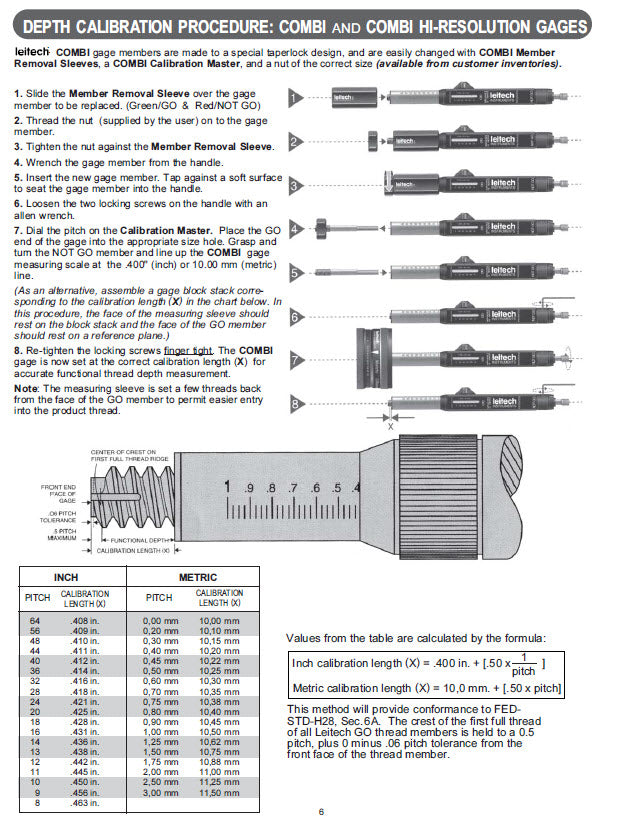

- Accuracy of Depth - Depends on depth calibration of the gauge, and operator proficiency.
| Class |
6H |
| Size |
M2.2 x .25 |
| International Standards |
ISO 6H DIN 13 |
| Measurement units |
Metric |
| Measuring depth max. L |
13mm |
