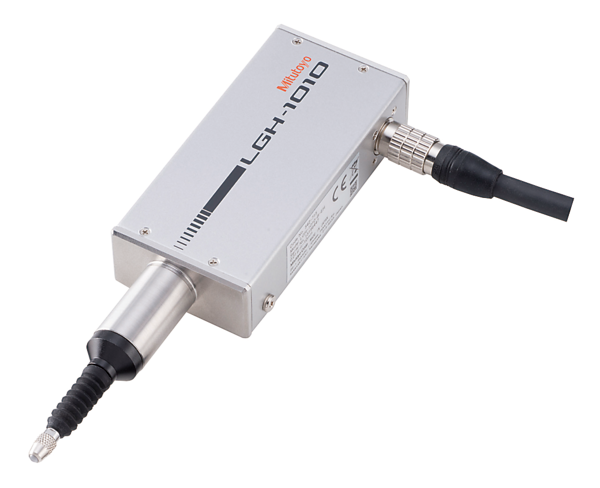

Laser Hologauge LGH-1010-B-EH 542-720D Resolution .005mm Accuracy .1µm Range 10mm x .4"

Mitutoyo SKU: 542-720D
List price: €17,282.00 Offer price: €13,394.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
This is a highly precise dial gauge that uses optical interference so you can measure
with unparallelled accuracy.
The Mitutoyo Laser Hologage offers you the following benefits:
  • Through optical interference of laser light through a diffraction grating it gives you an
    extremely precise holographic scale with 0.005 µm resolution.
  • The measuring head is very compact, enabling you to build it into various systems far less
    expensively than conventional laser technology.

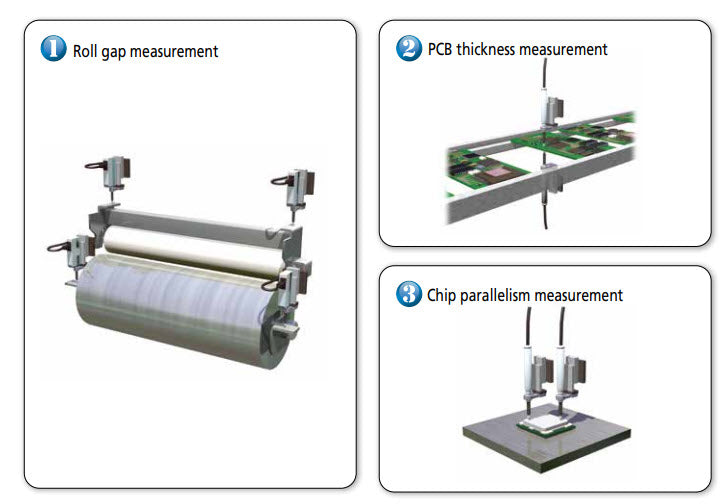

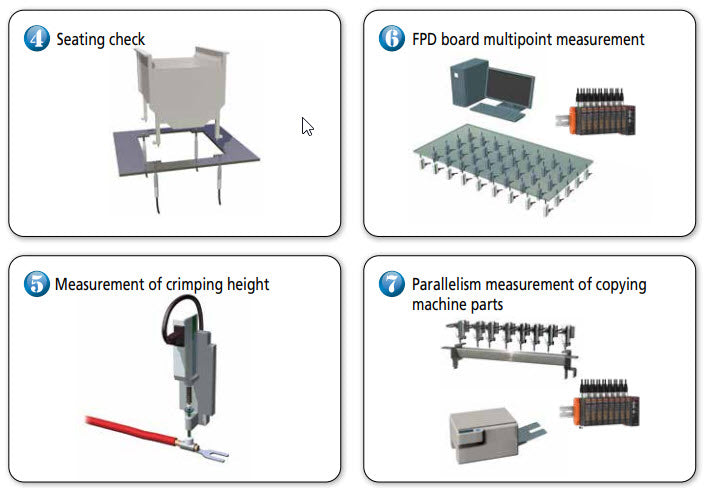

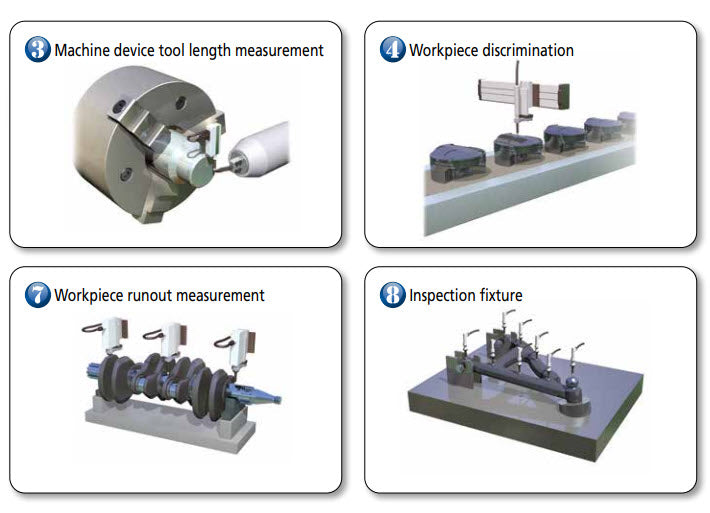

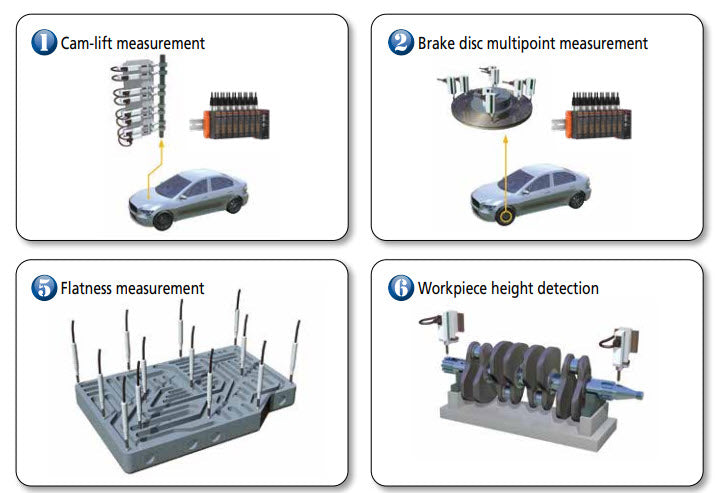

  • You can use the Laser Hologage for measuring extremely precise parts, as well as a transducer in ultra-precise positioning and control systems.

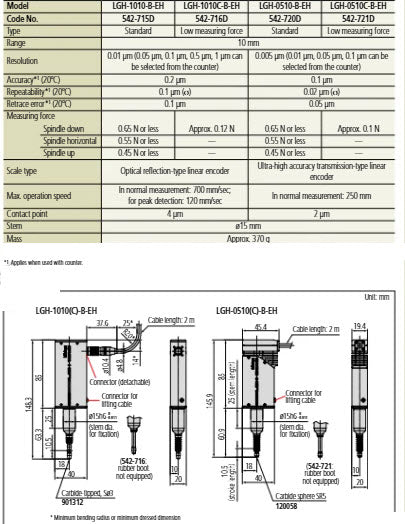

Features
Accuracy:
0,1µm
Measuring force:
0.65 N with spindle down, 0.55 N spindle horizontal, 0.45 N spindle upwards
Resolution:
0.005 µm
Stem ∅:
15 mm
Digimatic data output:
Yes
ON/OFF:
Yes
Repeatability:
0,02 µm
Scale:
Laser-hologram measurement sensor
Max. response speed:
250 mm/s
Contact point radius:
R=5 mm carbide
Bearing type:
High precision linear ball bearing
Mm / inch switching:
Yes
Environmental conditions:
10°C to 30°C
(30% to 70% rel. humidity, no condesation) °C
Extern tolerance set
(when a PC is used):
Yes
Delivered:

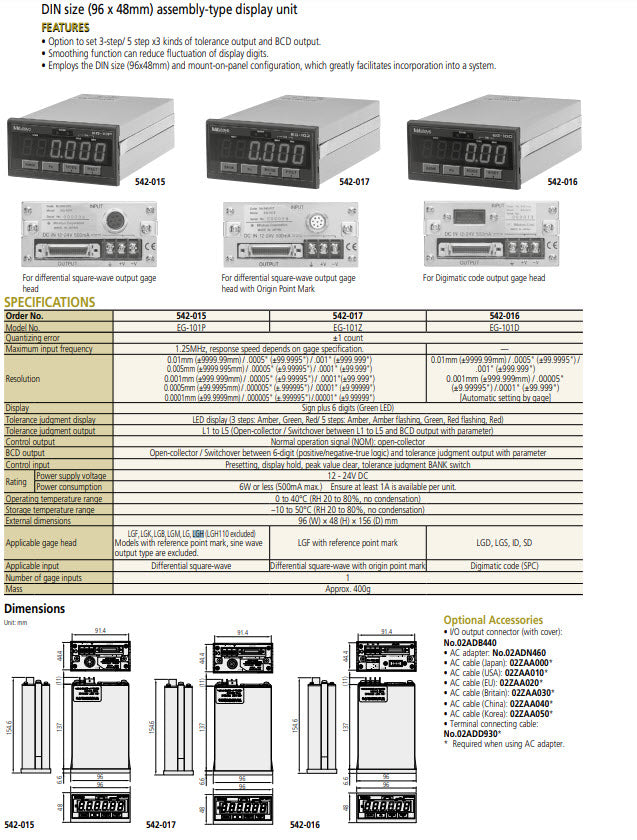

With Display Unit
