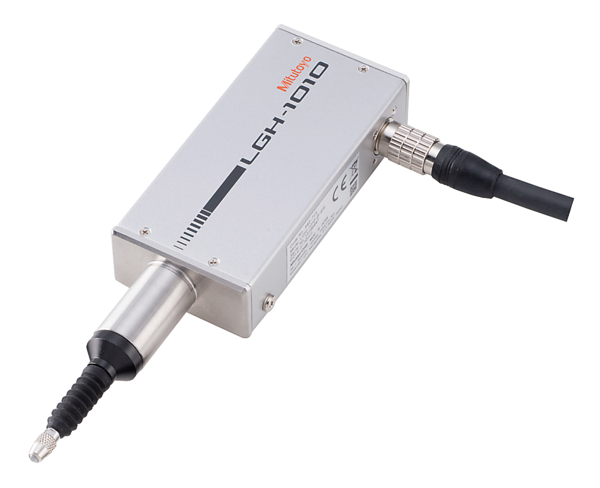

Laser Hologauge LGH-1010-B-EH 542-716D Low Measuring Force

Mitutoyo SKU: 542-716D
List price: €8,353.00 Offer price: €6,474.00 Excluding VAT
This is a highly precise dial gauge that uses optical interference so you can measure with unparallelled accuracy.
The Mitutoyo Laser Hologage offers you the following benefits:
  • Through optical interference of laser light through a diffraction grating it gives you an extremely precise holographic scale with 0.00001mm resolution.
  • You can use the Laser Hologage for extremely precise measurements, as well as a transducer in ultra-precise positioning and control systems.

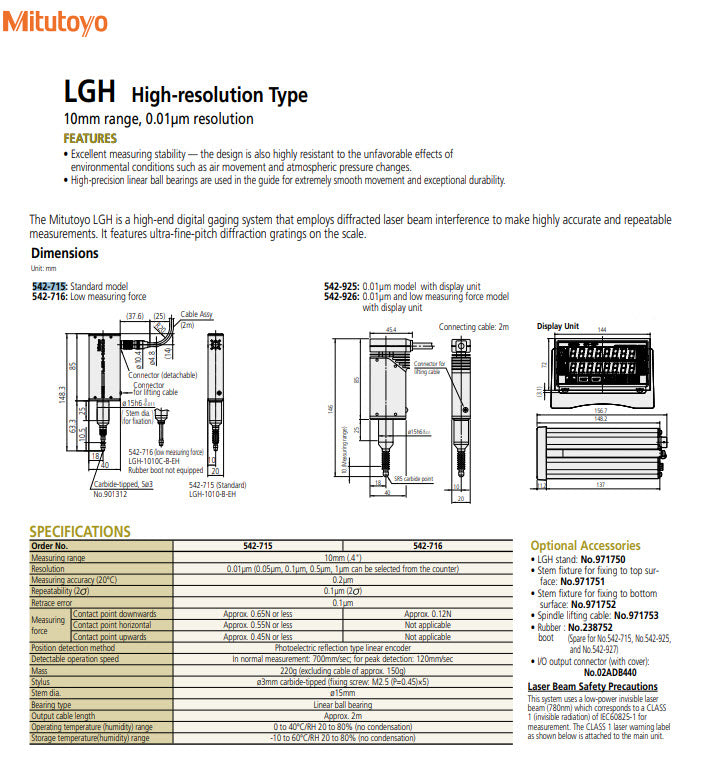

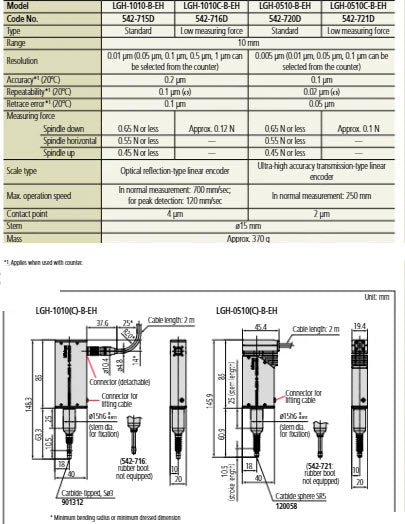

Specification
Accuracy:
0,2 µm
Measuring force:
0.12 N
Resolution:
0.01 µm
Stem ∅:
15 mm
Repeatability:
0,1 µm
Scale:
Laser-hologram measurement sensor
Max. response speed:
700 mm/s
Contact point:
Ø 3 mm carbide ball,
thread: M 2.5 x 0.45
Output signal:
90° phase difference, differential square wave (RS-422A equivalent)
Bearing type:
High precision linear ball bearing
Signal pitch:
4 µm
Environmental conditions:
0C to 40°C (20% to 80% rel. humidity, no condensation) °C
Delivered:

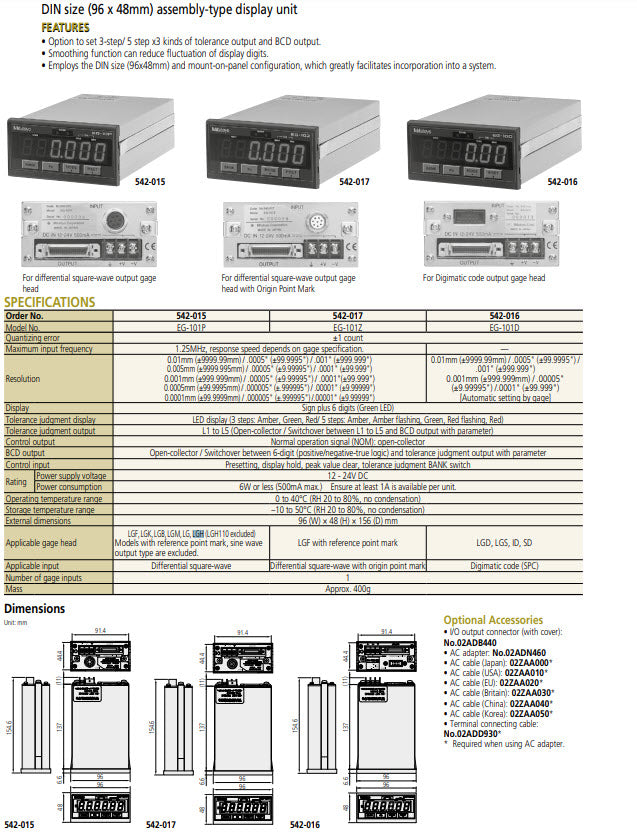

With Display Unit
