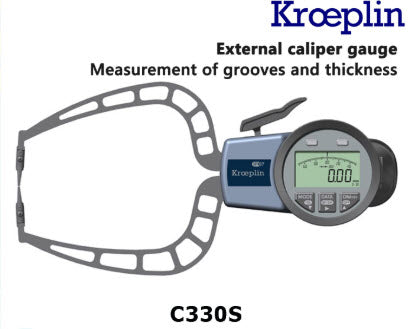

Kroeplin Metric External Caliper Gauge 0-30mm, 0.005mm, C330S

Roll over image to zoom in Click on image to zoom

Kroeplin Metric External Caliper Gauge 0-30mm, 0.005mm, C330S

Name: Kroeplin Metric External Caliper Gauge 0-30mm, 0.005mm, C330S
Brand: Kroeplin
SKU: C330S
Price: 450.0 EUR
Availability: InStock

KroeplinSKU: C330S

Price:

€450.00

Quantity:

Type	C330S
Display mm / inch	mm + inch
Application	External measurement
Measuring span Mes	30 mm
Measuring range Meb	0 – 30 mm
Range of indication Azb	0 – 30,5 mm
Numerical interval Zw	0,02 / 0,05mm
Max. permissible errors G	0,04 mm
Repeatability limit r	0,02 mm
Measuring force F min.	0,9 N
Measuring force F max.
Type of measuring contact movable
Measuring contact movable Hb	30 mm
Type of measuring contact fixed
Measuring contact fixed Hf	30 mm
Measuring depth max. L	116 mm
Weight	430 g
Protection class	IP67

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	C330S
Measuring Range	0-10mm
Graduation	.005mm
Accuracy	.15mm
Unit of Measurement	Metric
Display Type	Analogue
Data Output	No
IP Rating	IP65
Measuring Force	0-8-1.2N
Type	External Groove Gauge
Repeatability	.005mm
Application	External measurement
Measuring Contacts	Carbide Ball 1.5mm diameter
Measurement L	35mm
Measurement B	18.6mm
Measurement A	19.1mm
Calibration Code	CAL22 B1
