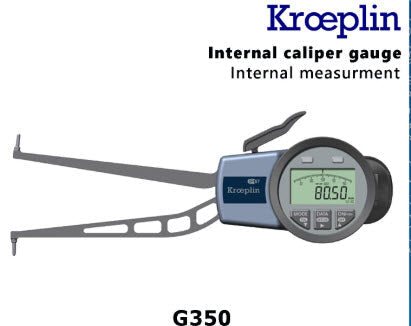

Electronic internal measuring gauge
Caliper Gauge Internal measurement
- Measuring range Meb: 50 – 80 mm
- Numerical interval Zw: 0,02 / 0,05 mm
- Measuring depth L max.: 132 mm
Display mm / inch
|
mm + inch |
| Application |
Internal measurement |
| Measuring span Mes |
30 mm |
Measuring range Meb
|
50 – 80 mm |
| Range of indication Azb |
49,5 – 80,5 mm |
| Numerical interval Zw |
0,02 / 0,05 mm |
| Max. permissible errors G |
0,04 mm |
| Repeatability limit r |
0,02 mm |
| Measuring force F min. |
1,2 N |
| Measuring force F max. |
7 N |
| Type of measuring contact movable |
HM-Ball Ø 2 mm |
| Measuring contact movable Hb |
8,5 mm |
| Type of measuring contact fixed |
HM-Ball Ø 2 mm |
| Measuring contact fixed Hf |
8,5 mm |
| Measuring depth max. L |
132 mm |
| Weight |
370 g |
| Protection class |
IP67 |
