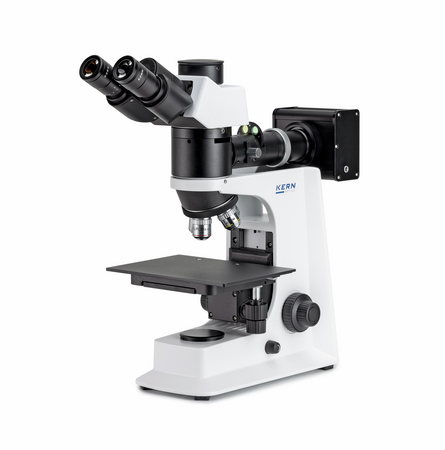

Kern Metallurgical microscope OKM 173 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x
Roll over image to zoom in Click on image to zoom
Kern Metallurgical microscope OKM 173 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x

Kern Metallurgical microscope OKM 173 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x

Kern SKU: OKM 173
Price: €2,450.00 Excluding VAT

  • Applications

    Field of application / Area of application

    • Metallurgy, material testing, quality assurance

    Applications and samples

    • Opaque and thick samples, workpieces (surfaces, fold lines, coatings)

  • Description

    • The KERN OKM is an excellent metallurgical reflected light microscope, e.g. for surface quality testing of raw materials and finished products in industry
    • The strong, continuously dimmable 5 W-LED iillumination unit ensures excellent, high-contrast images
    • The illumination unit with an integrated 5-slot filter wheel for blue, green, yellow, grey and blank means that you can quickly change the colour filter for different contrast views.
    • A large mechanical stage for reflected illumination applications is configured as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing of your sample
    • A simple polarising unit (analyser and polariser) is included with delivery
    • A large selection of different eyepieces and objectives is also available
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

  • Technical Data

    Optical system Infinity
    Tube type Trinocular
    Ocular magnifications 10 x
    Ocular visual field 20 mm
    Nosepiece screw-in locations 4
    Illuminance Reflected light
    Illumination type transmitted light None
    Illumination intensity incident light 5 W
    Illumination type incident light LED
    Focusing mechanism coaxial coarse and fine drive
    Fine drive minimum 0,002 mm
    Dimension (W×D×H) 440×200×460 mm
    GTIN/EAN number 4045761490017

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
