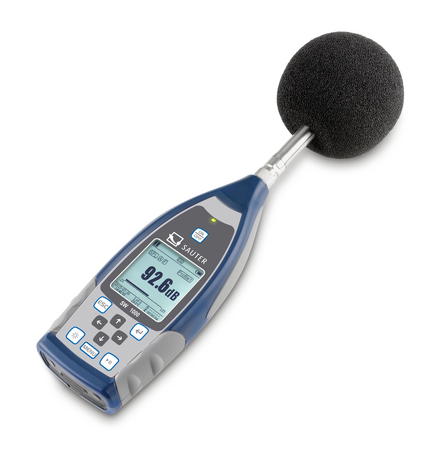

Kern Sound Level Meter SW 2000 Measuring range Sound 25 dB – 136 dB Readability sound [d] (dB) 0,1 dB
Roll over image to zoom in Click on image to zoom
Kern Sound Level Meter SW 2000 Measuring range Sound 25 dB – 136 dB Readability sound [d] (dB) 0,1 dB

Kern Sound Level Meter SW 2000 Measuring range Sound 25 dB – 136 dB Readability sound [d] (dB) 0,1 dB

Kern SKU: SW 2000
Price: €1,210.59 Excluding VAT

Description

  • Ideal for measurements for workplaces outdoor, e.g. at airports, on building sites, in road traffic etc. with wide frequency access
  • Modern microcontroller architecture for increased stability and accuracy
  • A specially-developed algorithm permits a compliant dynamic range of > 122 dB
  • Three profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weighting
  • LN statistics and display of the graph showing the progression of time
  • User-defined integral interval measurement up to a maximum of 24 hours is possible
  • Frequency weighting (filter) A, B, C, Z
  • Time interval during measurement: F (fast), S (slow), I (pulse)
  • Freely-definable limits for the output of an optical alarm signal
  • Peak Hold function to capture peak value
  • Octave function for targeted sound analysis, can be expanded to 1/3 octave through the purchase of a licence
  • TRACK function with graphic display of a measurement
  • Calibration mode (with optional calibrator)
  • Trigger mode: external start/stop of measurement via 3,5 mm connector
  • Automatic measurement for timer function is possible
  • Operating languages: EN, DE, FR, ES, PT
  • Option of fitting a stand on the rear of the housing, ¼" thread
  • Delivery in robust transport case

Technical Data

Measuring range Sound 25 dB – 136 dB
Readability sound [d] (dB) 0,1 dB
Units dB
Sound level measuring modes Leq, Lcpeak
Sound level methods of evaluation A, C, Z, B
Frequency range 20 Hz – 12,5 kHz
Memory function
Hold function
Peak function
Limit-setting function
Microphone sensitivity 40 mV/Pa
Battery 4×1.5 V AA
Material housing plastic
Dimensions completely mounted (W×D×H) 300×80×36 mm
Product family SW

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
