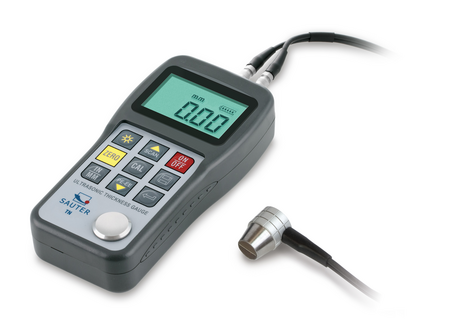

KERN® Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm
Roll over image to zoom in Click on image to zoom
KERN® Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm

KERN® Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm

Kern SKU: TN 80-0.01US
Price: €801.29 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
  • External measuring head
  • Data interface USB standard
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internal memory for up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Scope of delivery: Operating instructions, batteries, external measuring head (∅ 6 mm) and ultrasound contact gel
  • Delivered in a robust carrying case

Technical Data

Material thickness pulse-echo [Max] (mm) 80 mm
Material thickness pulse-echo [Min] (mm) 0,75 mm
Measuring range pulse-echo 0,75 mm – 80 mm
Readability material thickness [d] (mm) 0,01 mm
Tolerance (% of [Max]) 0,5%
Units mm, inch
Speed of sound [Max] (m/s) 9999 m/s
Speed of sound [Min] (m/s) 1000 m/s
Speed of sound 1000 m/s – 9999 m/s
Measuring head measuring frequency 7 MHz
Battery 2×1.5 V AA
Material housing plastic
Dimensions completely mounted (W×D×H) 150×74×32 mm
Interfaces USB-Device
Cable length 0,9 m
