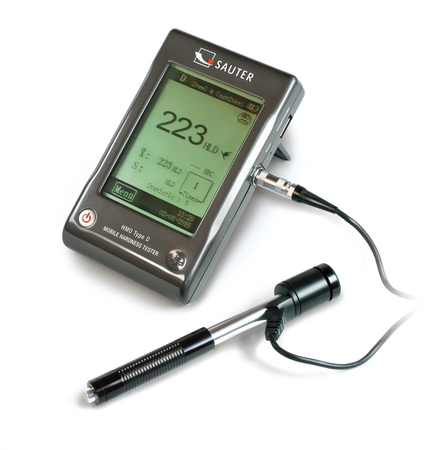

KERN® Leeb hardness tester HMO Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC, MPa
Roll over image to zoom in Click on image to zoom
KERN® Leeb hardness tester HMO Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC, MPa

KERN® Leeb hardness tester HMO Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC, MPa

Kern SKU: HMO
Price: €2,219.41 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

  • Description

    • LCD touchscreen with touch pen
    • Automatic recognition of the impact (rebound) sensor connected to the SAUTER HMO
    • Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMO offers the highest level of mobility and flexibility
    • All measurement directions possible (360°) by defining the direction of impact on the device
    • USB socket for connection to the printer and charging the batteries
    • Hardness test block for calibration included
    • Internal data memory for up to 500 values
    • Mini statistics function: Displays the measure value, the average value, the difference between the maximum and minimum values, date and time
    • Measurement value display: (B and C), Vickers (HV), Brinell (HB), Leeb (HL), tensile strength (MPa)
    • Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
    • Delivered in a robust carrying case

Technical Data

Measuring range Leeb 170 – 960
Readability [d] hardness (Hlx) 1
Tolerance (% of [Max]) 1%
Units HL, HV, HB, HRB, HRC, MPa
Hardness scales HLD
Test object thickness [Min] 3 mm
Test object minimum weight [Min] 3 kg
Memory function
Statistic function
Function for averaging
Material housing plastic
Measuring probe diameter 2 cm
Measuring probe length 14,6 cm
Test block inclusive
Product family HMO
GTIN/EAN number 4045761139664
