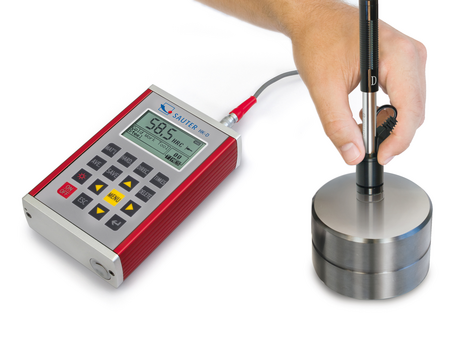

KERN® Leeb hardness tester HK-D Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC
Roll over image to zoom in Click on image to zoom
KERN® Leeb hardness tester HK-D Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC

KERN® Leeb hardness tester HK-D Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC

Kern SKU: HK-D
Price: €1,637.18 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

  • Description

    • External impact sensor standard (Type D)
    • Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HK-D offers the highest level of mobility and flexibility
    • All measurement directions possible (360°) thanks to an automatic compensation function
    • Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB
    • Internal memory for up to 600 data groups, with up to 32 values per group forming the average value of the group
    • Mini statistics function: displays the measured result, the average value, the impact direction, date and time
    • Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
    • Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
    • Matrix display: Backlit multi-function display for all relevant functions at a glance
    • Robust metal housing
    • Delivered in a robust carrying case



Technical Data

Measuring range Leeb 170 – 960
Readability [d] hardness (Hlx) 1
Tolerance (% of [Max]) 1%
Units HL, HV, HB, HRB, HRC
Hardness scales HLD
Test object thickness [Min] 3 mm
Test object minimum weight [Min] 2 kg
Battery 2×1.5 V AA
Memory function yes
Statistic functiony yes
Function for averaging yes
Interfaces USB-Device
Material housing cast aluminium
Measuring probe diameter 2 cm
Measuring probe length 14,6 cm
Product family HK
GTIN/EAN number 4045761139473

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
